Overview

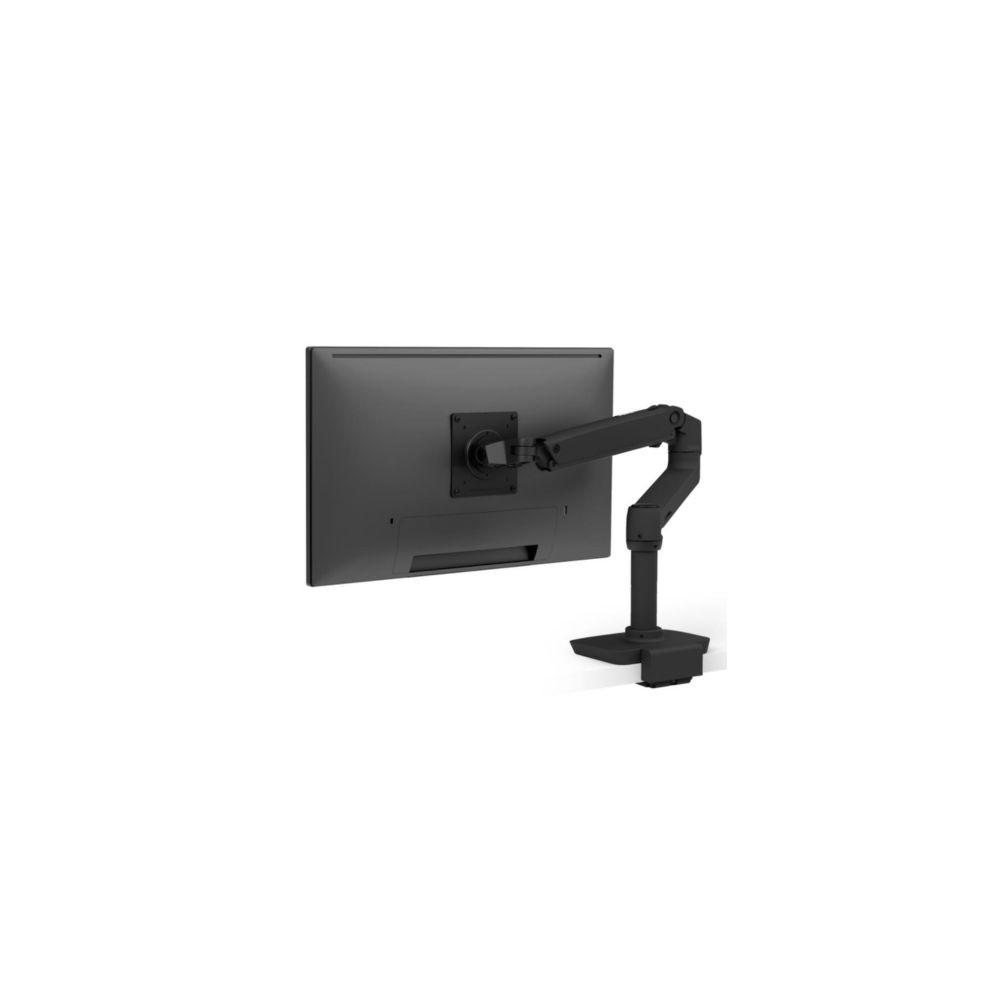

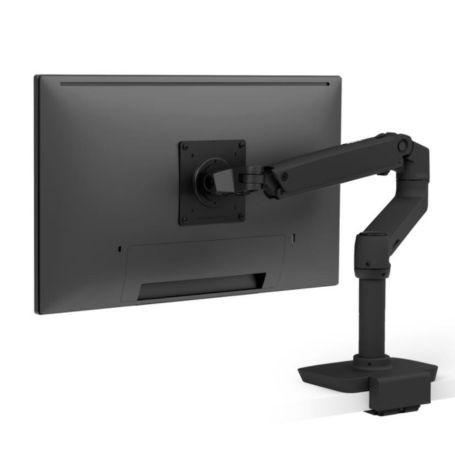

The Ergotron 45-626-224 is an LX Desk Monitor Arm in matte black with a low-profile top-mount C-clamp. It provides adjustable positioning for a single monitor while helping conserve usable desk space.
Monitor Compatibility
The arm supports displays up to 34 inches with a load capacity of 7–25 lb (3.2–11.3 kg). It is compatible with VESA 75 × 75 mm and 100 × 100 mm mounting patterns.
Adjustment and Movement
The LX arm provides 13 inches (33 cm) of height adjustment, 75° tilt, 360° pan, and 360° monitor rotation. Its Constant Force technology supports smooth monitor positioning, while the arm can fold back into a compact position when not in use.
Mounting
The included low-profile top-mount C-clamp is designed for desk surfaces measuring 25–35 mm (0.98–1.37 inches) thick. The arm assembly includes the monitor arm, extension, base, clamp, 7-inch pole, and attachment hardware.
Key Features
- Ergotron LX desk monitor arm in matte black
- Supports monitors up to 34 inches and 25 lb
- VESA 75 × 75 mm and 100 × 100 mm compatible
- 13-inch height adjustment with 75° tilt and 360° movement
- Low-profile top-mount C-clamp for 25–35 mm desk surfaces
Applications
The 45-626-224 is suitable for office desks, workstations, and other desktop environments where adjustable single-monitor positioning and a space-saving mounting solution are required.
DC Supplies Product Note
The exact MPN 45-626-224 identifies the matte black LX Desk Monitor Arm with the 25–35 mm low-profile top-mount C-clamp. Before installation, verify the monitor's VESA pattern, weight, and the thickness of the desk surface.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-626-224 |
| Product Type | Desk Monitor Arm |
| Product Series | LX |
| Color | Matte Black |
| Maximum Screen Size | 34 inches |
| Load Capacity | 7–25 lb (3.2–11.3 kg) |
| VESA Mounting Pattern | 75 × 75 mm / 100 × 100 mm |
| Height Adjustment | 13 inches (33 cm) |
| Tilt | 75° |
| Pan | 360° |
| Rotation | 360° |
| Desk Surface Thickness | 25–35 mm (0.98–1.37 in) |
| Mounting Method | Low-profile top-mount C-clamp |
| Material | Aluminum |
| Product Weight | 7.7 lb (3.5 kg) |
| Warranty | 10 years |
| UPC | 698833083514 |
FAQs
What is the Ergotron 45-626-224?
It is an LX Desk Monitor Arm in matte black with a low-profile top-mount C-clamp.
What size monitor does it support?
The arm supports a single display up to 34 inches with a load range of 7–25 lb (3.2–11.3 kg).
Which VESA patterns are supported?
The arm supports 75 × 75 mm and 100 × 100 mm VESA mounting patterns.
What desk thickness is supported?
The included low-profile clamp is designed for desk surfaces measuring 25–35 mm thick.
How much adjustment does the arm provide?
The arm provides 13 inches of height adjustment, 75° tilt, 360° pan, and 360° rotation.
What warranty does Ergotron provide?
The 45-626-224 is listed with a 10-year limited manufacturer warranty.
