Overview

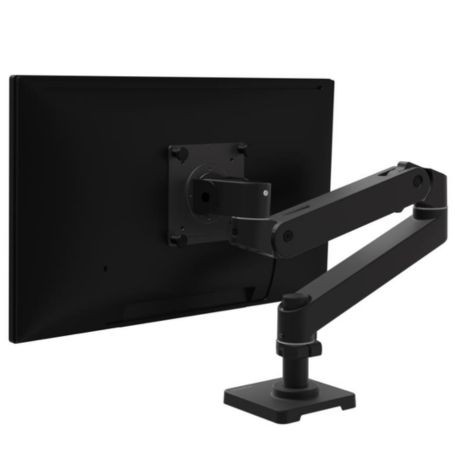

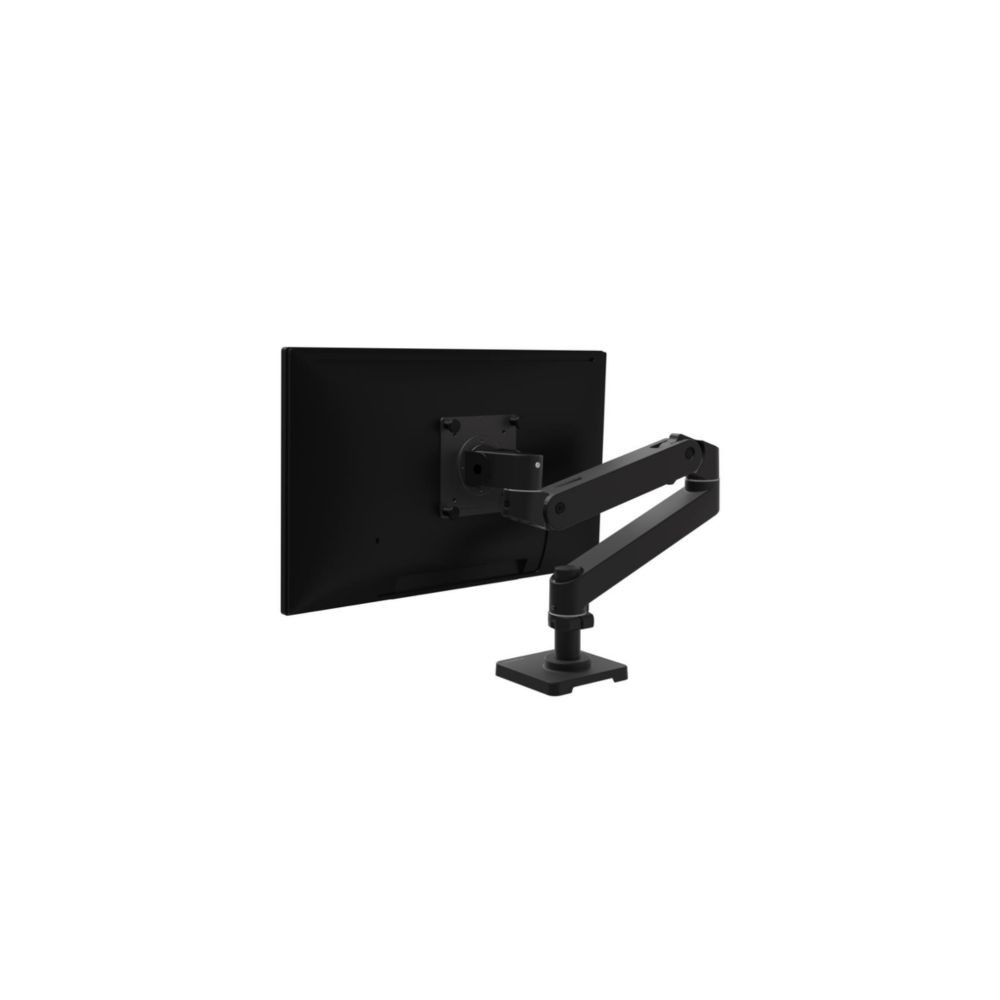

The Ergotron 45-682-292 LX Pro Desk Monitor Arm is a matte black single-monitor desk mount designed for flexible display positioning in office and workstation environments. The articulated LX Pro arm supports displays up to 34 inches and uses Constant Force™ technology for smooth height and viewing adjustments.
Monitor Support and Adjustment
The arm supports monitors weighing 4–22 lb (1.8–10 kg) and provides 13 inches (33 cm) of lift. The monitor can tilt through an 85° range, with 70° upward and 15° downward movement. The monitor pivot provides 360° rotation, while the arm provides broad side-to-side positioning for adjusting the display to the user's preferred viewing position.
Desk Mounting and Reach
The standard two-piece desk clamp attaches to surfaces from 0.4 to 2.4 inches (10–60 mm) thick. The articulated arm provides up to 25 inches (64 cm) of extension. An integrated rotation stop on the extension can be engaged to limit side-to-side arm movement and help prevent contact with a nearby wall or other obstruction.
VESA Compatibility
The monitor pivot uses VESA MIS-D mounting compatibility, supporting common 75 x 75 mm and 100 x 100 mm mounting patterns. The arm is intended for compatible displays that remain within the stated 4–22 lb weight range.
Key Features
- Single-monitor LX Pro desk arm in matte black
- Supports displays up to 34 inches and 4–22 lb (1.8–10 kg)
- 13-inch (33 cm) lift for adjustable monitor height
- 85° tilt and 360° monitor rotation for flexible viewing
- Up to 25 inches (64 cm) of extension with integrated rotation stop
Applications
The LX Pro Desk Monitor Arm is suited to office desks, professional workstations, home work areas, and other single-monitor installations where adjustable display positioning is useful. Its compact desk-mounted design can help reclaim space below the monitor while allowing the screen to be repositioned as needed.
DC Supplies Product Note
Confirm the monitor's actual weight and VESA pattern before installation. The 45-682-292 supports 4–22 lb displays and uses the standard two-piece desk clamp for surfaces between 0.4 and 2.4 inches thick.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-682-292 |
| Product Type | Single Monitor Desk Arm |
| Series | LX Pro |
| Configuration | Single Monitor |
| Color | Matte Black |
| Typical Display Size | Up to 34 inches |
| Monitor Capacity | 4–22 lb (1.8–10 kg) |
| Lift | 13 inches (33 cm) |
| Tilt | 85° (70° up / 15° down) |
| Arm Pan | 360° |
| Monitor Rotation | 360° |
| Maximum Extension | 25 inches (64 cm) |
| VESA Standard | MIS-D |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| Pole Height | 5 inches |
| Desk Clamp Range | 0.4–2.4 inches (10–60 mm) |
| Mounting Type | Two-piece desk clamp |
| Construction | Aluminum |
| Product Weight | 3.8 kg |
| Warranty | 10 years |
| GTIN | 00698833091588 |
Frequently Asked Questions
What monitors can the Ergotron 45-682-292 support?
The arm supports displays up to 34 inches with a weight capacity of 4–22 lb (1.8–10 kg).
What VESA mounting patterns are supported?
The monitor pivot supports VESA MIS-D mounting patterns including 75 x 75 mm and 100 x 100 mm.
How much height adjustment does the arm provide?
The LX Pro Desk Monitor Arm provides 13 inches (33 cm) of lift.
Can the monitor be rotated to portrait orientation?
Yes. The monitor pivot provides 360° rotation, allowing compatible displays to be positioned in landscape or portrait orientation.
What desk thickness can the standard clamp accommodate?
The two-piece desk clamp attaches to desk surfaces from 0.4 to 2.4 inches (10–60 mm) thick.
What is included with the 45-682-292?
The standard configuration includes the arm, extension, monitor pivot, two-piece desk clamp, standard base, 5-inch pole, pole collar, and attachment hardware.
