Overview

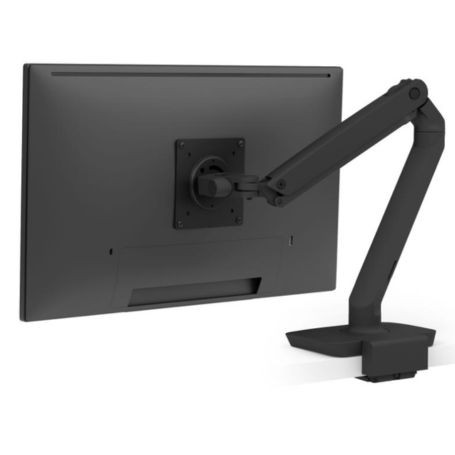

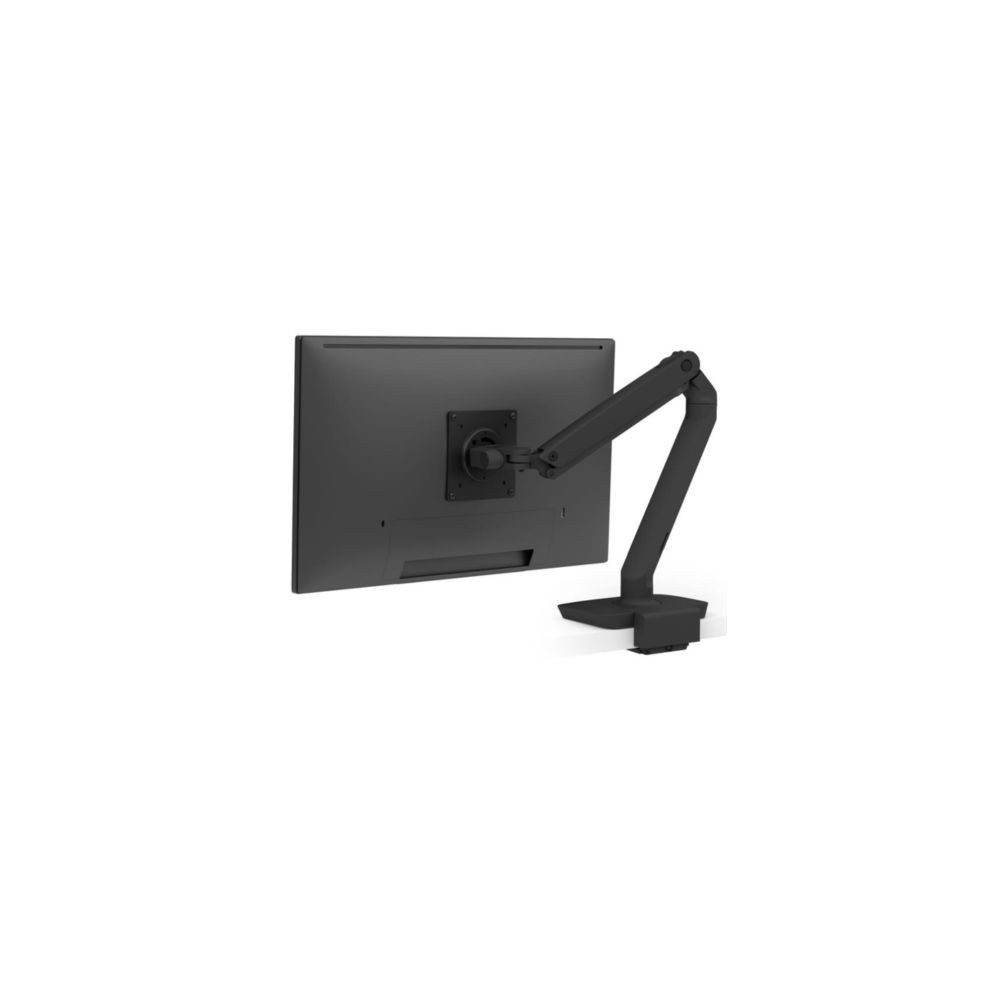

The Ergotron 45-625-224 is an MXV Desk Monitor Arm in matte black with a low-profile top-mount C-clamp designed for desk surfaces 25–35 mm thick. Its compact V-shaped design provides adjustable positioning for compatible monitors while helping keep cables organized.
Monitor Compatibility
The MXV Desk Monitor Arm supports displays up to 34 inches with a load capacity of 7–20 lb (3.2–9.1 kg). It uses a VESA 75 × 75 mm or 100 × 100 mm mounting pattern and supports both landscape and portrait display orientation.
Adjustment and Movement
The arm provides up to 13 inches (33 cm) of height adjustment, 180° tilt, 360° pan, and 360° monitor rotation. It can extend displays up to 22.2 inches (56.4 cm) from the rear of the base to the VESA mounting plate.
Mounting
The included low-profile top-mount C-clamp is designed for desk surfaces measuring 25–35 mm (0.98–1.38 inches) thick. The clamp attaches above the desk surface without the extra bulk of a conventional clamp.
Key Features
- MXV desk monitor arm in matte black
- Supports displays up to 34 inches and 20 lb
- 75 × 75 mm and 100 × 100 mm VESA mounting patterns
- 13-inch height adjustment with tilt, pan, and rotation
- Low-profile top-mount C-clamp for 25–35 mm desks
Applications
The 45-625-224 is designed for desk-mounted monitor setups in offices, workstations, and other environments where adjustable monitor positioning and efficient desk mounting are required.
DC Supplies Product Note
The exact MPN 45-625-224 identifies the matte black MXV Desk Monitor Arm with the low-profile top-mount C-clamp for 25–35 mm surfaces. Check the monitor's VESA pattern, weight, and desk thickness before installation.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-625-224 |
| Product Type | Desk Monitor Arm |
| Product Series | MXV |
| Color | Matte Black |
| Maximum Screen Size | 34 inches |
| Load Capacity | 7–20 lb (3.2–9.1 kg) |
| VESA Mounting Pattern | 75 × 75 mm / 100 × 100 mm |
| Height Adjustment | 13 inches (33 cm) |
| Tilt | 180° |
| Pan | 360° |
| Rotation | 360° |
| Maximum Extension | 22.2 inches (56.4 cm) |
| Desk Surface Thickness | 25–35 mm (0.98–1.38 in) |
| Mounting Method | Low-profile top-mount C-clamp |
| Display Orientation | Landscape / Portrait |
| Product Weight | 7 lb (3.2 kg) |
| Warranty | 10 years |
| UPC | 698833083507 |
FAQs
What is the Ergotron 45-625-224?
It is an MXV Desk Monitor Arm in matte black with a low-profile top-mount C-clamp.
What size monitors does it support?
The arm supports displays up to 34 inches with a specified load range of 7–20 lb (3.2–9.1 kg).
Which VESA patterns are supported?
The monitor arm supports 75 × 75 mm and 100 × 100 mm VESA mounting patterns.
What desk thickness is supported?
The included low-profile C-clamp is designed for desk surfaces measuring 25–35 mm thick.
How far can the arm extend?
The arm can extend the display up to 22.2 inches (56.4 cm) from the rear of the base to the VESA mounting plate.
What warranty does Ergotron provide?
The 45-625-224 is listed with a 10-year manufacturer warranty.
