Overview

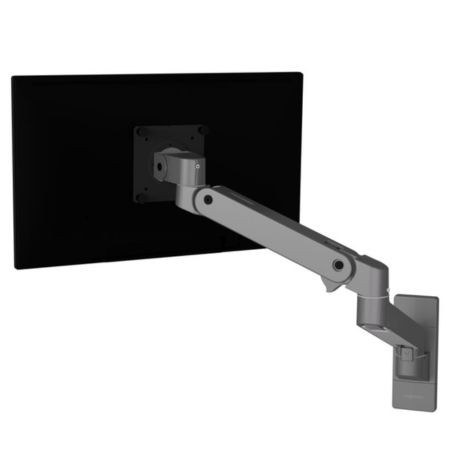

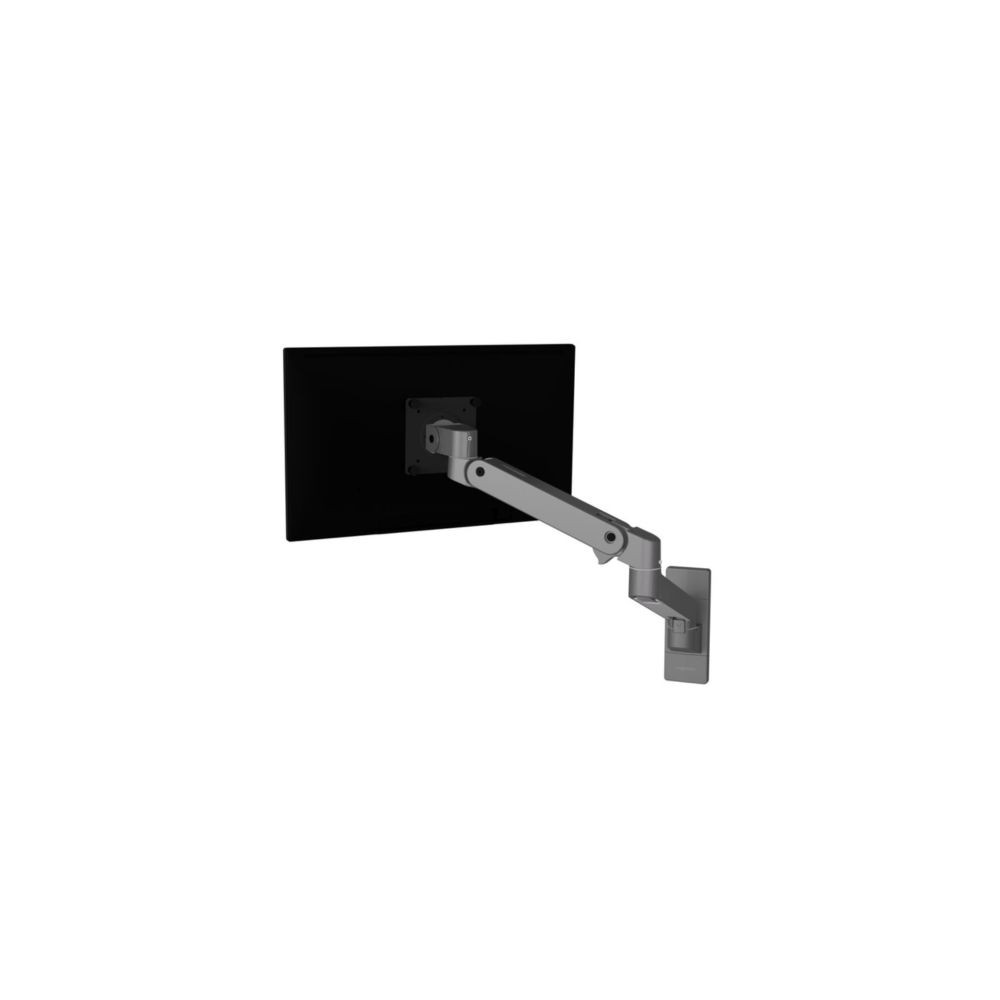

The Ergotron 45-683-293 LX Pro Wall Monitor Arm is a dark grey wall-mounted monitor arm designed for flexible positioning of a single display. Its articulated structure provides height adjustment, tilt, pan, and rotation while supporting monitors up to 34 inches within the specified weight capacity.
Monitor Support and Adjustment
The arm supports displays weighing 4–22 lb (1.8–10 kg) and provides 13 inches (33 cm) of lift. The monitor can tilt through an 85° range, with 70° upward and 15° downward movement. The monitor pivot provides 360° rotation, while the arm provides 360° pan for positioning the display within the available workspace.
Wall Mounting and Reach
The 45-683-293 uses a wall-mount base with an articulated arm and extension. The arm provides up to 25 inches (64 cm) of extension, allowing the monitor to be positioned away from the mounting surface when required. A built-in rotation stop on the extension can be engaged to limit side-to-side movement and help reduce the chance of the arm contacting the wall.
VESA Compatibility
The monitor pivot supports VESA FDMI MIS-D, 100/75, C mounting patterns, including 100 x 100 mm and 75 x 75 mm hole spacing. Monitor size is a guideline; the display must remain within the arm's rated 4–22 lb load capacity.
Installation and Included Components
The standard 45-683-293 configuration includes the arm, extension, monitor pivot, wall-mount base, fasteners for wood stud or concrete wall installation, and attachment hardware. The mounting surface should be evaluated for suitability before installation.
Key Features
- LX Pro single-monitor wall arm in dark grey
- Supports displays up to 34 inches and 4–22 lb (1.8–10 kg)
- 13-inch (33 cm) height adjustment range
- 85° tilt with 360° pan and 360° monitor rotation
- Up to 25 inches (64 cm) of extension with integrated rotation stop
Applications
The LX Pro Wall Monitor Arm is suited to office, professional, industrial, and other workspace installations where a monitor needs to be mounted to a wall rather than occupy desk space. Its articulated design allows the display to be repositioned for different viewing locations and orientations.
DC Supplies Product Note
Confirm both the display weight and the wall structure before installation. The 45-683-293 is rated for 4–22 lb displays, while the mounting surface must be appropriate for the specified wall-mount installation method.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-683-293 |
| Product Type | Wall-Mounted Monitor Arm |
| Series | LX Pro |
| Configuration | Single Monitor |
| Color | Dark Grey / Industrial Grey |
| Typical Display Size | Up to 34 inches |
| Monitor Capacity | 4–22 lb (1.8–10 kg) |
| Lift | 13 inches (33 cm) |
| Tilt | 85° (70° up / 15° down) |
| Arm Pan | 360° |
| Monitor Rotation | 360° |
| Maximum Extension | 25 inches (64 cm) |
| VESA Standard | FDMI MIS-D, 100/75, C |
| VESA Mounting Patterns | 100 x 100 mm and 75 x 75 mm |
| Pole Height | 5.1 inches (13.1 cm) |
| Mounting Type | Wall Mount Base |
| Product Weight | 5.6 lb (2.5 kg) |
| Shipping Weight | 11.4 lb (5.2 kg) |
| Warranty | 10 years |
| GTIN | 00698833091625 |
Frequently Asked Questions
What monitors can the Ergotron 45-683-293 support?
The arm supports a single display up to 34 inches with a rated monitor weight of 4–22 lb (1.8–10 kg).
What VESA mounting patterns are supported?
The monitor pivot supports VESA MIS-D mounting patterns including 75 x 75 mm and 100 x 100 mm configurations.
How much adjustment does the wall arm provide?
The arm provides 13 inches (33 cm) of lift, 85° of tilt, 360° of arm pan, and 360° of monitor rotation.
How far can the arm extend from the wall?
The articulated arm provides up to 25 inches (64 cm) of extension.
Does the arm have a rotation stop?
Yes. A built-in rotation stop on the extension can be engaged to limit side-to-side arm movement and help deter contact with the wall.
What is included with the 45-683-293?
The standard configuration includes the arm, extension, monitor pivot, wall-mount base, fasteners for wood stud or concrete wall installation, and attachment hardware.
