Overview

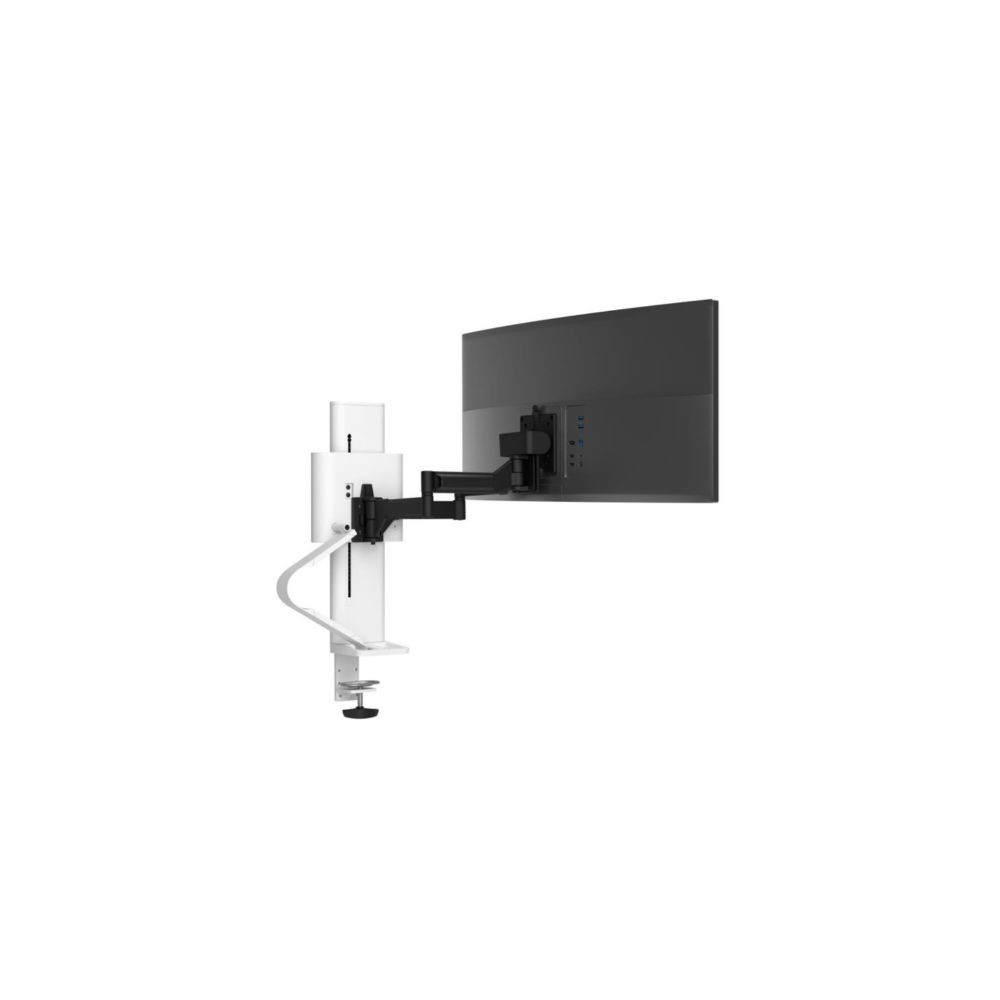

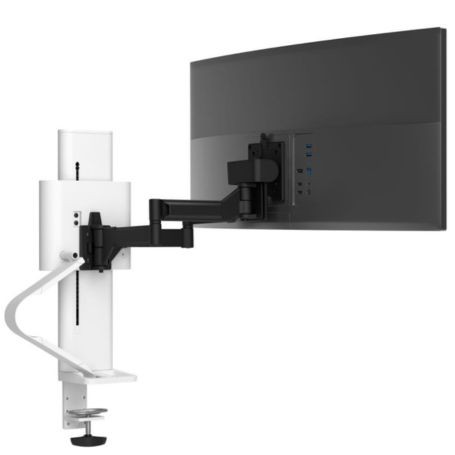

The Ergotron 45-630-216 TRACE Monitor Mount is a white single-monitor desk mount designed for flexible display positioning and ergonomic workspace adjustment. Its counter-balanced monitor pivot and Constant Force technology allow the display to be repositioned smoothly across different working positions.
Monitor Support and Adjustment
The mount supports displays in the 21.5–38 inch range with a rated capacity of 6.5–21.5 lb (2.9–9.8 kg). It provides 11 inches (28 cm) of lift, 80° of tilt, 240° of pan, and 360° of monitor rotation.
Desk Mounting and Reach
The standard two-piece mounting clamp attaches to compatible desk surfaces up to 2.55 inches (65 mm) thick. The articulated structure provides up to 15 inches (38.1 cm) of extension, allowing the display to be positioned closer to or farther from the user as required.
VESA Compatibility
The monitor attachment supports VESA MIS-D mounting patterns with 75 x 75 mm and 100 x 100 mm hole spacing. The display should remain within the specified 6.5–21.5 lb load range for the mount.
Cable Management
TRACE incorporates integrated cable management to help route display cables along the monitor mount and keep the workspace more organized. The design is intended to support frequent changes between individual work and collaborative viewing positions.
Key Features
- Single-monitor TRACE mount in white
- Supports displays from 21.5 to 38 inches and 6.5–21.5 lb (2.9–9.8 kg)
- 11-inch (28 cm) lift with 80° tilt
- 240° pan and 360° monitor rotation
- Up to 15 inches (38.1 cm) of extension with integrated cable management
Applications
The TRACE Monitor Mount is suited to office desks, professional workstations, collaborative work areas, and other single-display installations where the monitor needs to be repositioned throughout the workday. Its adjustable range supports different viewing and working positions without requiring a separate monitor stand.
DC Supplies Product Note
Check the monitor's actual weight and VESA pattern before installation. The 45-630-216 is rated for 6.5–21.5 lb displays, and the desk clamp accommodates surfaces up to 2.55 inches (65 mm) thick.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-630-216 |
| Product Type | Single Monitor Desk Mount |
| Series | TRACE |
| Configuration | Single Monitor |
| Color | White |
| Typical Display Size | 21.5–38 inches |
| Monitor Capacity | 6.5–21.5 lb (2.9–9.8 kg) |
| Lift | 11 inches (28 cm) |
| Tilt | 80° (75° up / 5° down) |
| Pan | 240° |
| Monitor Rotation | 360° |
| Maximum Extension | 15 inches (38.1 cm) |
| VESA Standard | MIS-D |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| Desk Clamp Thickness | Up to 2.55 inches (65 mm) |
| Mounting Type | Two-piece desk clamp |
| Product Weight | 15.3 lb (7 kg) |
| Warranty | 15 years |
| GTIN | 00698833083705 |
Frequently Asked Questions
What monitors can the Ergotron 45-630-216 support?
The TRACE mount supports displays from 21.5 to 38 inches with a rated weight capacity of 6.5–21.5 lb (2.9–9.8 kg).
What VESA patterns are supported?
The mount supports VESA MIS-D patterns using 75 x 75 mm and 100 x 100 mm mounting holes.
How much height adjustment is available?
The mount provides 11 inches (28 cm) of lift.
How far can the monitor extend?
The articulated mount provides up to 15 inches (38.1 cm) of extension.
How thick can the desk be?
The standard two-piece desk clamp accommodates desk surfaces up to 2.55 inches (65 mm) thick.
Can the 45-630-216 be converted to a dual-monitor setup?
TRACE is a modular system, and Ergotron documents a separate dual conversion kit for upgrading compatible single-monitor configurations. The conversion kit is not part of the standard 45-630-216 configuration.
