Overview

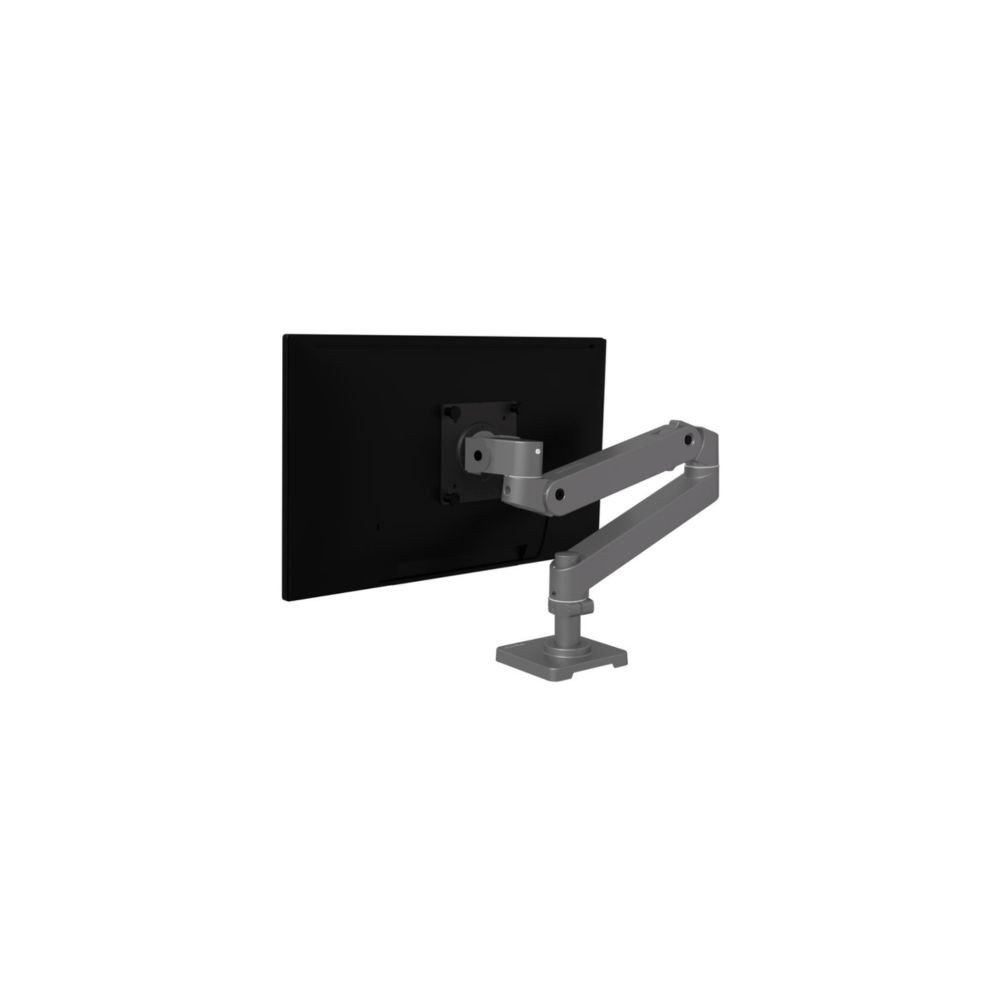

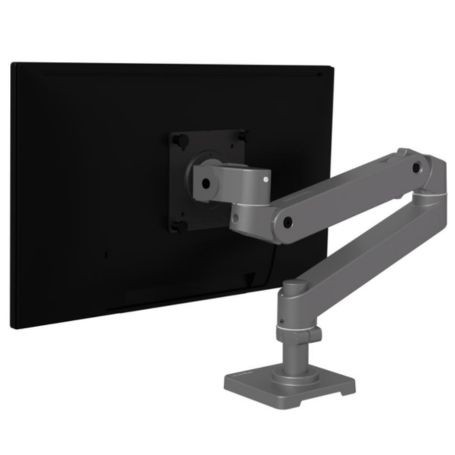

The Ergotron 45-682-293 LX Pro Desk Monitor Arm is a dark grey single-monitor desk mount designed for flexible display positioning on compatible work surfaces. Its articulated arm supports displays up to 34 inches and provides adjustable height, tilt, pan, and rotation for different viewing positions.
Monitor Support and Adjustment
The arm supports a single monitor weighing 4–22 lb (1.8–10 kg) and provides up to 13 inches (33 cm) of lift. The monitor has an 85° tilt range and can rotate through 360°, allowing landscape or portrait positioning when supported by the display and workspace.
Desk Mounting and Reach
The standard two-piece desk clamp attaches to desk surfaces from 0.4 to 2.4 inches (10–60 mm) thick. The articulated arm provides up to 25 inches (64 cm) of extension. An integrated rotation stop can be engaged to limit side-to-side movement of the arm and help control its travel around nearby walls or partitions.
VESA Compatibility
The monitor pivot supports VESA MIS-D mounting patterns, including 75 x 75 mm and 100 x 100 mm configurations. The display must remain within the specified 4–22 lb capacity for the arm's rated load range.
Key Features
- Single-monitor LX Pro desk arm in dark grey
- Supports displays up to 34 inches and 4–22 lb (1.8–10 kg)
- 13-inch (33 cm) height adjustment range
- 85° tilt and 360° monitor rotation
- Up to 25 inches (64 cm) of extension with integrated rotation stop
Applications
The LX Pro Desk Monitor Arm is suited to office desks, professional workstations, home work areas, and other single-display installations requiring adjustable monitor positioning. Its articulated design allows the display to be raised, lowered, tilted, rotated, and repositioned across the available desk area.
DC Supplies Product Note
Before installation, verify the monitor's actual weight and VESA mounting pattern. The 45-682-293 supports 4–22 lb displays and uses a standard two-piece clamp for desk surfaces between 0.4 and 2.4 inches thick.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-682-293 |
| Product Type | Single Monitor Desk Arm |
| Series | LX Pro |
| Configuration | Single Monitor |
| Color | Dark Grey |
| Typical Display Size | Up to 34 inches |
| Monitor Capacity | 4–22 lb (1.8–10 kg) |
| Lift | 13 inches (33 cm) |
| Tilt | 85° |
| Arm Pan | 360° |
| Monitor Rotation | 360° |
| Maximum Extension | 25 inches (64 cm) |
| VESA Standard | MIS-D |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| Pole Height | 5.3 inches (13.5 cm) |
| Desk Clamp Range | 0.4–2.4 inches (10–60 mm) |
| Mounting Type | Two-piece desk clamp |
| Construction | Aluminum |
| Product Weight | 3.8 kg |
| Warranty | 10 years |
| GTIN | 00698833091595 |
Frequently Asked Questions
What monitors can the Ergotron 45-682-293 support?
The arm supports a single display up to 34 inches with a weight capacity of 4–22 lb (1.8–10 kg).
What VESA patterns are supported?
The monitor pivot supports VESA MIS-D patterns including 75 x 75 mm and 100 x 100 mm mounting holes.
How much height adjustment is available?
The LX Pro Desk Monitor Arm provides up to 13 inches (33 cm) of lift.
Can the monitor be rotated?
Yes. The monitor pivot provides 360° rotation for landscape or portrait positioning when appropriate for the display and workspace.
What desk thickness can the clamp accommodate?
The two-piece desk clamp attaches to desk surfaces from 0.4 to 2.4 inches (10–60 mm) thick.
What is included with the 45-682-293?
The standard configuration includes the arm, extension, monitor pivot, two-piece desk clamp, standard base, 5-inch pole, pole collar, and attachment hardware.
