Ergotron LX Pro Dual Direct Monitor Arm

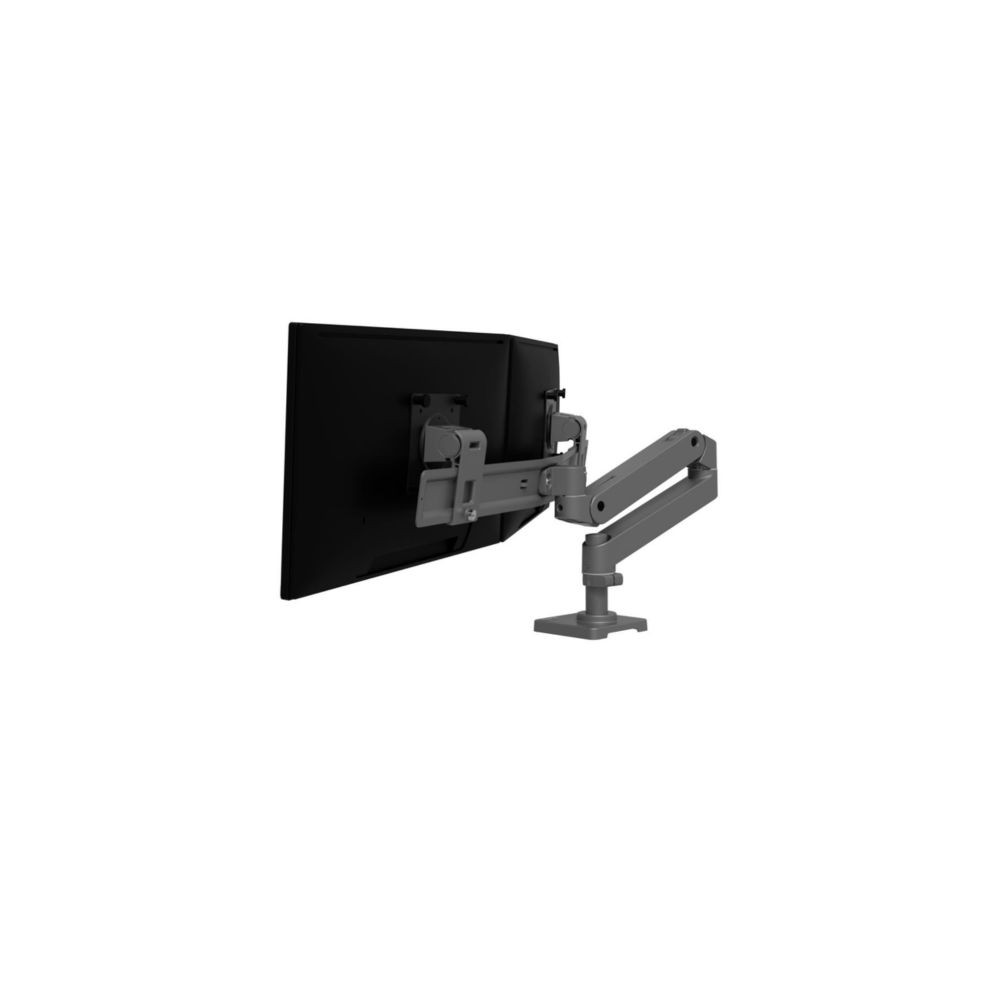

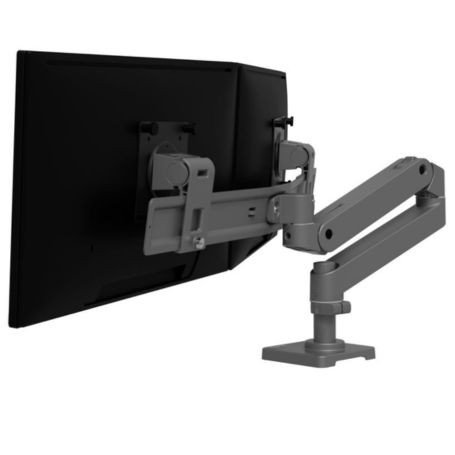

The Ergotron 45-684-293 is an LX Pro Desk Mount Dual-Direct Monitor Arm in Industrial Grey, designed to support two monitors from a single desk-mounted arm assembly. The exact configuration includes a dual bow, two monitor pivots, a desk clamp and a standard pole.
Monitor Support
The mount supports two displays with a typical size of up to 27 inches. Maximum individual monitor weight is 4.3 kg (9.4 lb), with a total supported monitor weight of 8.5 kg (18.8 lb).
Adjustment and VESA Compatibility
The 45-684-293 provides up to 33 cm of lift and up to 61.7 cm of extension. Each monitor can be adjusted with 30° tilt, 360° monitor pan and 360° monitor rotation. The mount supports VESA MIS-D mounting patterns of 100 x 100 mm and 75 x 75 mm.
Key Features
- Dual-direct configuration for two monitors
- Up to 4.3 kg supported per monitor and 8.5 kg total
- Up to 33 cm of height adjustment
- 360° monitor pan and 360° monitor rotation
- VESA MIS-D compatibility with 75 x 75 mm and 100 x 100 mm patterns
Applications
The LX Pro Dual Direct is intended for desktop workstations using two monitors. Its dual-monitor arrangement allows both displays to be positioned from a shared desk-mounted support while retaining individual monitor adjustment.
DC Supplies Product Note
For this exact MPN, verify both the individual monitor weight and the combined monitor weight before installation. The 45-684-293 is the Industrial Grey Dual Direct configuration; the same LX Pro family also has separate part numbers for other colors and dual-monitor arrangements.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-684-293 |
| Product Type | Dual Monitor Desk Mount Arm |
| Series | LX Pro |
| Configuration | Dual Direct |
| Color | Industrial Grey |
| Number of Monitors | 2 |
| Typical Display Size | Up to 27 inches |
| Maximum Individual Monitor Weight | 4.3 kg (9.4 lb) |
| Total Weight Capacity | 8.5 kg (18.8 lb) |
| Lift | 33 cm (13 inches) |
| Tilt | 30° (+15° / -15°) |
| Monitor Pan | 360° |
| Rotation | 360° |
| VESA Mounting | MIS-D, 100 x 100 mm and 75 x 75 mm |
| Extension | Up to 61.7 cm (24.3 inches) |
| Desk Mount | 2-piece desk clamp |
| Warranty | 10 years |
Frequently Asked Questions
How many monitors does the Ergotron 45-684-293 support?
The 45-684-293 is designed to support two monitors.
What is the maximum monitor weight?
Each individual monitor can weigh up to 4.3 kg, with a combined monitor load of up to 8.5 kg.
Which VESA patterns are supported?
The mount supports VESA MIS-D 75 x 75 mm and 100 x 100 mm mounting patterns.
How far can the arm extend?
The arm provides up to 61.7 cm of extension.
What color is part number 45-684-293?
The exact 45-684-293 configuration is Industrial Grey.
