Overview

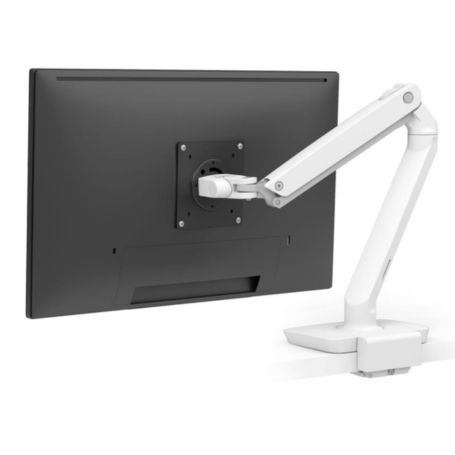

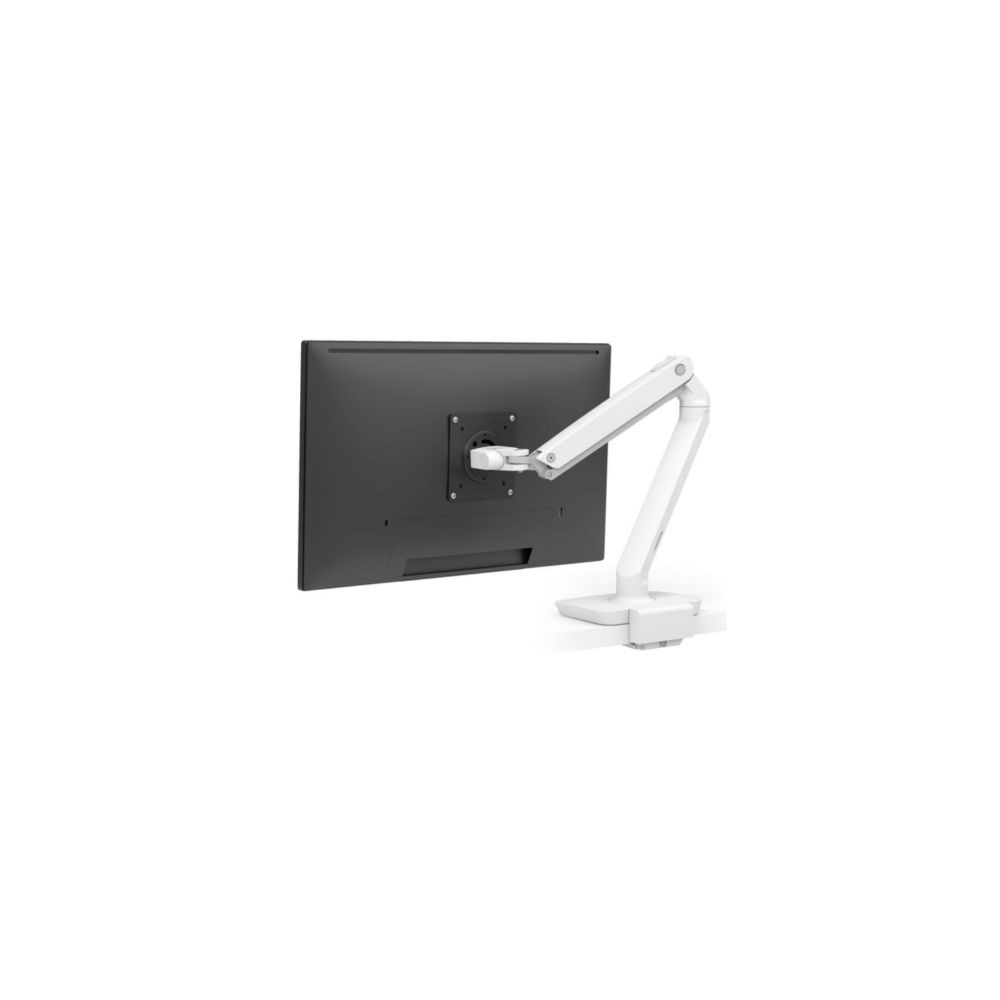

The Ergotron 45-625-216 is an MXV Desk Monitor Arm in white, featuring a low-profile top-mount C-clamp for desk surfaces 25–35 mm thick. Its compact V-shaped design provides adjustable positioning while helping conserve workspace.
Monitor Compatibility
The arm supports a single display up to 34 inches with a load capacity of 7–20 lb (3.2–9.1 kg). It supports VESA 75 × 75 mm and 100 × 100 mm mounting patterns.
Adjustment and Movement
The MXV arm provides 13 inches (33 cm) of height adjustment, 180° tilt, 360° pan, and 360° monitor rotation. The arm can extend the display up to 22.2 inches (56.4 cm) from the back of the base to the VESA mounting plate.
Mounting
The included low-profile top-mount C-clamp is designed for desk surfaces measuring 25–35 mm (0.98–1.37 inches) thick. The installation requires approximately 20 mm (0.8 inch) of open space behind the desk surface.
Key Features
- MXV desk monitor arm in white
- Supports displays up to 34 inches and 20 lb
- VESA 75 × 75 mm and 100 × 100 mm compatible
- 13 inches of height adjustment with 180° tilt and 360° movement
- Low-profile top-mount C-clamp for 25–35 mm desk surfaces
Applications
The 45-625-216 is designed for single-monitor office desks, workstations, and other desktop environments where flexible monitor positioning and space-efficient mounting are required.
DC Supplies Product Note
The exact MPN 45-625-216 identifies the white MXV Desk Monitor Arm with a 25–35 mm low-profile top-mount C-clamp. Verify the monitor's VESA pattern, weight, and desk thickness before installation.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-625-216 |
| Product Type | Desk Monitor Arm |
| Product Series | MXV |
| Color | White |
| Number of Displays | 1 |
| Maximum Screen Size | 34 inches |
| Load Capacity | 7–20 lb (3.2–9.1 kg) |
| VESA Mounting Pattern | 75 × 75 mm / 100 × 100 mm |
| Height Adjustment | 13 inches (33 cm) |
| Tilt | 180° |
| Pan | 360° |
| Rotation | 360° |
| Maximum Extension | 22.2 inches (56.4 cm) |
| Desk Surface Thickness | 25–35 mm (0.98–1.37 in) |
| Mounting Method | Low-profile top-mount C-clamp |
| Required Rear Clearance | 0.8 inch (2 cm) |
| Product Weight | 7 lb (3.2 kg) |
| Warranty | 10 years |
| UPC | 698833083491 |
FAQs
What is the Ergotron 45-625-216?
It is a white MXV Desk Monitor Arm designed to mount and position a single compatible monitor.
What size monitor does it support?
The arm supports displays up to 34 inches with a specified load range of 7–20 lb (3.2–9.1 kg).
Which VESA patterns are supported?
The monitor arm supports 75 × 75 mm and 100 × 100 mm VESA mounting patterns.
What desk thickness does the clamp support?
The included low-profile C-clamp is designed for desk surfaces measuring 25–35 mm thick.
How much movement does the arm provide?
The arm provides 13 inches of height adjustment, 180° tilt, 360° pan, and 360° rotation, with up to 22.2 inches of extension.
What warranty is included?
Ergotron lists a 10-year warranty for the 45-625-216.
