Detailed Specifications

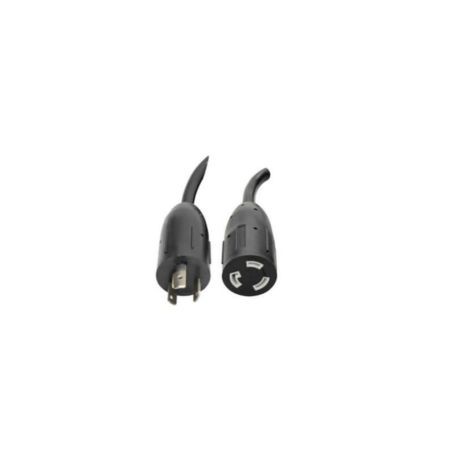

Eaton P046-006-LL Tripp Lite 6 ft L5-20P to L5-20R Power Extension Cord
Overview
The Eaton P046-006-LL is a Tripp Lite by Eaton heavy-duty locking power extension cord featuring a NEMA L5-20P male plug and NEMA L5-20R female receptacle. It is designed to extend power connections for UPS systems, PDUs, servers, computers, and other equipment using compatible NEMA L5-20 connections.
The Tripp Lite P046-006-LL uses 12 AWG, 3-conductor SJT cable and is rated for 20A at 125V AC. Both molded connectors twist and lock into place to help prevent accidental disconnection, making the cable suitable for rack, data-center, and other critical power applications.
Key Features
- Tripp Lite by Eaton heavy-duty locking power extension cord
- 6 ft. (1.83 m) cable length for flexible equipment placement
- NEMA L5-20P male to NEMA L5-20R female connector configuration
- 12 AWG, 3-conductor SJT cable construction
- Locking connectors help prevent accidental power disconnection
Specifications
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | P046-006-LL |
| Product Type | Tripp Lite Locking Power Extension Cord |
| Cable Length | 6 ft. (1.83 m) |
| Input Connector | NEMA L5-20P Male |
| Output Connector | NEMA L5-20R Female |
| Voltage Rating | 125 VAC |
| Current Rating | 20A |
| Wire Gauge | 12 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Cable Shielding | Unshielded |
| Cable Jacket | PVC |
| Cable Color | Black |
| Connector Type | Locking |
| Outer Cable Diameter | Not verified |
| Device Compatibility | UPS, PDU, servers and network equipment |
| Operating Temperature | -20°C to 60°C |
| Certifications | UL, cUL |
| Compliance | RoHS |
| Warranty | Limited Lifetime |
