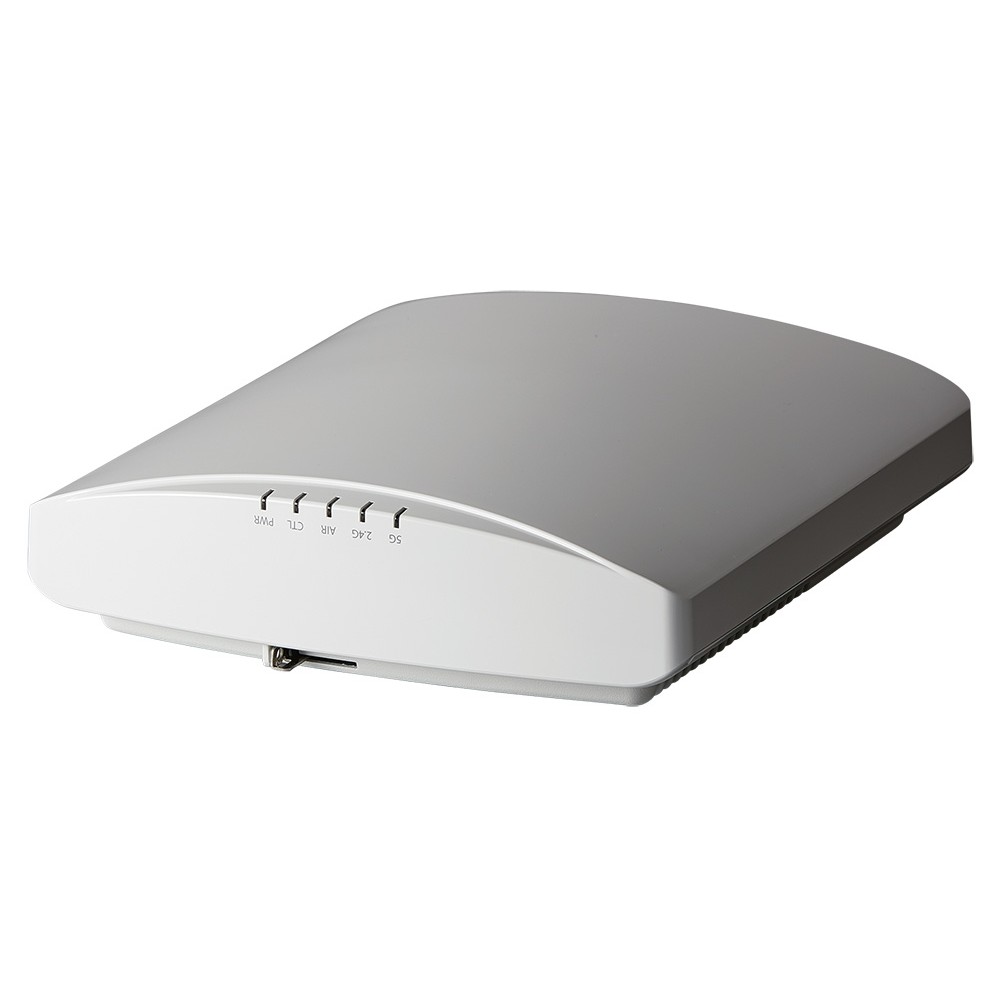

Ruckus ZoneFlex R730 dual-band 802.11ax wireless access point

901-R730-US00

New

Ruckus R730 - Wireless access point - 802.11ax - Wi-Fi - 2.4 GHz (1 band) / 5 GHz (3 bands)

×




901-R730-US00, Ruckus R730, R730, Zoneflex R730, Zoneflex 730, 901-R730, Ruckus Wireless

$1,294.00

$1,335.00

-$41.00

Detailed Specifications

MAIN SPECIFICATIONS

Product Description Ruckus R730 - wireless access point
Device Type Wireless access point
Form Factor External - indoor
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
Frequency Band 2.4 GHz (1 band) / 5 GHz (3 bands)
Capacity Maximum associated clients: 1024 ¦ SSIDs per radio: 16
Dimensions (WxDxH) 8.7 in x 9.8 in x 2.3 in
Weight 3.53 lbs

EXTENDED SPECIFICATIONS

General
Device Type Wireless access point
Ruggedized Design Indoor
Width 8.7 in
Depth 9.8 in
Height 2.3 in
Weight 3.53 lbs
Networking
Form Factor External
Connectivity Technology Wireless
Data Transfer Rate 5 Gbps
Line Coding Format OFDM
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
Frequency Band 2.4 GHz (1 band) / 5 GHz (3 bands)
Capacity Maximum associated clients: 1024 ¦ SSIDs per radio: 16
Status Indicators Power, 5 GHz, 2.4 GHz
Features VLAN support, IPv6 support, Mesh networking, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, IPv4 support, Low Density Parity Check (LDPC), Space Time Blocking Code (STBC), Wireless Intrusion Prevention System (WIPS), security lock slot (cable lock sold separately), BeamFlex+ Smart Antenna Technology, MU-MIMO technology, SU-MIMO technology, 4x4:4 streams, Smart Roaming, ChannelFly, SmartMesh, 8x8:8 streams
Encryption Algorithm AES, TKIP, WPA2, WPA-PSK, WPA3
Authentication Method Radio Service Set ID (SSID)
Compliant Standards IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax
Antenna
Antenna Qty 12
Gain Level 3 dBi
Expansion / Connectivity
Interfaces 1 x 1/2.5/5GBase-T - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A
Miscellaneous
Compliant Standards EN 60950-1, EN 60601-1-2
Environmental Parameters
Min Operating Temperature 14 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 95% (non-condensing)
