Detailed Specifications

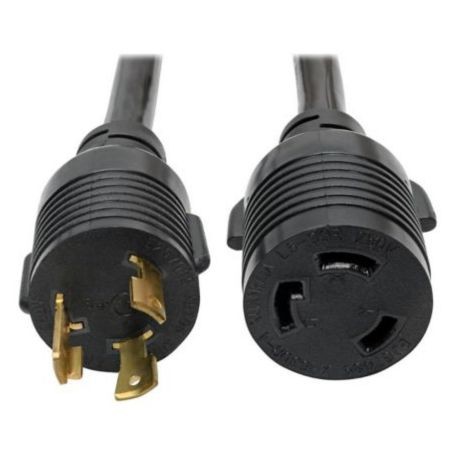

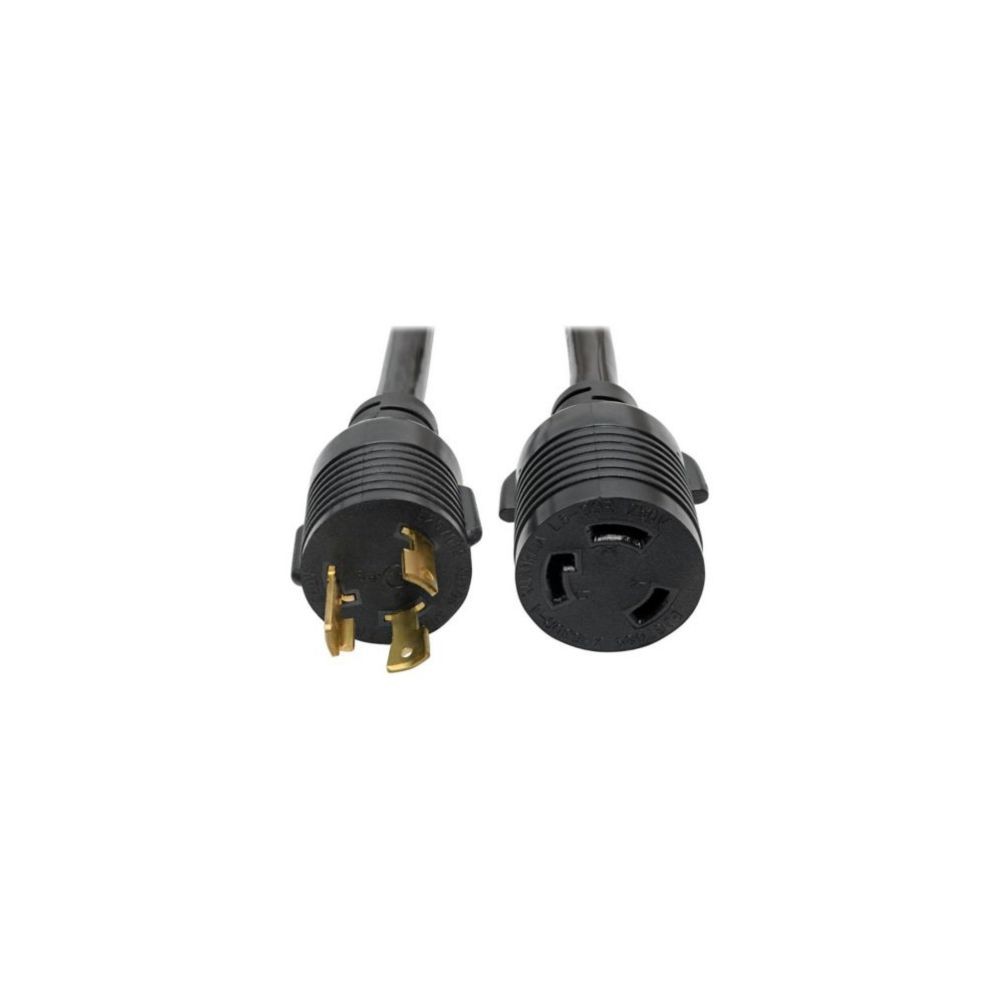

Eaton P041-014 Tripp Lite 14ft Power Extension Cord NEMA L6 30P NEMA L6 30R
Overview
The Eaton Tripp Lite P041-014 is a 14 ft heavy-duty power extension cord with NEMA L6-30P and NEMA L6-30R locking connectors. It is designed to extend compatible power connections for PDUs, UPS systems, servers, network switches, and routers.
It is rated 30A at 100-250VAC and uses 10 AWG, 3-conductor SJT cable. The locking connectors help maintain a secure connection, while the 14 ft cable provides additional routing flexibility in equipment installations.
Use it only with equipment and power-distribution systems requiring NEMA L6-30 connections and compatible electrical ratings. It should not be substituted for another connector configuration or lower-rated circuit.
Key Features
- 30A, 100-250VAC rating supports high-power equipment
- Locking L6-30 connectors help prevent accidental disconnection
- 10 AWG SJT cable supports high-current power delivery
- 14 ft length provides flexible equipment placement
- Designed for PDU, UPS, server and network applications
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P041-014 |
| Product Type | Power Extension Cord |
| Current Rating | 30 A |
| Voltage Rating | 100-250 VAC |
| Cable Length | 14 ft (4.27 m) |
| Wire Gauge | 10 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Input Connector | NEMA L6-30P |
| Output Connector | NEMA L6-30R |
| Connector Style | Straight, locking |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Outer Cable Diameter | 15 mm |
| Operating Temperature | -20°C to 60°C |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
| Compatibility | Server, Network Switch, Router, UPS, PDU |
