Detailed Specifications

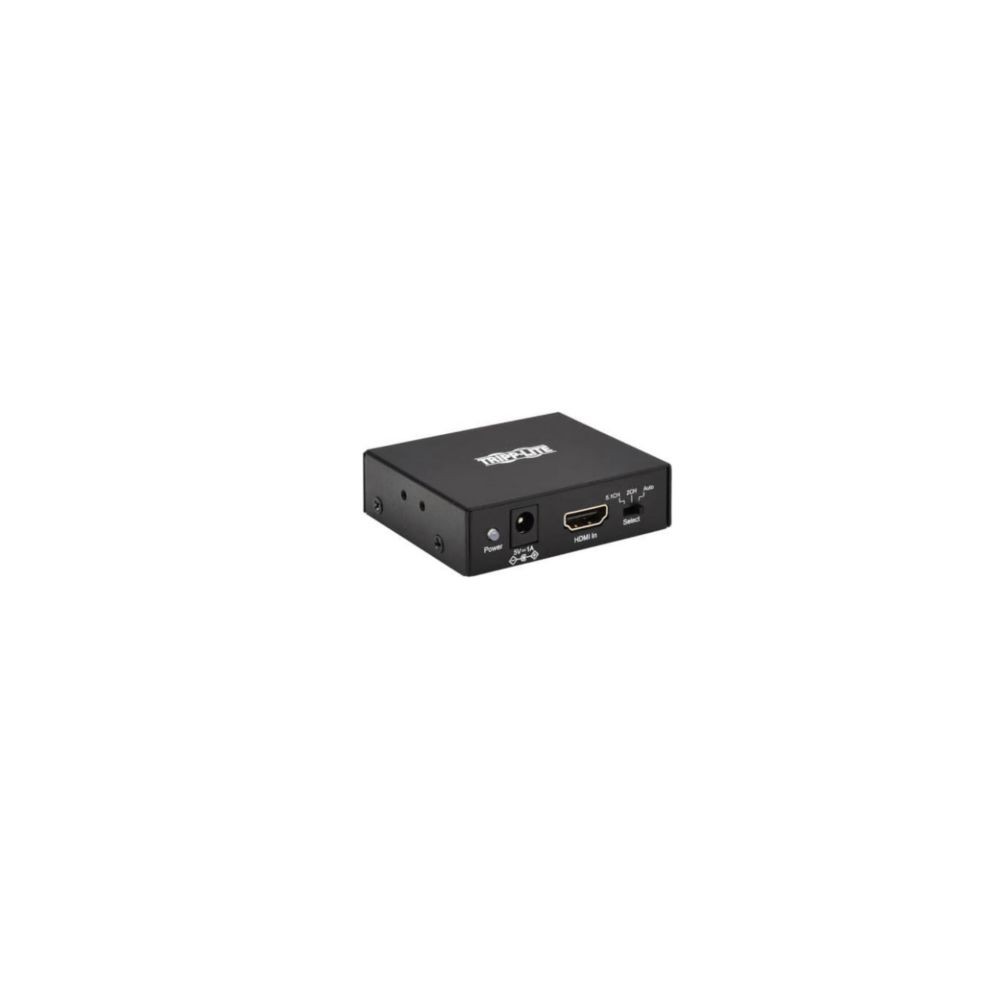

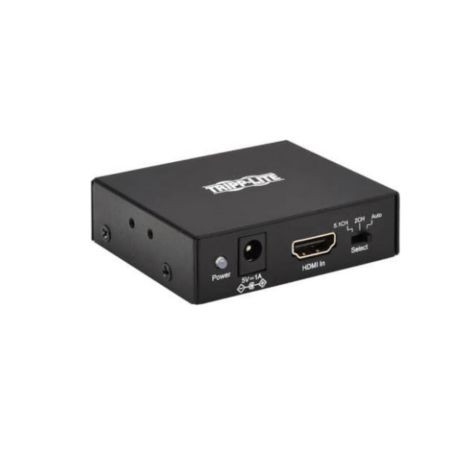

Eaton P130-000-AUDIO2 Tripp Lite 4K HDMI Audio De-Embedder/Extractor
Overview
The Eaton P130-000-AUDIO2 is a Tripp Lite by Eaton 4K HDMI Audio De-Embedder/Extractor that separates the audio track from an HDMI audio/video source and sends it to a separate audio system while passing the accompanying UHD video to an HDMI display. It is designed for AV installations where an HDMI source must connect to a receiver, amplifier, soundbar or speakers with analog or digital audio inputs.
The unit supports 4K × 2K video at 60 Hz, 36-bit True Color, 3D video and HDCP 2.2/1.4. Audio can be output through 3.5 mm stereo, TOSLINK optical or RCA, with support for 2-channel stereo and multichannel audio up to 5.1 surround sound.
Key Features
- 4K 60Hz HDMI audio extraction separates audio while passing UHD video to an HDMI display.
- Three audio output options: 3.5 mm stereo, TOSLINK optical and RCA.
- Supports 2-channel stereo and up to 5.1-channel surround sound.
- Supports HDCP 2.2 and 1.4, 36-bit True Color and 3D video.
- International 100-240V power supply with North American, European, UK and Australian plug adapters.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Model | P130-000-AUDIO2 |
| Product Type | HDMI Audio De-Embedder/Extractor |
| HDMI Input | 1 × HDMI Female |
| HDMI Output | 1 × HDMI Female |
| Maximum Video Resolution | 3840 × 2160 @ 60Hz |
| HDMI Version | HDMI |
| HDCP | 2.2 / 1.4 |
| Color Depth | 36-bit True Color |
| 3D Video | Yes |
| Audio Outputs | 3.5mm, RCA, TOSLINK |
| Audio Channels | 2-Channel Stereo / Up to 5.1 Surround |
| Audio Formats | LPCM, DTS Digital, Dolby Digital |
| EDID Compatible | No |
| CEC Supported | No |
| Power Consumption | 2W |
| Power Input | 100-240V AC, 50/60Hz, 0.3A |
| Power Output | 5V DC, 1A |
| Contact Plating | Gold |
| Color | Black |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -10°C to 80°C |
| Operating Humidity | 10-85% RH, Non-Condensing |
| Storage Humidity | 5-90% RH, Non-Condensing |
| Dimensions | 2.76 × 2.36 × 0.79 in |
| Weight | 0.31 lb |
| Compliance | RoHS, WEEE, UKCA, REACH, CE, FCC |
| Certification | NOM |
| Warranty | 2-Year Limited Worldwide |
| UPC | 037332276568 |
