Detailed Specifications

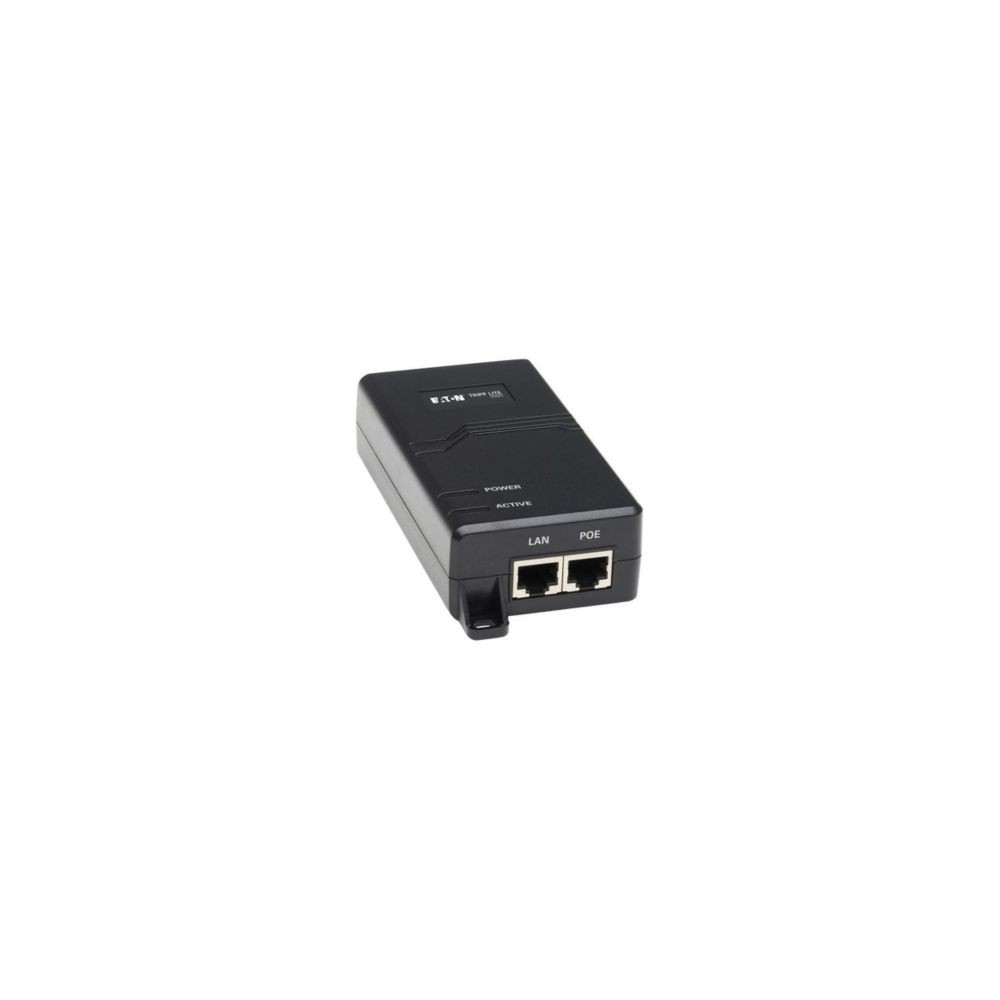

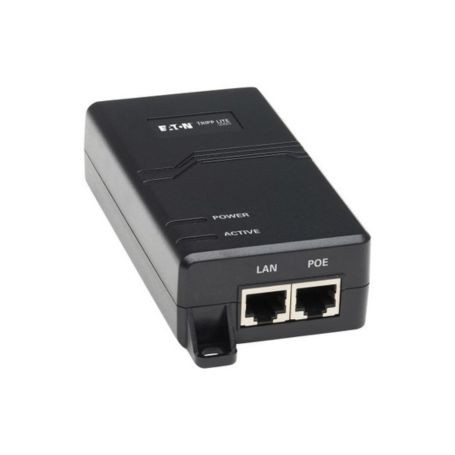

Eaton NPOE-30W-1G-INT Tripp Lite Gigabit PoE Midspan Active Injector
Overview
The Eaton NPOE-30W-1G-INT is a Tripp Lite by Eaton Gigabit PoE+ Midspan Active Injector that adds Power over Ethernet to a non-PoE network connection. It delivers up to 30W of power and 10/100/1000 Mbps data over existing Ethernet cabling to compatible PoE/PoE+ devices.
The injector supports IEEE 802.3af and 802.3at, with a maximum PoE output of 30W. It supports transmission distances up to 100 m (328 ft) and works with Cat5/5e, Cat6 and Cat6a cabling. The fanless, plug-and-play design requires no configuration and supports desktop or surface mounting.
The -INT international version includes international power options, including CEE 7/16 Schuko and BS 1363 plugs. It is suitable for deploying wireless access points, VoIP equipment, IP cameras and other PoE devices where a PoE switch or local AC outlet is unavailable.
Key Features
- 30W Type 2 PoE+ output supports IEEE 802.3at and IEEE 802.3af devices.
- 10/100/1000 Mbps Gigabit Ethernet maintains high-speed network connectivity.
- 100 m (328 ft) transmission distance using compatible Ethernet cabling.
- 100-240V AC universal input with international Schuko and BS 1363 power plugs.
- Plug-and-play, fanless design supports desktop or smooth-surface installation without configuration.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Model | NPOE-30W-1G-INT |
| Product Type | Gigabit PoE+ Midspan Active Injector |
| PoE Type | Type 2 PoE+ |
| PoE Standard | IEEE 802.3at / 802.3af |
| Maximum PoE Power | 30W |
| Network Speed | 10/100/1000 Mbps |
| Number of PoE Ports | 1 |
| Input Connector | RJ45 Female |
| Output Connector | RJ45 Female |
| Supported Cable | Cat5/5e, Cat6, Cat6a |
| Maximum Transmission Distance | 328 ft / 100 m |
| AC Input | 100-240V AC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 53V DC ±2V |
| Input Current | 0.75A |
| Plug Types | CEE 7/16 Schuko, BS 1363 |
| Form Factor | Desktop |
| Cooling | Fanless |
| LED Indicators | Power On, PoE On |
| Color | Black |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 80°C |
| Relative Humidity | 10%-90%, Non-Condensing |
| Dimensions | 5.40 × 2.60 × 1.40 in |
| Weight | 0.55 lb |
| Compliance | RoHS, FCC, CE, REACH, WEEE |
| Certification | UL Listed |
| UPC | 037332272010 |
| Warranty | 3-Year Limited Worldwide |
