Detailed Specifications

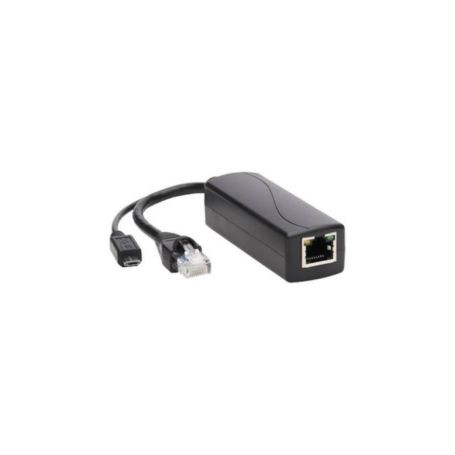

Eaton NPOE-SPL-G-5VMU Tripp Lite PoE Active Splitter
Overview:
The Eaton NPOE-SPL-G-5VMU is a Tripp Lite active Power over Ethernet splitter that separates PoE power and Ethernet data into independent connections. It delivers 5V DC at 1A (5W) through a USB Micro-B connector while providing 10/100/1000 Mbps Gigabit Ethernet through an RJ45 connection.
The splitter accepts 36–57VDC PoE input and can be installed up to 328.08 ft. (100 m) from a PoE switch or 48V injector over Cat5e/6 cabling. It is intended for non-PoE network equipment such as wireless access points, security cameras, VoIP phones, and other edge devices requiring 5V/1A power.
The NPOE-SPL-G-5VMU provides plug-and-play operation without configuration and supports IEEE 802.3af PoE, 802.3 Ethernet, 802.3u Fast Ethernet, and 802.3ab Gigabit Ethernet standards.
Key Features :
- Separates PoE power and Gigabit Ethernet data into USB Micro-B and RJ45 connections.
- Provides 5V DC, 1A, 5W output through the USB Micro-B connector.
- Supports 10/100/1000 Mbps Gigabit Ethernet data transfer.
- Supports PoE input from 36–57VDC and operation up to 328.08 ft. (100 m) from the PoE source.
- Plug-and-play design for powering non-PoE devices such as WAPs, security cameras, and VoIP phones.
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Model | NPOE-SPL-G-5VMU |
| Product Type | PoE Active Splitter |
| Technology | Cat5/5e; Cat6; PoE |
| PoE Type | IEEE 802.3af |
| Input Voltage | 36–57VDC |
| Output Voltage | 5VDC |
| Output Current | 1A |
| Output Power | 5W |
| Network Speed | 10/100/1000 Mbps |
| Maximum Distance | 328.08 ft. / 100 m |
| Input Connector | RJ45 Female |
| Data Output Connector | RJ45 Male |
| Power Output Connector | USB Micro-B Male |
| Network Compatibility | Gigabit Ethernet |
| IEEE Standards | 802.3, 802.3ab, 802.3af, 802.3u |
| Color | Black |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | 5° to 122°F (-15° to 50°C) |
| Relative Humidity | 0–90% non-condensing |
| Compliance | RoHS, CE, REACH, FCC |
| Warranty | 3-Year Limited |
| UPC | 037332242143 |
