Detailed Specifications

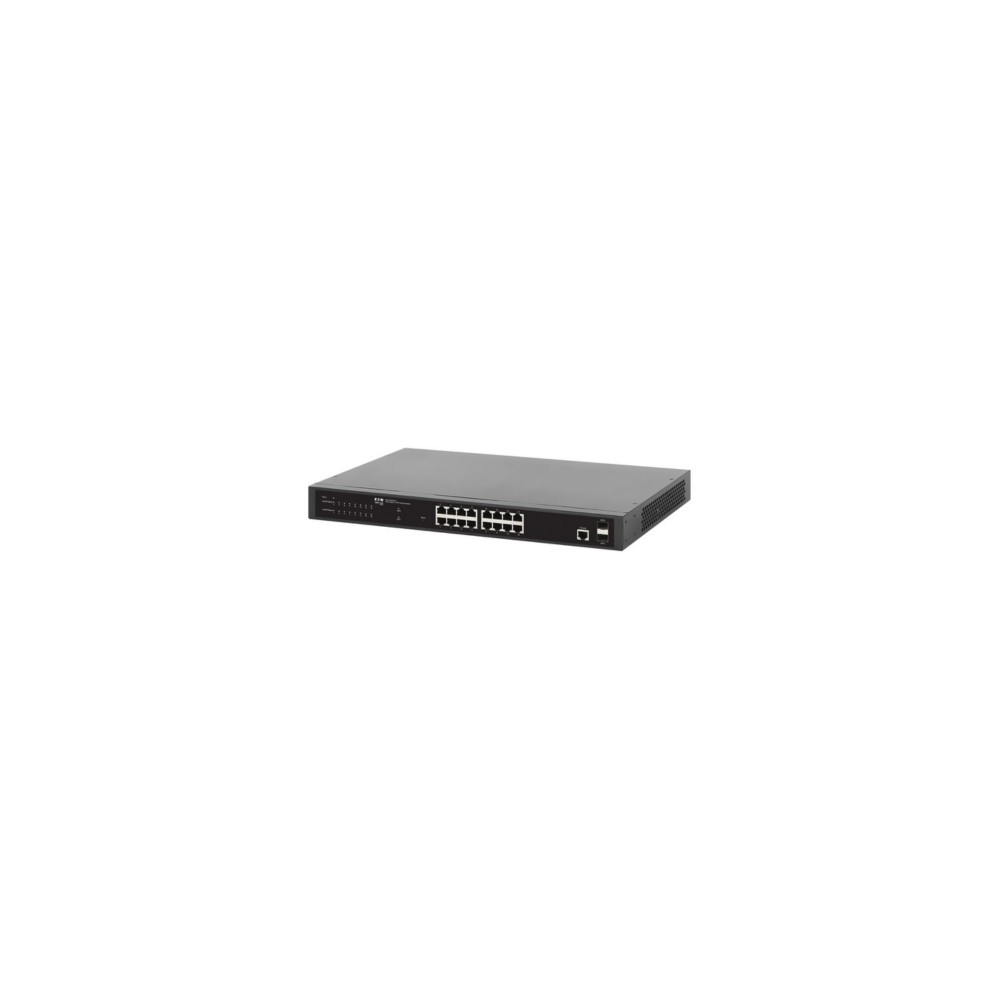

Eaton NGS16C2-1 Managed Network Switch
Overview :
The Eaton NGS16C2-1 (Tripp Lite Series) is a 16-port Layer 2 web-smart managed Gigabit Ethernet switch equipped with 2 dedicated SFP uplink slots. Network engineers, IT system administrators, and infrastructure procurement managers deploy this hardware to construct highly secure, loop-free network arrays inside corporate branch offices, edge distribution nodes, and server closets.
The platform provides a 36 Gbps internal switching capacity, enabling concurrent full-duplex wire-speed processing across all ports to prevent local data congestion. The pre-loaded Layer 2 management engine allows administrators to implement web-based traffic engineering through IGMP snooping, port trunking, 802.1Q VLAN isolation, and advanced RMON diagnostics. The dual mini-GBIC SFP fiber interface slots supply long-haul backhaul trunk lanes directly into core data center distribution backbones.
Occupying a 1U structural layout, this chassis mounts within standard 19-inch equipment racks using the included heavy-duty mounting flanges or operates on flat surfaces via protective rubber feet. The primary power input features an integrated IEC-320-C14 receptacle that matches the packed C14-to-C13 utility power cable. Avoid deploying this model for high-power IP cameras or VoIP handsets requiring Power over Ethernet, as the NGS16C2-1 is a non-PoE architecture that only passes data signaling.
Key Features :
16 auto-negotiating Gigabit RJ45 terminals supply fast local node access.
Dual dedicated SFP uplink slots deliver long-haul fiber optic wire paths.
Layer 2 web-smart software streamlines remote VLAN and trunking control.
Fanless chassis architecture guarantees completely silent server room operation.
Energy Efficient Ethernet features automatically scale down unused port power.
Specifications :
| Property | Specification |
| Brand | Eaton |
| Part Number | NGS16C2-1 |
| Product Type | Managed Network Switch |
| OSI Layer Classification | Layer 2 (Web-Smart) |
| Total Active Ports | 18 |
| RJ45 Interfaces | (16) 10/100/1000 Mbps Gigabit Ports |
| SFP Uplink Interfaces | (2) 1 Gbps mini-GBIC Slots |
| Management Console | (1) RJ45 Serial Console Port |
| Switching Capacity | 36 Gbps (Full Duplex) |
| MAC Address Table | 8,000 Entries |
| Jumbo Frame Support | Up to 9,000 Bytes |
| Nominal Input Voltage | 100 V to 240 V AC (Single-Phase) |
| Power Input Inlet | IEC-320-C14 |
| Power Consumption | 272.1 W (Max) |
| Form Factor | 1U Rackmount / Desktop |
| Cooling System | Fanless Convection |
| Operating Temperature | 32°F to 115°F (0°C to 45°C) |
