Detailed Specifications
Eaton NPOE-30W-1G Gigabit PoE Midspan Injector Compatible Tripp Lite
Overview :

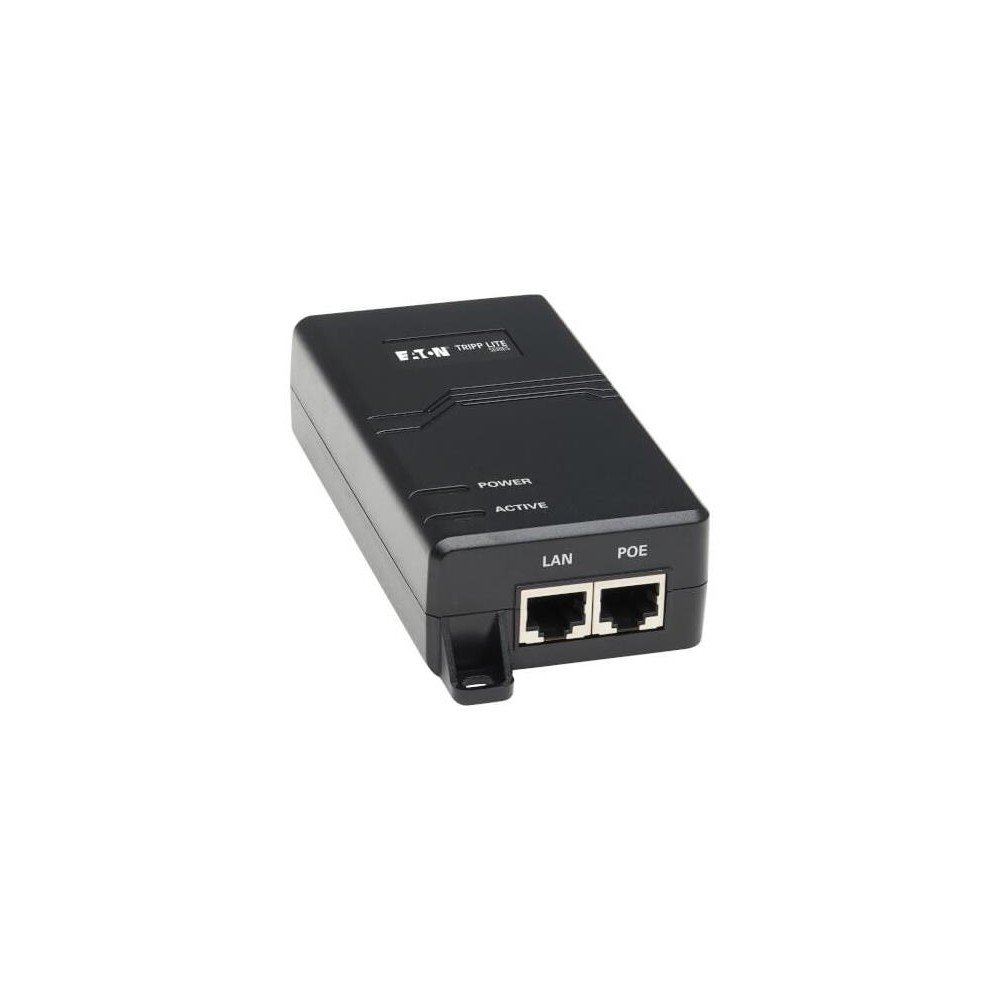

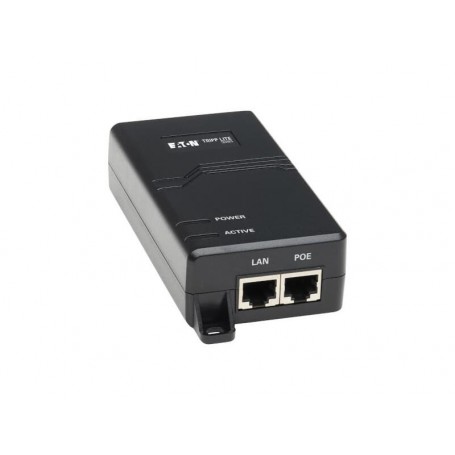

The Eaton NPOE-30W-1G is a single-port Gigabit PoE+ midspan injector that adds power and data to a network connection without requiring a PoE-enabled network switch. It supports IEEE 802.3af and 802.3at devices and delivers up to 30W of PoE power over existing Cat5e, Cat6 or Cat6a cabling.
The injector provides 10/100/1000 Mbps Ethernet connectivity and can deliver power and data to compatible devices up to 100 m (328 ft.) away. Typical applications include IP cameras, wireless access points, VoIP phones, touchscreen kiosks and other PoE devices installed where local AC power is unavailable.
Key Features :
- 1-port Gigabit PoE+ midspan injector
- Supports IEEE 802.3af PoE and 802.3at PoE+
- Delivers up to 30W of PoE power
- 10/100/1000 Mbps Gigabit Ethernet
- Extends power and data up to 100 m / 328 ft.
- Compatible with Cat5, Cat5e, Cat6 and Cat6a cabling
- RJ45 input and RJ45 PoE output
- Plug-and-play operation with no configuration required
- Fanless plastic housing for quiet operation
- Mounting holes for desktop, shelf or wall installation
- Protection against short circuits, high voltage and overloads
- Includes 2-ft. C5-to-NEMA 5-15P power cord
- 3-year limited worldwide warranty
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | NPOE-30W-1G |
| Product Type | Gigabit PoE+ Midspan Injector |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Type | Type 2 PoE+ |
| PoE Output | Up to 30W |
| Network Speed | 10/100/1000 Mbps |
| Ports | 1 |
| Input Connector | RJ45 Female |
| Output Connector | RJ45 Female |
| Recommended Cable | Cat5/5e, Cat6, Cat6a |
| Maximum Distance | 100 m / 328.08 ft. |
| Output Voltage | 53V ±2V DC |
| Input Voltage | 100–240V AC |
| Input Frequency | 50/60 Hz |
| Power Consumption | 35W |
| Operating Temperature | 0–50°C / 32–122°F |
| Relative Humidity | 10–90%, non-condensing |
| Housing | Black plastic |
| Compliance | FCC, RoHS, REACH |
