Detailed Specifications

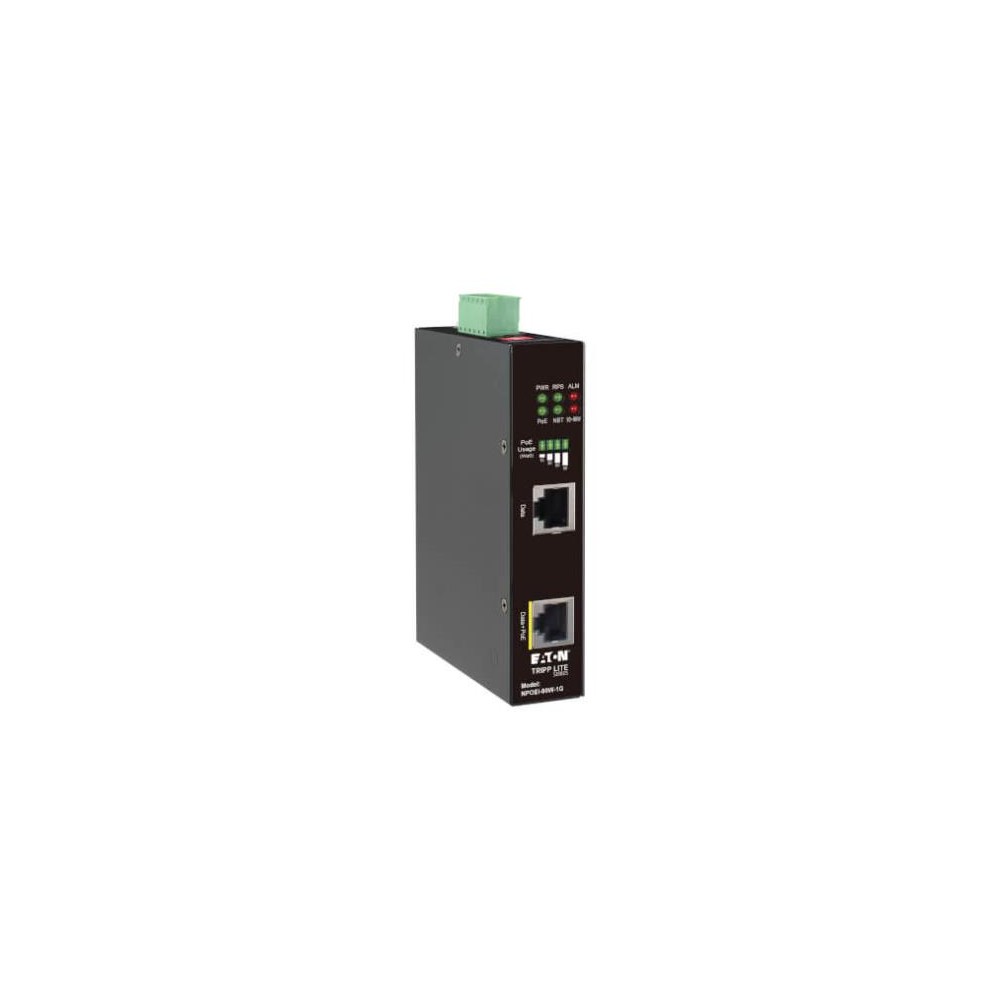

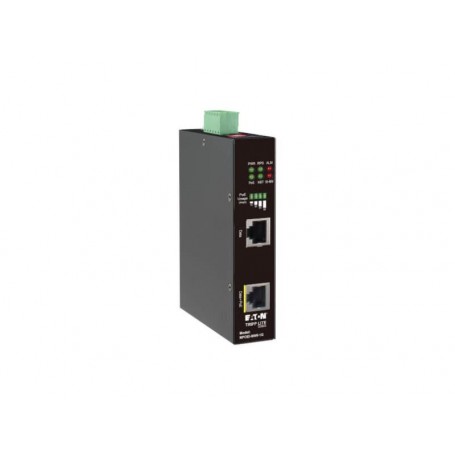

Eaton NPOEI-90W-1G Industrial Gigabit Ethernet Injector Compatible Tripp Lite
Overview :
The Eaton NPOEI-90W-1G is an Eaton Tripp Lite series Industrial Gigabit Ethernet PoE++ Injector designed to provide both power and network data to compatible PoE devices over existing Ethernet cabling. It delivers up to 90W of PoE power and supports Gigabit Ethernet data transfer speeds up to 1 Gbps.
The injector supports IEEE 802.3af, 802.3at and 802.3bt standards and uses dual 24–57VDC terminal-block inputs for industrial power applications. It features an industrial-grade IP30 metal housing and supports DIN-rail, rackmount and wall-mount installation. The unit operates in temperatures from -40°C to 75°C and can deliver power and data up to 328 ft. (100 m) through compatible Ethernet cabling.
Key Features :
- Industrial Gigabit Ethernet PoE++ injector
- Provides up to 90W PoE power
- Supports IEEE 802.3bt
- Supports IEEE 802.3af and 802.3at standards
- Gigabit Ethernet data transfer up to 1 Gbps
- 1-port PoE injector
- Dual 24–57VDC terminal-block power input
- Industrial-grade IP30 metal housing
- DIN-rail, rackmount and wall-mount installation support
- Supports power and data transmission up to 100 m / 328 ft.
- 4-pair PoE operation
- Plug-and-play installation with no network configuration required
- LED indicators for power, redundant power, alarm, PoE status and PoE usage
- Designed for industrial, manufacturing, warehouse and digital-signage environments
- TAA compliant
- RoHS and REACH compliant
- 3-year limited worldwide warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | NPOEI-90W-1G |
| Product Type | Industrial Gigabit Ethernet PoE++ Injector |
| Product Category | PoE Injector |
| Network Compatibility | 1 Gbps Gigabit Ethernet |
| Number of Ports | 1 PoE port |
| Ethernet Connector | RJ45 Female |
| Data Port | 10/100/1000Base-T RJ45 |
| PoE Standard | IEEE 802.3af / 802.3at / 802.3bt |
| PoE Type | Type 4 PoE++ / UPoE |
| Maximum PoE Budget | 90W |
| PoE Output | 90W PoE++ |
| Input Power | Dual 24–57VDC |
| Input Connection | Terminal Block |
| Output Voltage | 48–57VDC |
| Nominal Output Voltage | 54VDC |
| Maximum Current | 960 mA/pair |
| Supported Mode | 4-Pair Mode Mandatory |
| Power Management | 8 power class levels (1–8) |
| Maximum Data Rate | 1 Gbps |
| Maximum Transmission Distance | Up to 100 m / 328 ft. |
| Housing Material | Metal |
| Housing Rating | IP30 |
| Housing Color | Black |
| Form Factor | Industrial |
| Mounting Options | DIN-Rail, Rackmount, Wall-mount |
| Operating Temperature | -40° to 75°C (-40° to 167°F) |
| Storage Temperature | -40° to 85°C (-40° to 185°F) |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Storage Humidity | 5% to 95% RH, non-condensing |
| LED Indicators | PWR, RPS, ALM, PoE, NBT, PoE Usage |
| Cooling Fan | N/A |
| Frequency | 50/60 Hz |
| TAA Compliant | Yes |
