Detailed Specifications
Eaton P070-010 - 10 ft IEC 309 to C19 Heavy-Duty Extension Cord Compatible Tripp Lite
Overview :

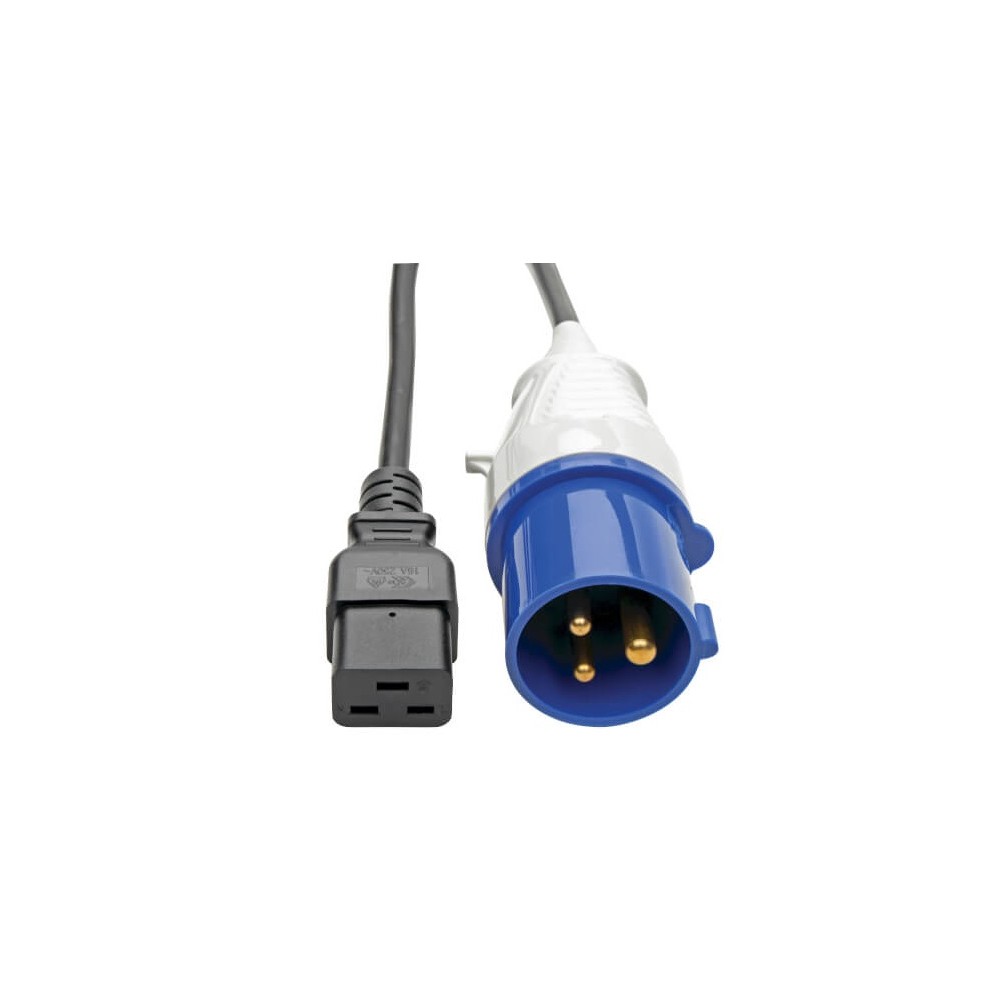

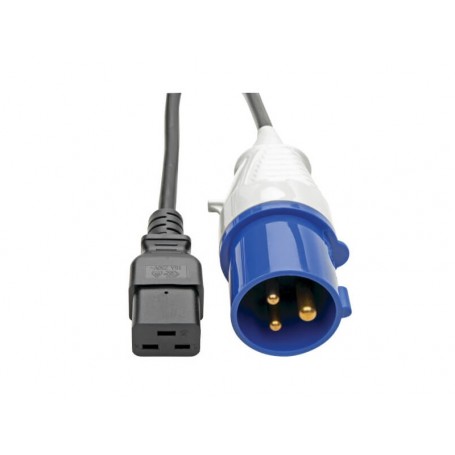

The Eaton P070-010 is a 10-foot (3.05 m) heavy-duty AC extension cord with an IEC 309 16A 2P+E connector and an IEC 60320 C19 connector. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton identifies it as an Eaton Tripp Lite series extension cord.
The cable is designed to connect servers, routers, network switches, blade server enclosures, PDUs and UPS equipment where a higher-current IEC 309 connection is required. The 10-foot length provides additional reach between rack equipment and a compatible power distribution connection.
The P070-010 uses 16 AWG, 3-conductor cable and supports up to 16A at 250VAC. The cable is specified with SJT construction by Eaton and H05VV-F 1.5mm² × 3G by the manufacturer datasheet/distributor specifications.
Key Features :
- 10 ft. (3.05 m) cable length
- IEC 309 16A 2P+E to IEC 60320 C19
- 16A maximum current rating
- 250VAC maximum voltage rating
- 16 AWG / 1.5 mm² conductors
- 3-conductor construction
- Heavy-duty power cable
- Suitable for servers and high-output network equipment
- Suitable for PDUs and UPS systems
- Black PVC cable jacket
- VW-1 jacket rating
- 8.4 mm outer cable diameter
- RoHS compliant
- UL Listed and cUL Listed
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P070-010 |
| Product Type | Heavy-duty extension cord |
| Cable Length | 10 ft. (3.05 m) |
| Connector A | IEC 309 16A 2P+E |
| Connector B | IEC 60320 C19 |
| Current Rating | 16A |
| Voltage Rating | 250VAC |
| Voltage Range | 90-250VAC |
| Wire Gauge | 16 AWG |
| Conductor Size | 1.5 mm² |
| Number of Conductors | 3 |
| Cable Type | SJT / H05VV-F 1.5mm² × 3G |
| Outer Cable Diameter | 8.4 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Jacket Rating | VW-1 |
| Shielding | Unshielded |
| Device Compatibility | Server, router, network switch, PDU, UPS |
| Compliance | RoHS |
| Certifications | UL Listed, cUL Listed |
