Detailed Specifications

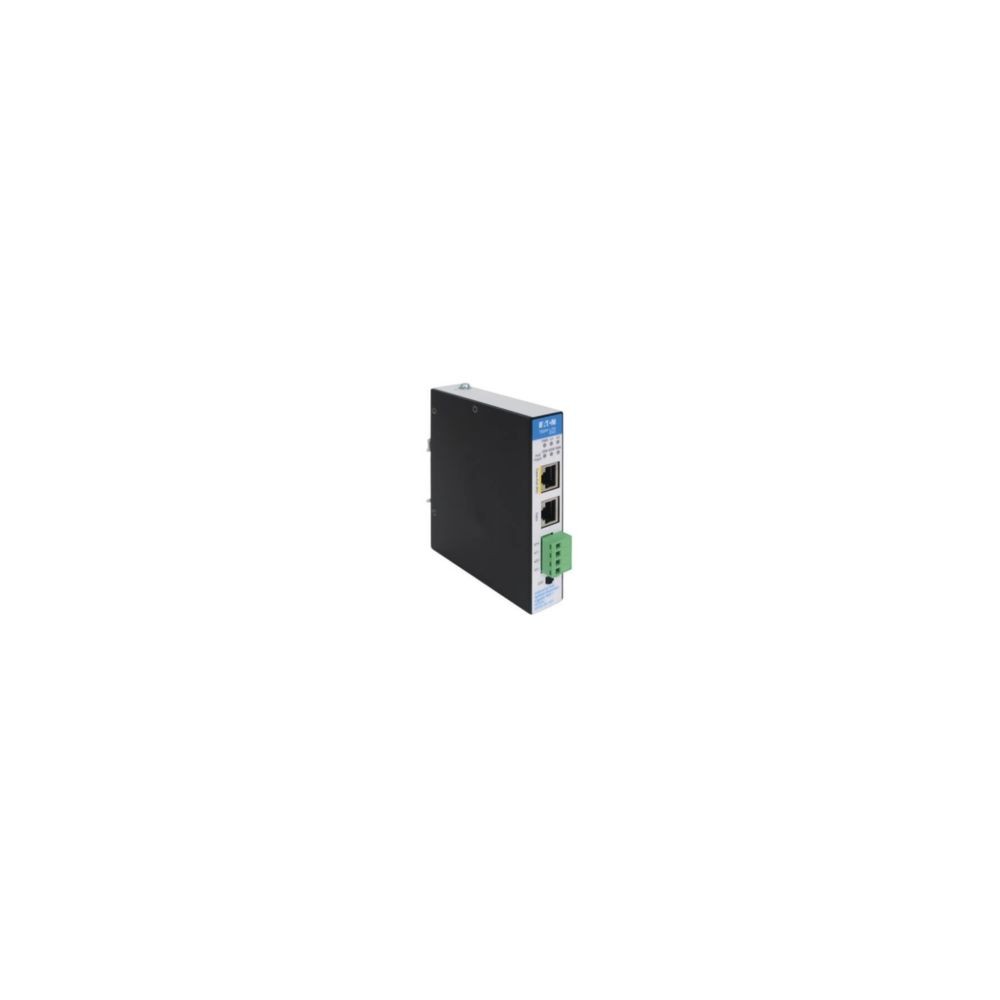

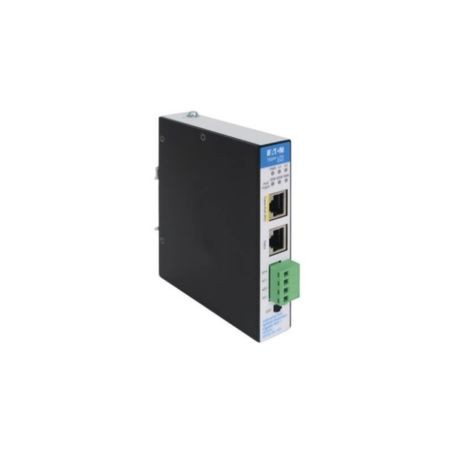

Eaton NPOE-SPL-EXT Tripp Lite by Eaton Industrial Gigabit PoE Splitter/Extender
Overview
The Eaton NPOE-SPL-EXT is a Tripp Lite by Eaton industrial Gigabit Ethernet PoE++ splitter/extender that separates PoE power and network data from a single Ethernet connection. It provides Gigabit Ethernet data and DC power for compatible non-PoE equipment.
The unit supports 10/100/1000 Mbps networking over Cat5/5e, Cat6 and Cat6a cabling, with transmission distances up to 328 ft. (100 m). Its 4-pin terminal block provides up to 65W of 24V DC power, while LED indicators show power and PoE load status.
Designed for industrial cabinets, control panels and field installations, the NPOE-SPL-EXT uses an IP30 metal housing, DIN-rail mounting and a -40°C to 60°C operating range. Built-in overload and short-circuit protection helps protect connected equipment.
Key Features
- Converts PoE input into Gigabit Ethernet data and 24V DC power
- Supports 10/100/1000 Mbps Ethernet over Cat5/5e/6/6a cable
- Provides up to 65W of 24V DC output through a 4-pin terminal block
- Extends PoE/data connectivity up to 328 ft. (100 m)
- IP30 metal housing with DIN-rail mounting and -40°C to 60°C operation
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series | Tripp Lite by Eaton |
| Model | NPOE-SPL-EXT |
| Product Type | PoE Splitter/Extender |
| Network Type | Industrial Gigabit Ethernet |
| Network Speed | 10/100/1000 Mbps |
| PoE Standard | IEEE 802.3 |
| PoE Capability | 15.4W / 30W / 60W |
| PoE Input | Up to Type 3 PoE++/UPoE |
| DC Output | 24V DC |
| Maximum DC Output | 65W |
| Data Connector | RJ45 Female |
| Output Connector | RJ45 Female + 4-Pin Terminal Block |
| Transmission Distance | Up to 328 ft. (100 m) |
| Recommended Cable | Cat5/5e, Cat6, Cat6a |
| Power Consumption | 6W |
| Mounting | DIN-Rail |
| Housing | Industrial-Grade Metal |
| Protection Rating | IP30 |
| Operating Temperature | -40°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5%-95% RH, Non-Condensing |
| Dimensions | 3.93 × 4.57 × 0.98 in |
| Weight | 0.64 lb |
| Certifications | UL Listed, CSA C22.2 |
| Compliance | FCC, IEEE Certified, TAA |
| Warranty | 3-Year Limited Warranty |
| UPC | 037332300386 |
