Detailed Specifications
Eaton NGI-S08C2P8-4 8-Port Lite Managed Industrial Gigabit Ethernet Switch compatible Tripp Lite
Overview :

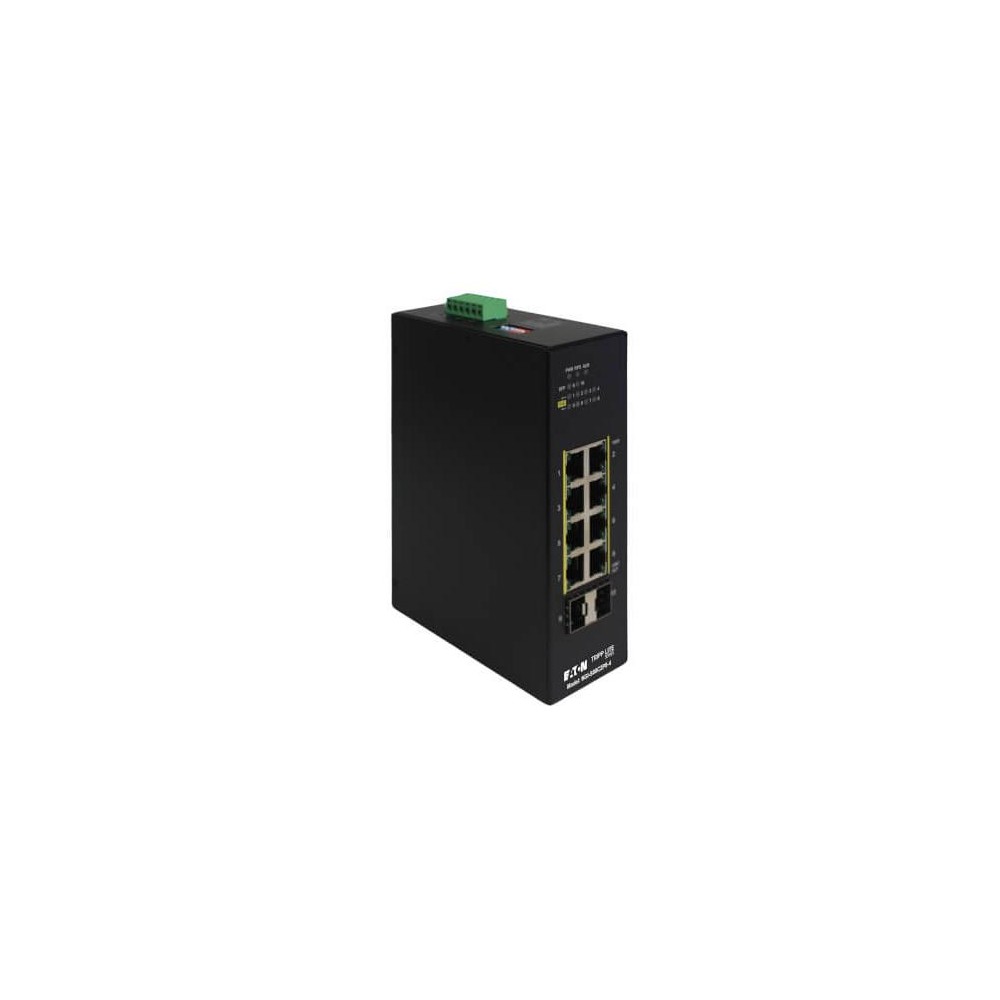

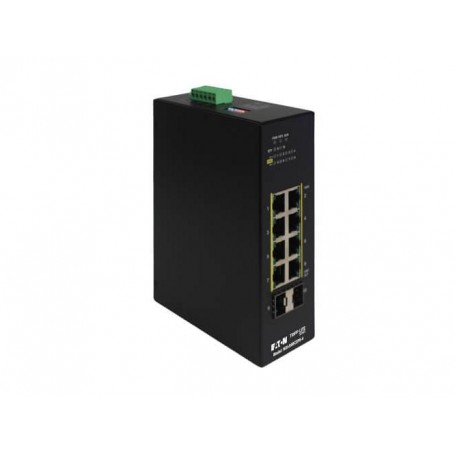

The Eaton NGI-S08C2P8-4 is a Tripp Lite by Eaton 8-port Lite Managed Industrial Gigabit Ethernet switch designed for industrial networks, telecommunications, security systems and building management applications. It provides eight auto-negotiating 10/100/1000 Mbps RJ45 PoE+ ports and two Gigabit SFP uplink slots for copper and fiber network connectivity.
The switch supports IEEE 802.3af and 802.3at PoE+, delivering up to 30W per PoE port with a total PoE budget of 240W. It accepts 48-57V DC input through a terminal block and is designed for DIN-rail installation.
The industrial-grade IP30 metal housing is designed for harsh environments and supports an operating temperature range of -10° to 60°C (14° to 140°F). Lite management features include web-based management, VLAN, QoS, IGMP snooping, storm control, MAC address auto-learning and monitoring tools.
Key Features :
- 8-port Lite Managed Industrial Gigabit Ethernet switch
- Eight 10/100/1000 Mbps RJ45 PoE+ ports
- Two Gigabit SFP uplink slots
- Up to 30W PoE+ output per port
- 240W total PoE power budget
- IEEE 802.3af and 802.3at PoE support
- Layer 2 network management
- Web-based management interface
- VLAN, QoS and IGMP snooping support
- Storm control and security features
- MAC address auto-learning and auto-aging
- Automatic MDI/MDI-X crossover detection
- IP30 industrial-grade metal housing
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | NGI-S08C2P8-4 |
| Product Type | 8-Port Lite Managed Industrial Gigabit Ethernet Switch |
| Switch Type | Lite Managed |
| Management Layer | Layer 2 |
| RJ45 Ports | 8 |
| RJ45 Port Speed | 10/100/1000 Mbps |
| SFP Uplink Ports | 2 |
| SFP Speed | Gigabit Ethernet |
| PoE Supported Ports | 8 |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Type | PoE+ |
| Maximum PoE Output | 30W per port |
| Total PoE Budget | 240W |
| Network Technology | Gigabit Ethernet, Fast Ethernet, Ethernet |
| Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at |
| Switching Capacity | 2.5 Gbps |
| Maximum Data Transfer Rate | 128 MB/s |
| VLAN Support | Yes |
| QoS | Yes |
| IGMP Snooping | Yes |
| Storm Control | Yes |
| MAC Address Learning | Auto-learning and auto-aging |
| MDI/MDI-X | Automatic |
| Jumbo Frames | Not supported |
| Power Input | 48-57V DC |
| Power Connection | Terminal block |
| Maximum Power Consumption | 13W |
| Mounting | DIN rail |
