Detailed Specifications

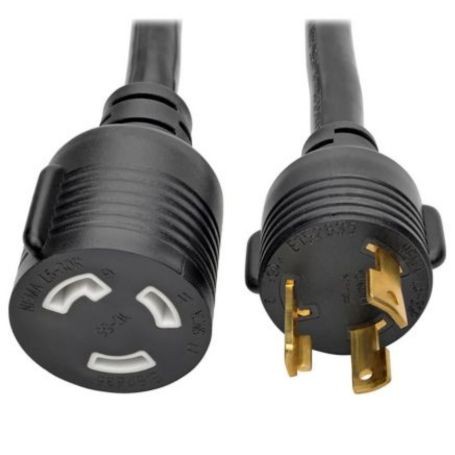

Eaton P046-006-LL-30A Tripp Lite 6ft Power Extension Cord NEMA L5 30P NEMA
Overview

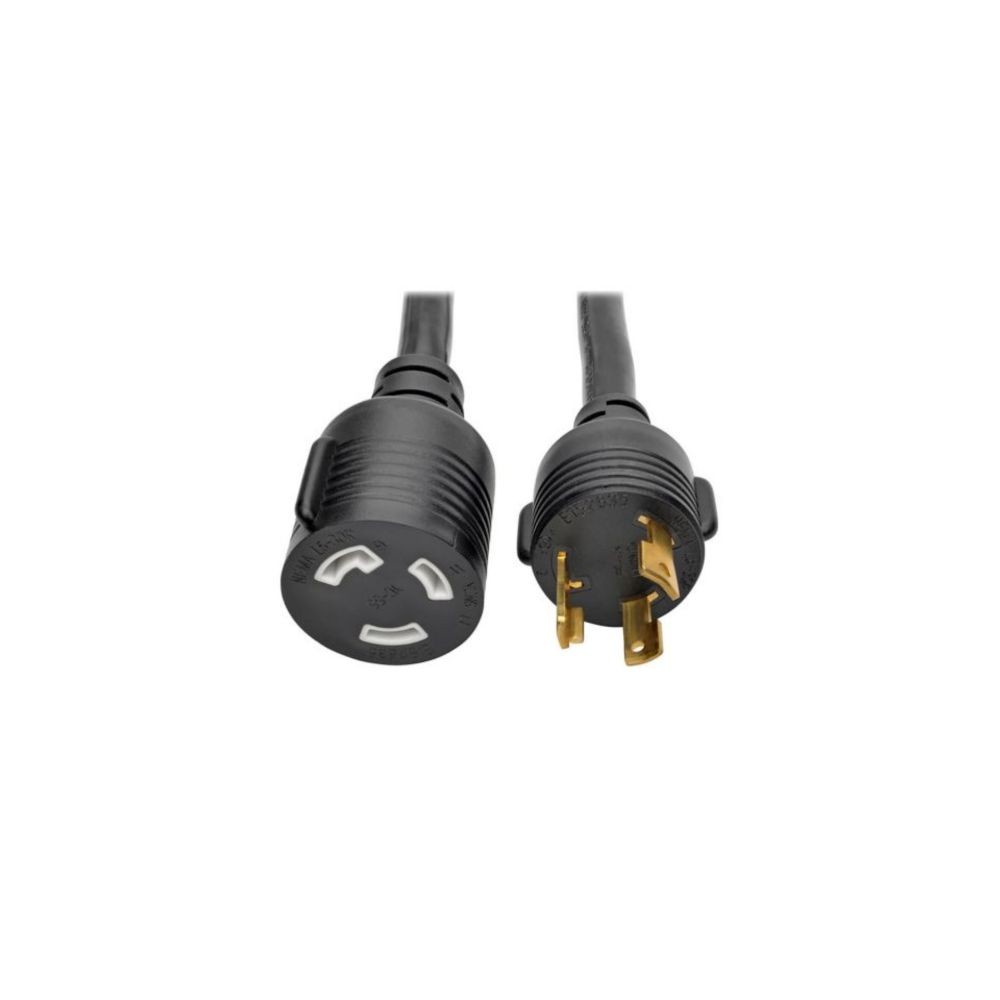

The Eaton Tripp Lite P046-006-LL-30A is a 6 ft heavy-duty power extension cord with NEMA L5-30P and NEMA L5-30R locking connectors. It extends an existing L5-30P power connection and is specified for compatible UPS and PDU applications.
The cord is rated 30A at 125VAC and uses 10 AWG, 3-conductor SJT cable with a PVC jacket. The molded locking connectors help prevent accidental disconnection during equipment operation.
For deployment, use it where the source and connected equipment require NEMA L5-30 connections. It is not appropriate for systems requiring another connector configuration or electrical rating.
Key Features
- 30A, 125VAC rating supports compatible power systems
- Locking L5-30 connectors help prevent accidental disconnection
- 10 AWG, 3-conductor SJT cable supports high-current loads
- 6 ft length provides flexible power-cable routing
- PVC jacket provides durable cable protection
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P046-006-LL-30A |
| Product Type | Power Extension Cord |
| Current Rating | 30 A |
| Voltage Rating | 125 VAC |
| Cable Length | 6 ft (1.83 m) |
| Wire Gauge | 10 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Input Connector | NEMA L5-30P |
| Output Connector | NEMA L5-30R |
| Connector Type | Locking |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Outer Cable Diameter | 14.6 mm |
| Operating Temperature | -10°C to 60°C |
| Device Compatibility | UPS, PDU |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
