Detailed Specifications

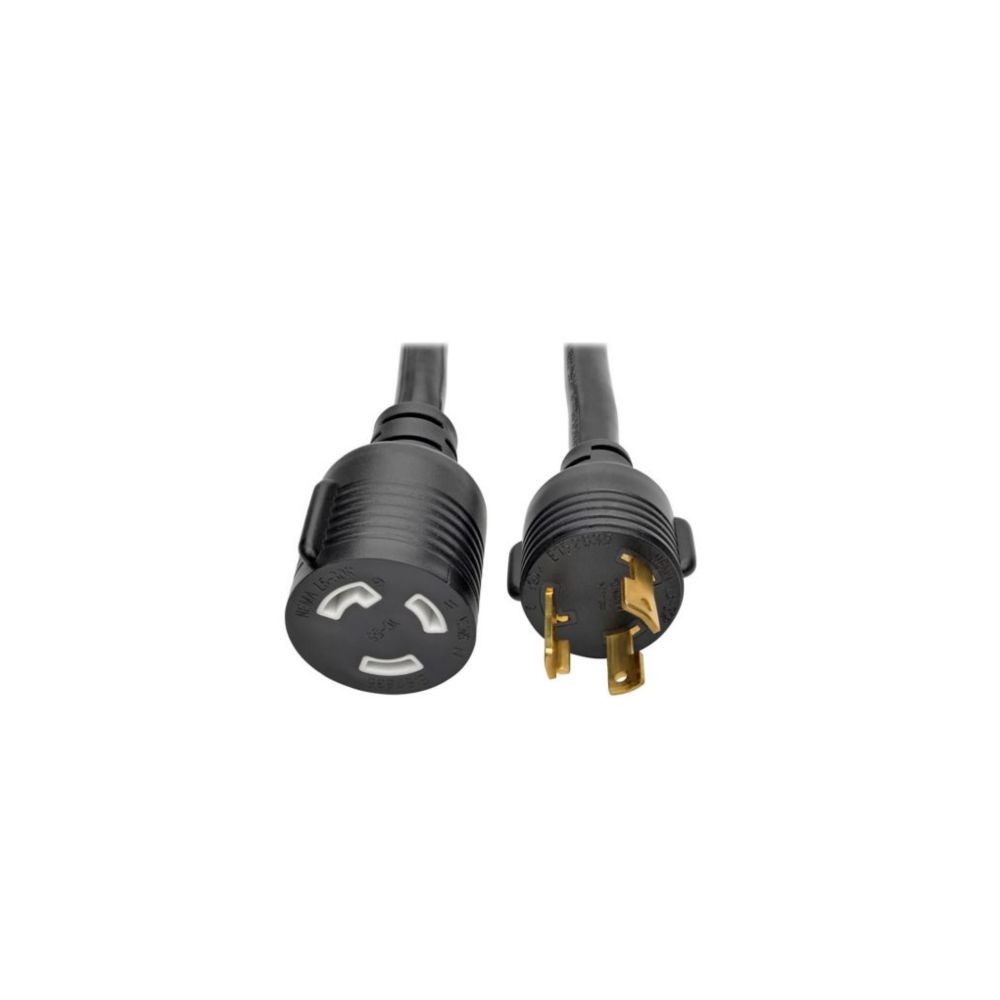

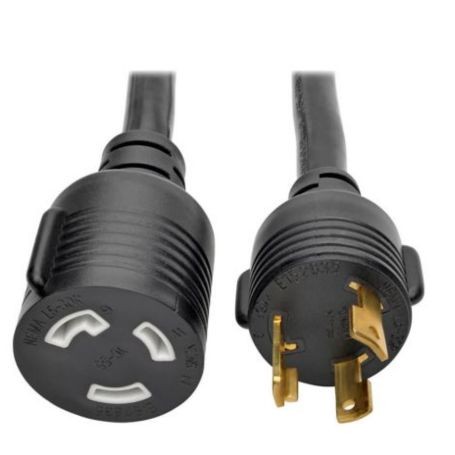

Eaton P046-015-LL-30ATripp Lite 15ft Power Extension Cord NEMA L5 30P NEMA
Overview :
Engineered for data center administrators and enterprise IT deployment teams, the Eaton Tripp Lite P046-015-LL-30A eliminates reach limitations and secures high-amperage power links for critical infrastructure.
It delivers a heavy-duty electrical capacity of 30A and 125V utilizing a thick 10 AWG 3-conductor copper layout, featuring twist-and-lock NEMA L5-30P and NEMA L5-30R connectors.
Optimized for extending power connections between high-density rack PDUs, UPS systems, network switches, and heavy-duty servers.
Fully compatible with standard NEMA L5-30 equipment plugs and receptacles.Do not use with standard non-locking household receptacles or circuits exceeding a 30-ampere threshold.
Key Features :
Twist-and-lock connectors prevent accidental disconnections.
Heavy 10 AWG wire gauge handles demanding power loads.
Generous 15-foot length provides flexible rack layout.
Durable PVC SJT jacket ensures long-term reliability.
UL-listed assembly complies with strict safety standards.
Specifications :
| Specification | Value |
| Brand | Eaton (Tripp Lite Series) |
| Part Number | P046-015-LL-30A |
| Product Type | Power Extension Cord |
| Current Rating | 30 A |
| Voltage Rating | 125 VAC |
| Wire Gauge | 10 AWG |
| Cable Length | 15 ft (4.57 m) |
| Connector A | NEMA L5-30P (Locking Plug) |
| Connector B | NEMA L5-30R (Locking Outlet) |
| Jacket Material | PVC (SJT), VW-1 Rated |
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
| Certifications | UL Listed, cUL Listed, RoHS |
