Detailed Specifications

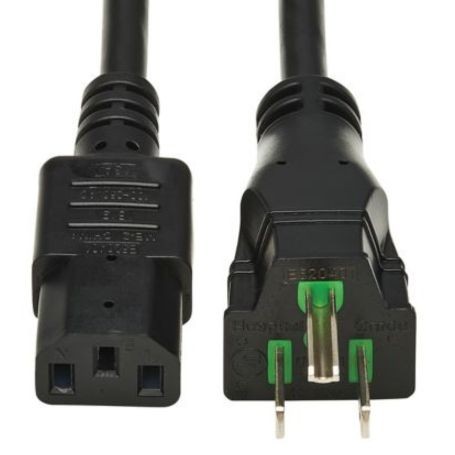

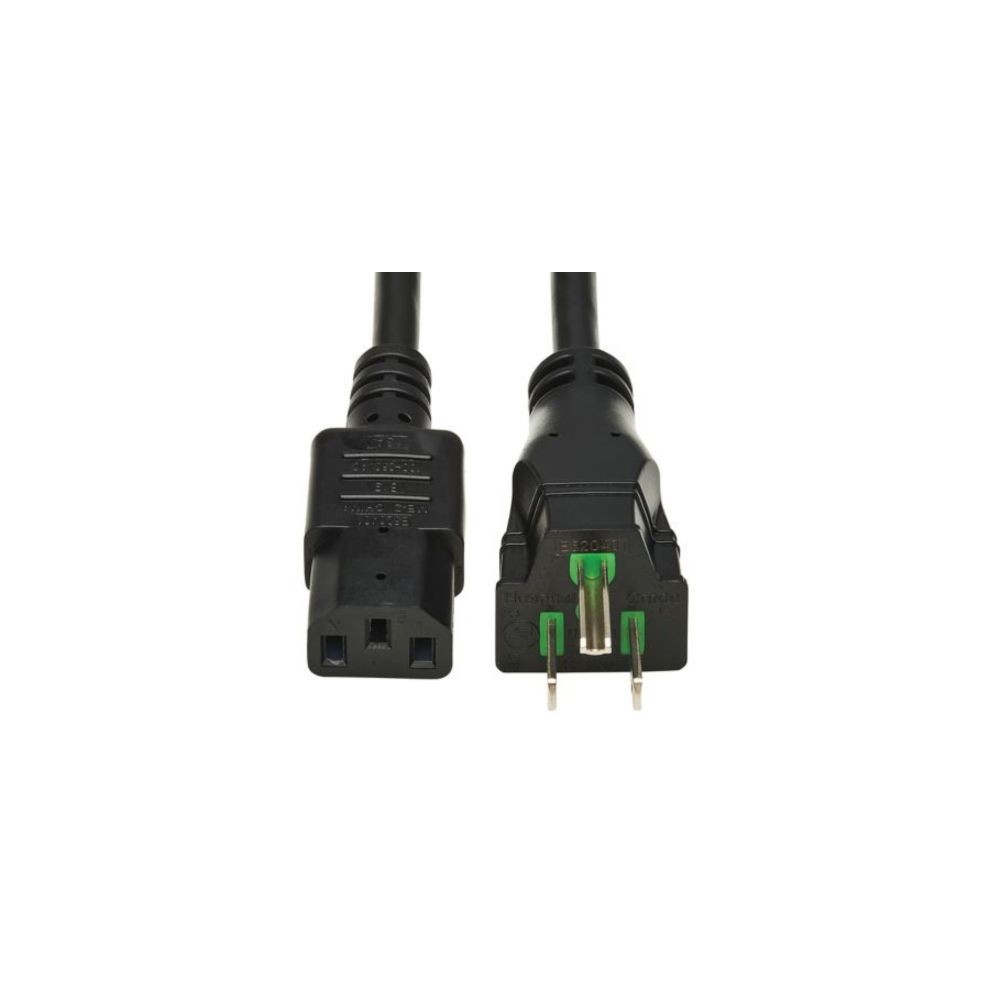

Eaton P006AB-006-HG Tripp Lite 6ft Safe IT Antibacterial Hospital Grade Power Cord 5 15P to C13
Overview
The Eaton Tripp Lite P006AB-006-HG is a Safe-IT antibacterial hospital-grade power cord with a NEMA 5-15P plug and IEC 60320 C13 connector. It is intended for compatible computers, monitors, printers, servers, UPS systems, PDUs, and mobile carts in healthcare environments.
The cord is rated for 13A at 125VAC, uses 16 AWG, 3-conductor SJT cable, and has a 6 ft (1.8 m) length. The cable and connectors use antibacterial material designed to inhibit growth of E. coli and Staphylococcus aureus.
For deployment, the NEMA 5-15P side connects to a compatible hospital-grade AC power source and the C13 side connects to equipment with a C14 inlet. Eaton recommends it for outlets outside patient-care vicinities.
It should not be selected where the equipment requires a different inlet, connector configuration, voltage/current rating, or a non-North-American power connection.
Key Features
- 13A, 125VAC rating supports compatible equipment loads
- 5-15P to C13 connectors fit common AC equipment
- 16 AWG, three-conductor SJT cable supports power delivery
- Antibacterial construction targets E. coli and staph growth
- 6 ft length provides flexible equipment placement
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P006AB-006-HG |
| Product Type | Hospital-grade power cord |
| Voltage Rating | 125 VAC |
| Maximum Current | 13 A |
| Cable Length | 6 ft (1.8 m) |
| Wire Gauge | 16 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Input Connector | NEMA 5-15P |
| Output Connector | IEC 60320 C13 |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Operating Temperature | -20°C to 105°C |
| Operating Humidity | 20%-80% RH, non-condensing |
| Certifications / Compliance | UL, cUL, CSA, REACH, RoHS, FT2 |
