Detailed Specifications

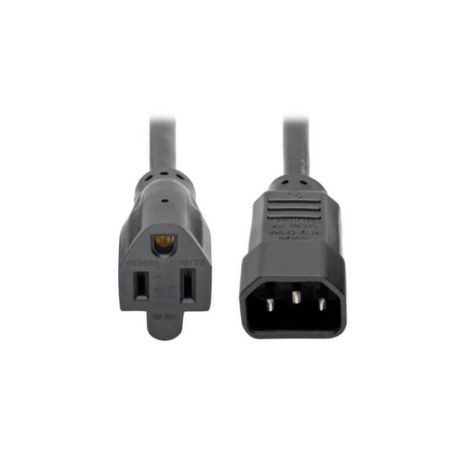

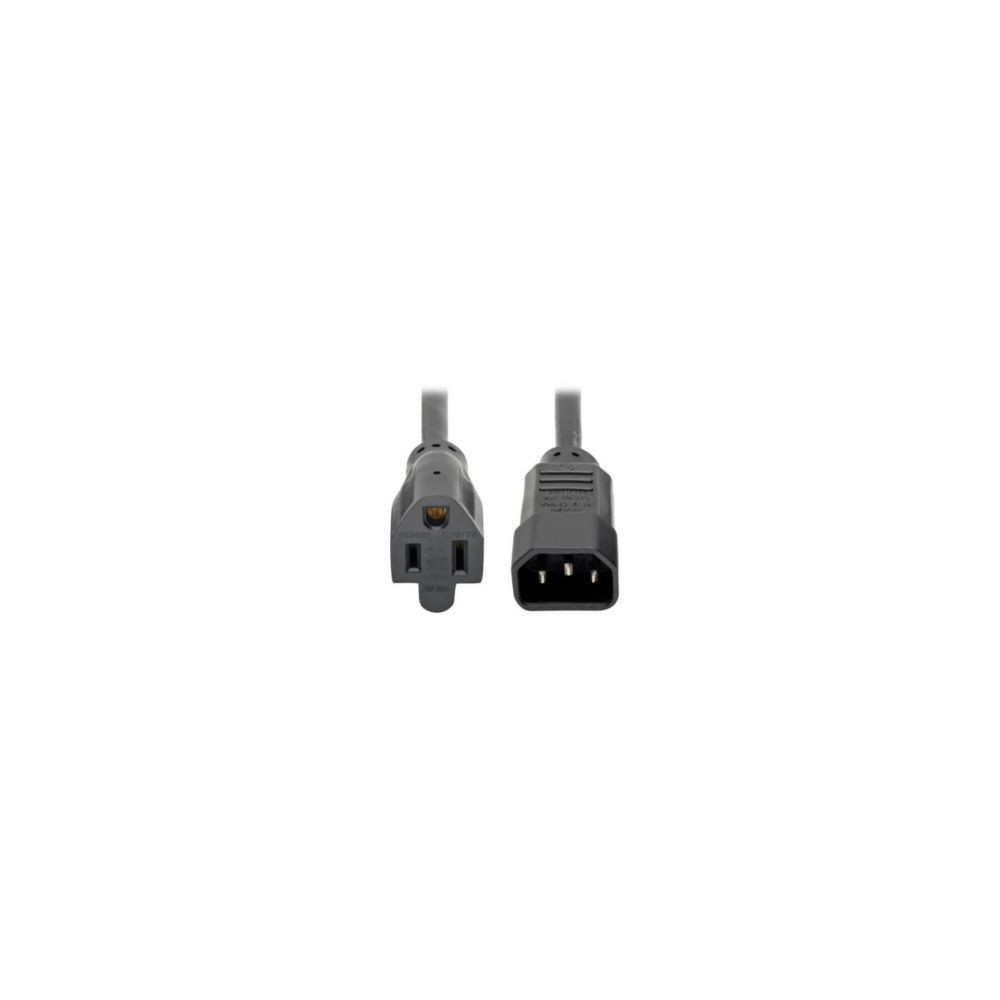

Eaton P002-001-13A Tripp Lite 1ft C14 to NEMA 5-15R Power Cord
Overview
The Eaton P002-001-13A, from the Tripp Lite series, is a 1 ft (0.30 m) AC power cord with an IEC-320-C14 male plug and NEMA 5-15R female receptacle. It is designed for connecting equipment with a standard NEMA 5-15P power plug to C13 outlets on compatible UPS systems, PDUs and power distribution equipment.
The cord uses 16 AWG, 3-conductor SJT construction, supports 13A at 125V, and has an unshielded black PVC jacket. Its compact 1 ft length is suitable where a short connection is preferred to reduce excess cable in racks and equipment installations.
Key Features
- IEC-320-C14 male to NEMA 5-15R female connector configuration.
- Rated for 13A at 125V AC applications.
- Uses 16 AWG, 3-conductor SJT power-cord construction.
- Compact 1 ft (0.30 m) length helps minimize cable clutter.
- Black PVC jacket with molded straight connectors for equipment and PDU/UPS connections.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number | P002-001-13A |
| Product Type | AC Power Cord |
| Cable Length | 1 ft (0.30 m / 12 in) |
| Connector 1 | IEC-320-C14 Male |
| Connector 2 | NEMA 5-15R Female |
| Connector Configuration | C14 Male to NEMA 5-15R Female |
| Current Rating | 13A |
| Voltage Rating | 125V AC |
| Number of Conductors | 3 |
| Wire Gauge | 16 AWG |
| Cord Type | SJT |
| Shielding | Unshielded |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Connector Style | Straight |
| Connector Type | Molded |
| Latching / Gripping Connector | No |
| Angled Connector | No |
| Cable Outer Diameter | 8.5 mm (0.33 in) |
| Operating Temperature | -4° to 140°F (-20° to 60°C) |
| Storage Temperature | -4° to 140°F (-20° to 60°C) |
| Relative Humidity | 10%-65% RH |
| Packaging Type | Polybag |
| Warranty | Lifetime Limited |
