Detailed Specifications

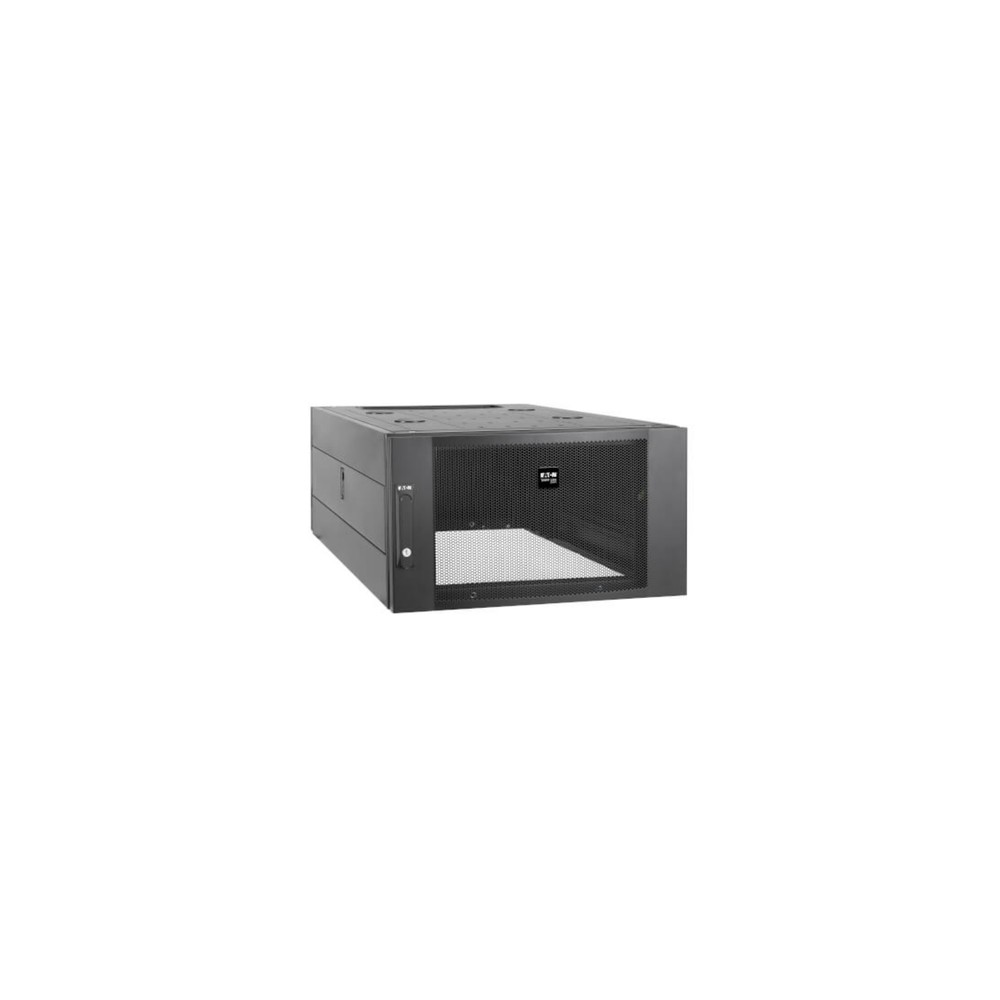

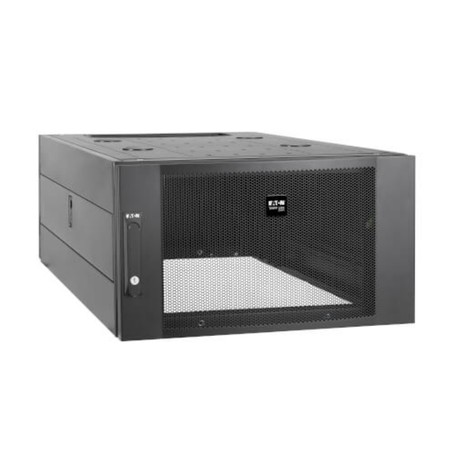

Eaton SRTH6UB SmartRack 6U Rack Extension
Overview
The Eaton SRTH6UB is a SmartRack 6U "top hat" rack extension designed to expand the usable rack space of compatible Eaton floor-standing enclosures without increasing floor footprint.
It is deployed in enterprise data centers, telecom rooms, colocation environments, and structured IT installations where additional rack capacity is required but additional cabinet floor space is not available.
The module mounts directly on top of a standard-depth SmartRack enclosure and adds 6U of additional rack space with integrated locking doors, side panels, and adjustable 19-inch mounting rails.
It is commonly used for mounting patch panels, network switches, PDUs, and lightweight IT equipment in vertical expansion configurations. It is not intended for heavy server loads or standalone floor mounting.
Key Features
- Adds 6U of vertical rack space to existing enclosures
- Compatible with standard-depth SmartRack cabinets
- Locking doors and side panels improve physical security
- Adjustable 19-inch rails support standard IT hardware
- Includes grounding points and full installation hardware
Specifications
| Parameter | Value |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | SRTH6UB |
| Product Type | Rack Cabinet Extension (Top Hat) |
| Rack Height | 6U |
| Rack Width | 19-inch EIA |
| Rack Depth | Standard depth |
| External Width | 23.6 in (600 mm) |
| External Height | 13.3 in (338 mm) |
| External Depth | 43 in (1092 mm) |
| Mounting Rails | 4 adjustable rails |
| Device Compatibility | Switches, servers, PDUs, patch panels |
| Door Type | Locking reversible front door |
| Side Panels | Locking removable panels |
| Cable Access | Top access ports + open bottom routing |
| Material | Steel |
| Color | Black powder coat |
| Compliance | RoHS, CE, FCC |
| Certifications | UL 60950-1 |
| Warranty | 5-year limited warranty |
