HPEJW325A

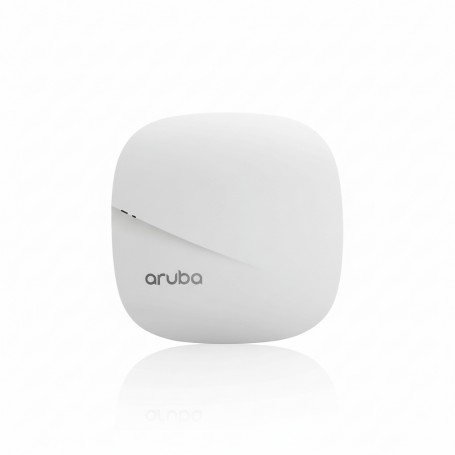

ArubaIAP325 Instant Wireless Access Point

The HPEArubaJW325A (IAP-325) Instant Wireless Access Point delivers robust dual-radio 802.11ac performance in a compact ceiling- or wall-mountable form. Featuring two radios with 4×4 MU-MIMO support and integrated BLE capabilities, it achieves up to 1.733 Gbps throughput on the 5 GHz band and 800 Mbps on 2.4 GHz (2.5 Gbps aggregate). Ideal for dense enterprise, education, or retail environments, the IAP-325 offers Arubaenhanced ClientMatch and Adaptive Radio Management (ARM) technologies to deliver high capacity, interference-aware RF, and optimal client steering. With its built-in BLE beacon radio, the AP supports location-based services and smart beacon management, while the compact integrated antenna design simplifies installation and reduces cabling clutter

Features

The IAP-325 delivers enterprise-grade WLAN performance using IEEE 802.11ac Wave 2 standards, supporting Dual-Band operation with eight embedded omni-directional downtilt antennas calibrated for ceiling deployment. Its radios support up to four spatial streams per band, delivering maximum aggregate rates of 1.733 Gbps in 5 GHz (ac VHT80) and 600-800 Mbps in 2.4 GHz, depending on client capabilities. ArubaARM dynamically adjusts RF power and channel selection to avoid interference and optimize airtime fairness across clients, while ClientMatch intelligently steers MU-MIMO capable clients to the best AP×boosting network efficiency in crowded spacesBeyond Wi-Fi, the integrated Bluetooth Low-Energy radio supports ArubaBeacon services for proximity-based applications and indoor location services. The AP supports modes including Instant virtual controller, air monitoring, spectrum analysis, secure mesh, and RAP deployments×all configurable through ArubaInstant or ArubaCentral management platforms. Installation is straightforward via PoE+ (802.3at) or DC power; backed by a dual Gigabit RJ-45 port design (with PoE-PD support and optional second port redundancy), USB ports for 3G/4G modems, and console access via RJ-45 serial port

Advanced Options

Designed for high-density enterprise environments, the IAP-325 delivers consistent, high-throughput Wi-Fi performance thanks to its 4×4 MU-MIMO radios and integrated beamforming capabilities. Adaptive Radio Management ensures optimal channel use and power levels for interference mitigation, while airtime fairness ensures balanced access across client types×even when many older devices share the network ClientMatch improves performance and reliability by intelligently steering MU-MIMO-capable clients to the best AP, reducing user contention and boosting aggregate network capacity

Product Key Features

• • Dual-band 802.11ac Wave 2 radios with MU-MIMO 4×4:4

  • Up to 2.5 Gbps aggregate throughput (1.733 Gbps @ 5 GHz + 800 Mbps @ 2.4 GHz)

  • Integrated Bluetooth Low-Energy (BLE) beacon radio

  • ArubaClientMatch and Adaptive Radio Management (ARM)

  • Multi-mode functionality: Instant AP, monitoring, mesh, spectrum analysis, RAP

  • Dual Gigabit Ethernet ports with PoE-PD support, USB & console access

---

Reliability & Performance

The integrated BLE radio enables beacon-based location and wayfinding services, making it well-suited for retail or enterprise environments using proximity analytics or navigation tools. Rated for PoE+ power and optionally DC power, installation remains tidy and reduces cabling complexity. Its compact form factor, with eight built-in antennas optimized for ceiling placement, minimizes visual footprint while delivering reliable connectivity across moderate coverage areas.

Key Features :

• Dual-band MU-MIMO (4×4:4) radios

• Up to 2.5 Gbps total throughput

• BLE beacon built-in

• ClientMatch and ARM RF technologies

• Instant mode, mesh, monitoring, and RAP deployment

• Dual Gigabit ports, PoE-PD, USB, console support

Specification	Details
Model Number	JW325A (ArubaInstant IAP-325)
Product Type	Dual-band 802.11ac Wave 2 MU-MIMO Wireless Access Point
Wireless LAN Standard	IEEE 802.11a/b/g/n/ac (Wave 2)
Frequency Bands	2.4 GHz and 5 GHz
Max Data Rate	2.5 Gbps (1.733 Gbps @5 GHz; 800 Mbps @2.4 GHz)
Antennas	8 internal omni-directional downtilt antennas
Ports	2 × Gigabit Ethernet (RJ-45), USB, Serial console
Power Options	IEEE 802.3at PoE+ or 12V DC input
Dimensions (H × W × D)	~2.2″ × 8″ × 8″ (~55 × 203 × 203 mm)
Mounting Options	Wall or ceiling mount
Special Radios	Built-in Bluetooth Low-Energy (BLE)
Deployment Modes	Instant AP, mesh, AIR monitor, RAP, spectrum analyzer
