Detailed Specifications

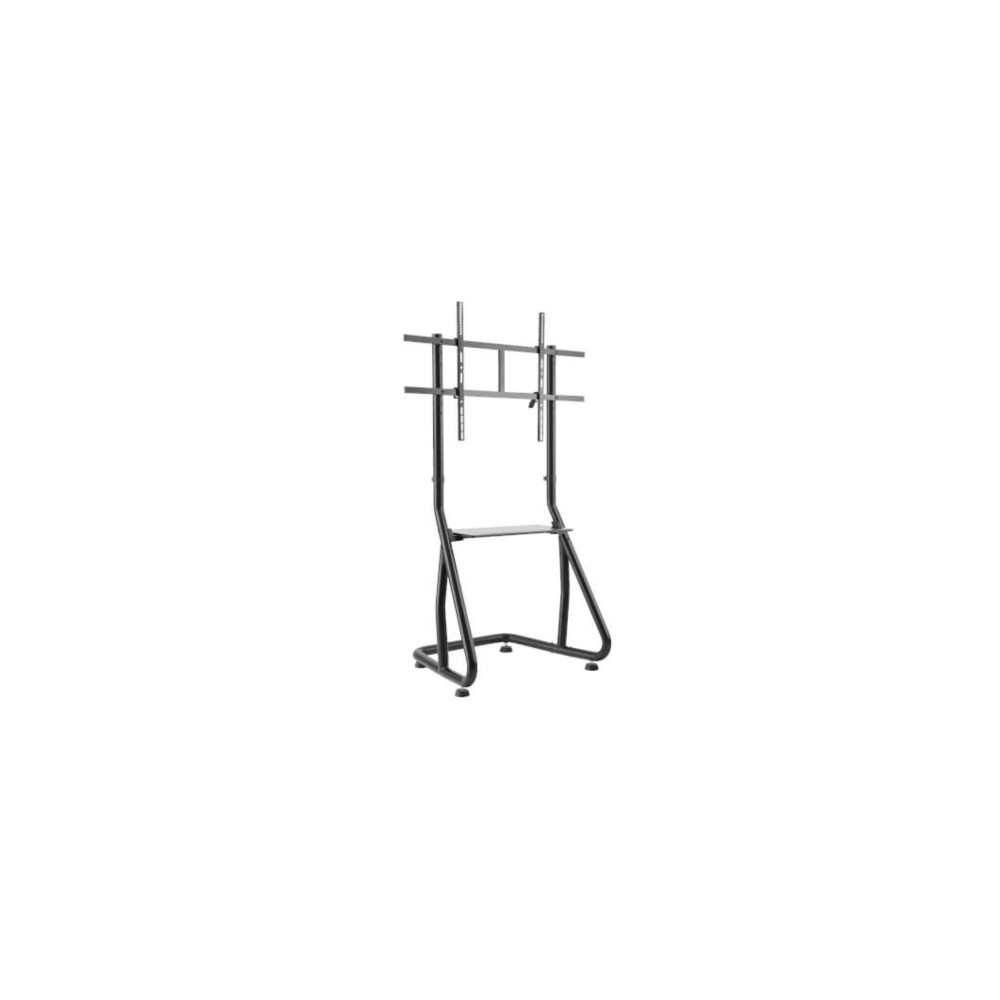

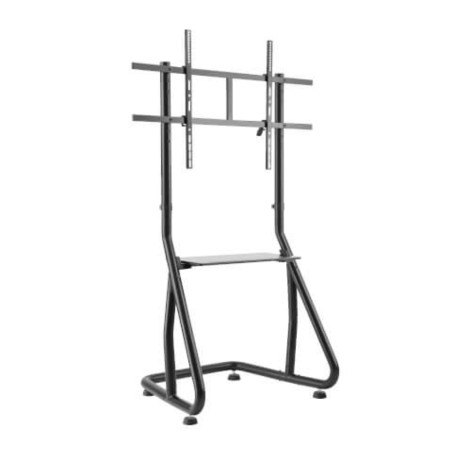

Eaton DMCS60105HDS Streamline Landscape Mobile Cart Display Rolling Cart
Overview :
The Eaton DMCS60105HDS is a heavy-duty streamline landscape mobile cart from the Tripp Lite series. AV deployment technicians and corporate facilities procurement teams use this mobile stand to deploy large-format digital signage and interactive displays across shared corporate white spaces. By providing a structurally sound, mobile mounting base, it addresses the challenge of setting up temporary high-value collaborative displays or electronic whiteboards where a permanent wall mount is not feasible.
The platform is engineered to support flat-panel displays ranging from 60 to 105 inches in size, with a maximum load capacity rating of 220 pounds.It features an adjustable equipment shelf positioned below the screen mounting plate that supports laptops, media players, or webcams weighing up to 55 pounds. To prevent unauthorized equipment removal in high-traffic public areas, the chassis includes an integrated anti-theft locking hole equipped with a four-position mechanical combination lock.
The cart features a robust hybrid frame built from premium aluminum and high-tensile steel, mounted on four heavy-duty swivel casters that roll easily over commercial carpets and hard floors. All four casters are equipped with independent locking mechanisms to firmly secure the stand in place during presentations. For installations where permanent static positioning is preferred, the unit also ships with interchangeable leveling feet to adapt to uneven flooring surfaces.
The DMCS60105HDS features an open-frame VESA mounting interface that supports hole patterns including 400x400, 600x400, 800x400, 800x600, and 1000x600 mm.Integrated cable management clips line the vertical legs to keep equipment cords organized and prevent dangerous tripping hazards. This mobile cart must not be utilized for displays smaller than 60 inches, equipment loads exceeding 220 pounds altogether, or in configurations requiring a vertical portrait display orientation.
Key Features :
Universal VESA plate accommodates heavy 60 to 105 inch flat panels
Heavy-duty locking metal casters stabilize the stand during active use
Four-position combination lock safeguards displays in public spaces
Low-profile component shelf holds up to 55 pounds of auxiliary gear
Modular cable routing clips eliminate exposed cord clutter along legs
Specifications :
| |
| Brand | Eaton |
| Part Number | DMCS60105HDS |
| Product Type | Mobile Display Rolling Cart |
| Product Line | Streamline Series |
| Supported Display Sizes | 60 to 105 Inches (152 to 267 cm) |
| Display Orientation | Landscape Mode Only |
| Maximum Weight Capacity | 220 lbs (100 kg) |
| VESA Mount Standards | 400x400, 600x400, 800x400, 800x600, 1000x600 mm |
| Structure Material | Aluminum and Steel Frame |
| Finish Color | Matte Black |
| Peripheral Shelf Capacity | 55 lbs (25 kg) |
| Mobility Hardware | (4) Swivel Casters with Locking Brakes |
| Base Adaptation Options | Interchangeable Leveling Feet Included |
| Security Hardware | Anti-Theft Locking Hole with 4-Digit Combo Lock |
| Environmental Compliance | RoHS |
