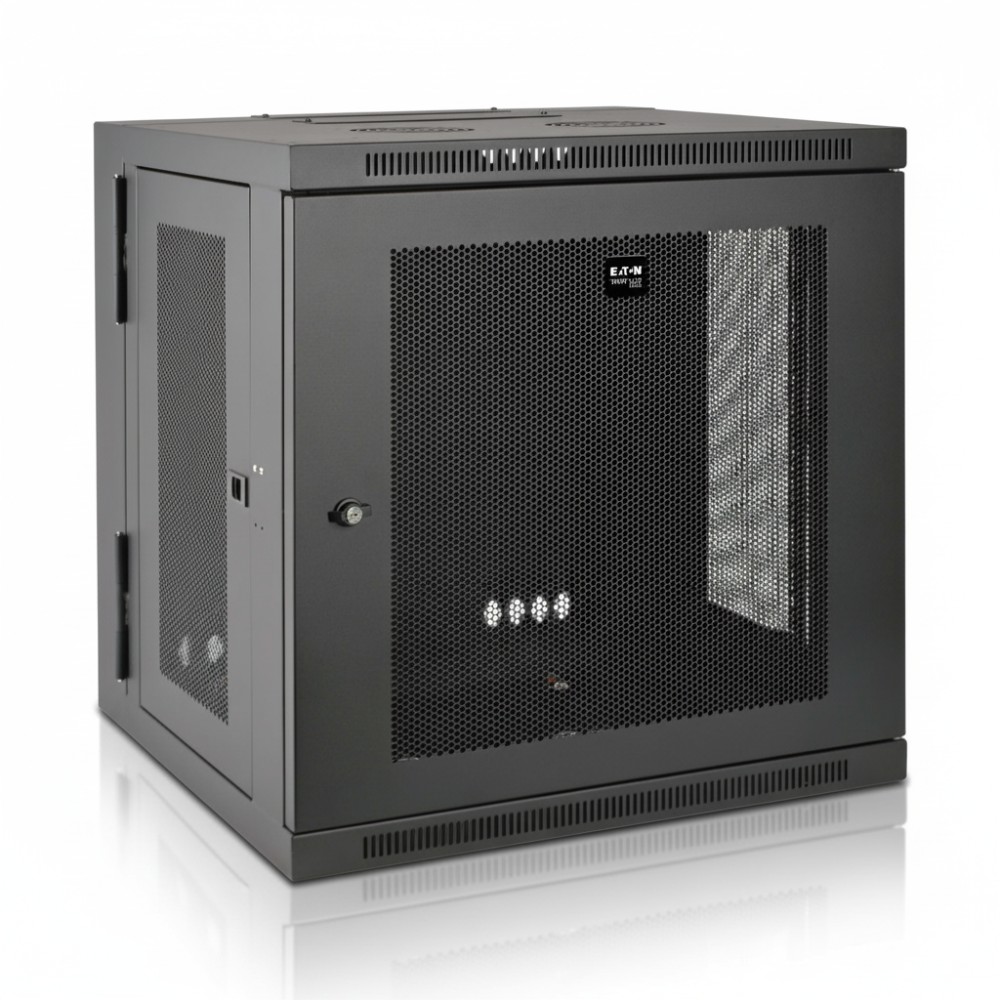

Eaton SRW12US - 12U Wall-Mount Rack Enclosure
Overview
The Eaton SRW12US is a 12-rack-unit 19-inch wall-mount enclosure cabinet designed to house IT and networking equipment where floor space is limited or equipment needs to be positioned off the ground. It is deployed by network engineers, facilities teams, and IT technicians in wiring closets, retail closets, classrooms, and branch offices to organize and secure patch panels, switches, routers, UPS units, and small servers in a compact, accessible enclosure.
This enclosure supports 12U of usable rack space and accommodates rack-mount devices with adjustable rails that can be set for shallow or switch-depth gear. The enclosure has a maximum load capacity of 200 lb (≈90.7 kg), suitable for typical branch-office network components such as small UPS units, power strips, switches, and patch panels.
The enclosure is intended for wall mounting using included brackets, freeing up floor space and elevating equipment for ease of access and improved airflow. A front lockable door and removable side panels provide equipment security while allowing cable routing through top and bottom cutouts. Ventilation on the front, sides, top, and bottom supports passive airflow through the cabinet to help keep installed devices within recommended operating temperatures.
Integration with standard IT infrastructure is straightforward because the cabinet meets EIA-310-E rack standards and supports numbered vertical mounts that accept square-hole or threaded-hole rack gear. The hinged wall plate allows the cabinet to swing outward for service access without removing rack-mounted devices, simplifying cable management and maintenance.
A practical deployment example is housing a wall-mounted consolidation rack in a telecommunications closet that contains a small unmanaged switch, VoIP gateway, patch panels, and a compact UPS, improving organization and reducing floor clutter. This cabinet is not recommended for deep-chassis servers or heavy compute stacks × in those cases, a floor-standing full-depth rack is preferable.
Key Features
- 12U 19″ wall-mount rack enclosure, swing-out design
- Adjustable vertical rails for shallow to switch-depth gear
- Lockable vented front door + removable side panels
- Top/bottom cable access and airflow vents
- 200 lb (≈90.7 kg) load capacity
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SRW12US |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Height | 12U |
| Rack Width | 19 in (EIA-310 standard) |
| Load Capacity (Static) | 200 lb (≈90.7 kg) |
| Adjustable Rack Depth | 3 in to 20.5 in (~76 mm to 520 mm) |
| Mounting | Wall mount, swing-out hinge |
| Door Type | Lockable, reversible |
| Side Panels | Removable, locking |
| Ventilation | Vented panels (front/top/side/bottom) |
| Cable Entry/Exit | Top and bottom cable access ports |
| Vertical Rails | 4 adjustable rack rails |
| External Height | ~25 in (≈635 mm) |
| External Width | ~23.6 in (≈600 mm) |
| External Depth | ~21.6 in (≈549 mm) |
| Weight (Approx) | ~60 lb |
| Finish | Black powder coat |
| Compliance | EIA-310-E, RoHS |
