Detailed Specifications

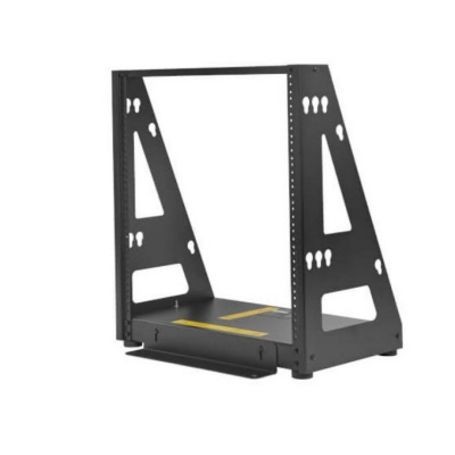

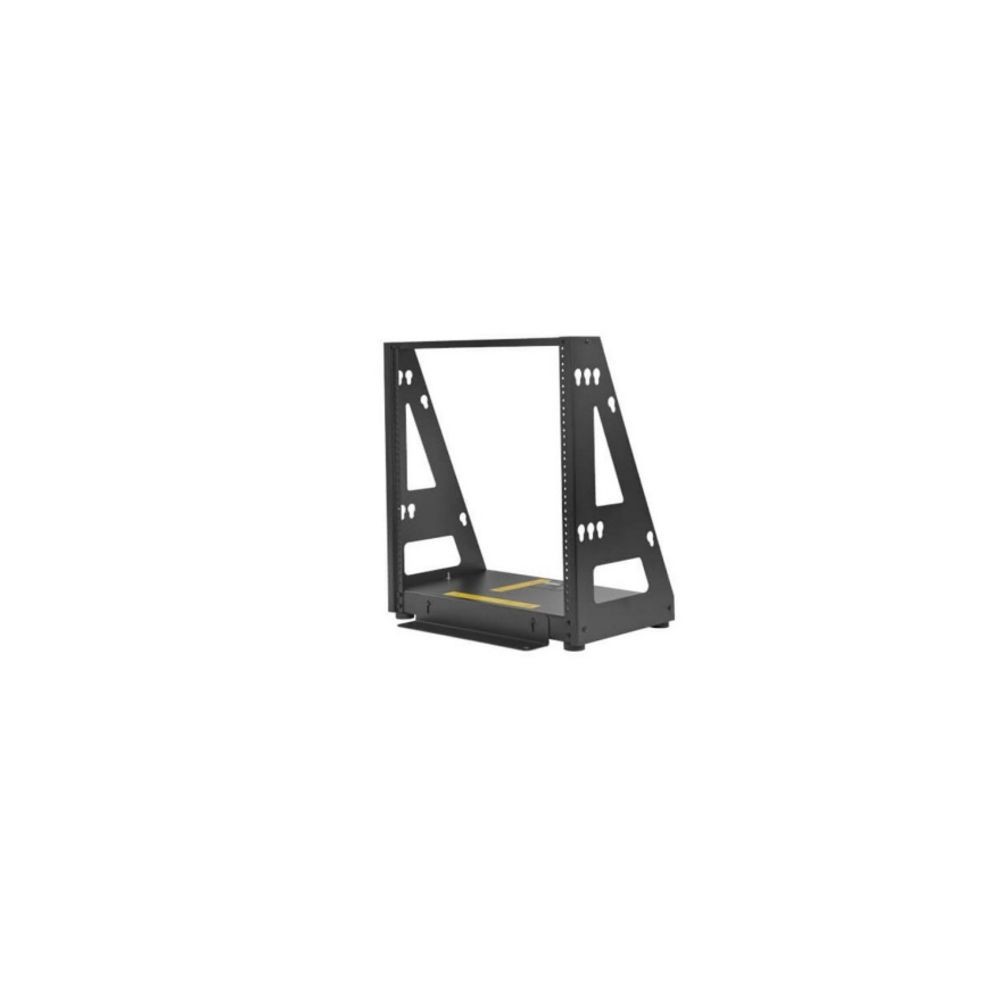

Eaton SR2POST12HD Tripp Lite SmartRack Heavy-Duty 12U 2-Post Open Frame Rack
Overview
The Eaton SR2POST12HD is a Tripp Lite by Eaton SmartRack Heavy-Duty 12U 2-Post Open Frame Rack designed to mount and organize standard 19-inch rack equipment in space-constrained IT environments. The open-frame design provides front and rear access to installed equipment and cabling.
The rack uses heavy-duty powder-coated steel construction and supports a maximum stationary load of 350 lb (159 kg). Its cantilever design supports equipment up to 12 inches deep, while side keyhole slots provide tool-less 0U mounting for compatible PDUs and cable managers.
It is suitable for network closets, server rooms, data-center areas, laboratories, test setups, retail locations, classrooms and other installations requiring compact rack infrastructure with easy equipment access.
Key Features
- 12U 2-post open-frame rack for standard 19-inch rack equipment.
- 350 lb (159 kg) maximum stationary load capacity for heavy IT equipment.
- Heavy-duty powder-coated steel construction for demanding installations.
- 12-inch maximum equipment depth with a stable cantilever design.
- Tool-less 0U mounting keyholes support compatible PDUs and cable managers.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite by Eaton |
| Model | SR2POST12HD |
| Product Type | 2-Post Open Frame Rack |
| Rack Series | SmartRack |
| Rack Height | 12U |
| Rack Width | 19 in |
| Rack Type | Open Frame |
| Number of Posts | 2 |
| Mounting Rails | 12-24 threaded, numbered vertical rails |
| Maximum Equipment Depth | 12 in / 30.48 cm |
| Maximum Static Load | 350 lb / 159 kg |
| Construction | Heavy-Duty Steel |
| Finish | Black Powder Coat |
| Ventilation | Open Frame / Non-Vented |
| Mounting | Floor, shelf or workbench; securement brackets provided |
| 0U Mounting | Tool-less keyhole slots for compatible PDUs/cable managers |
| Overall Dimensions | 24.61 × 20.69 × 11.70 in |
| Product Weight | 20 lb |
| Certifications | UL 62368-1; CAN/CSA-C22.2 No. 62368-1 |
| Compliance | RoHS |
| UPC | 037332258540 |
| Warranty | 5-Year Limited Worldwide |
