Detailed Specifications
Eaton P004-002-13A 2 ft C14 to C13 PDU Power Cable - Compatible Tripp Lite
Overview :

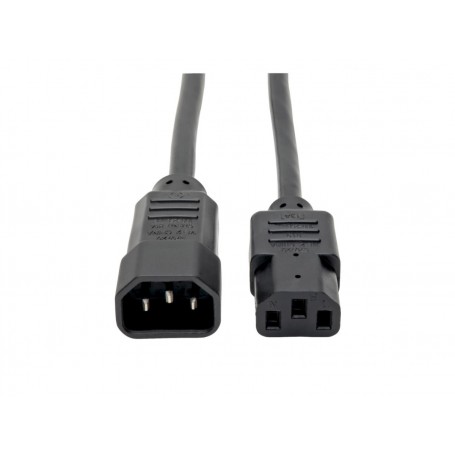

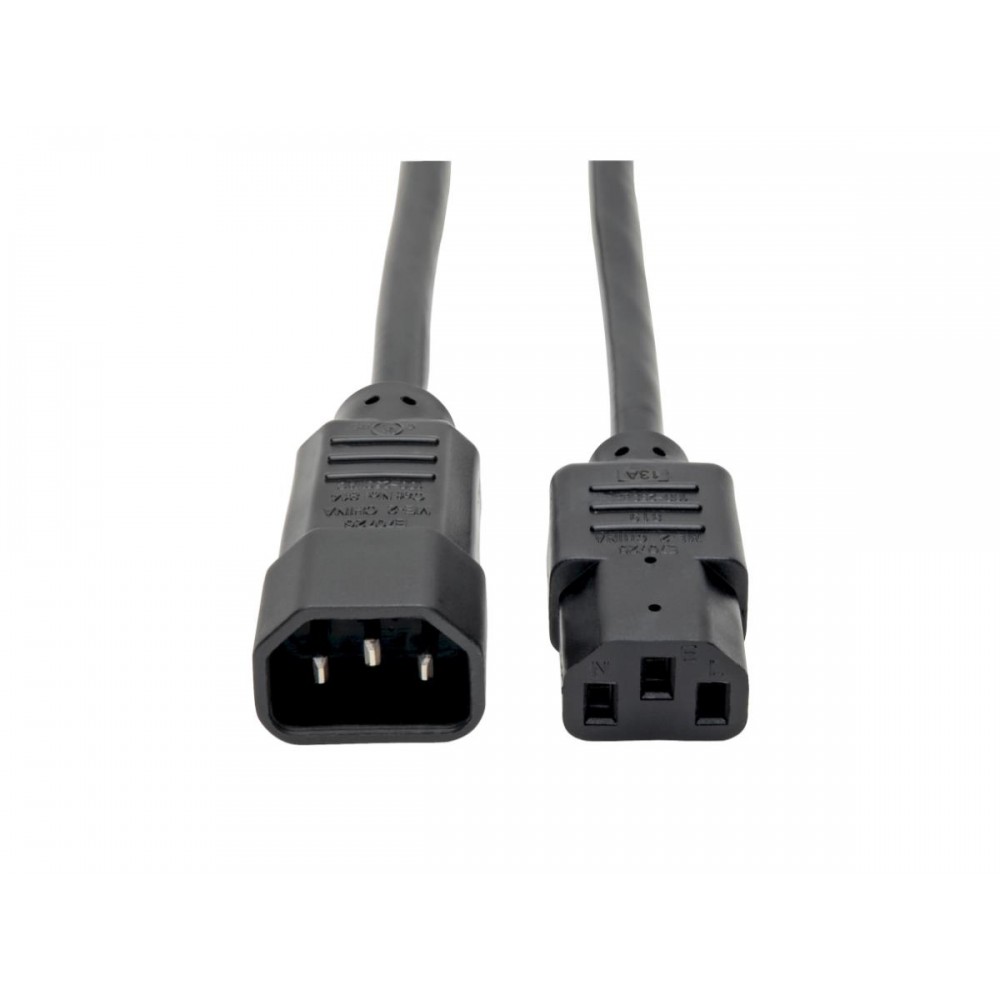

The Eaton P004-002-13A is a 2-foot (0.61 m) PDU-style AC power cable with an IEC 60320 C14 male connector and IEC 60320 C13 female connector. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton identifies it as an Eaton Tripp Lite series PDU power cord.
The cable is designed to connect equipment with a C14 power connection directly to C13 outlets on a PDU or UPS, or to extend an existing C14-to-C13 power connection by 2 feet. Eaton specifically lists compatibility with servers, computers, printers, monitors/HDTVs, PDUs and UPS systems.
The P004-002-13A uses 16 AWG, 3-conductor SJT cable and is rated for 13A at 100-250 VAC. It features a black PVC jacket with a VW-1 rating and straight black connectors for rack, data-center and general IT power-distribution applications.
Key Features :
- 2 ft. (0.61 m) power cable
- IEC 60320 C14 male to C13 female
- 13A current rating
- 100-250 VAC voltage rating
- 16 AWG construction
- 3 conductors
- SJT cable type
- Black PVC jacket
- VW-1 jacket rating
- Straight connector configuration
- Designed for PDU and UPS connections
- Suitable for servers, computers, printers and monitors
- UL Listed, cUL Listed and CSA certified
- RoHS and REACH compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P004-002-13A |
| Product Type | PDU power cord |
| Cable Length | 2 ft. (0.61 m) |
| Connector A | IEC 60320 C14 Male |
| Connector B | IEC 60320 C13 Female |
| Current Rating | 13A |
| Voltage Rating | 100-250 VAC |
| Wire Gauge | 16 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Jacket Rating | VW-1 |
| Outer Cable Diameter | 8.5 mm |
| Connector Style | Straight |
| Shielding | Unshielded |
