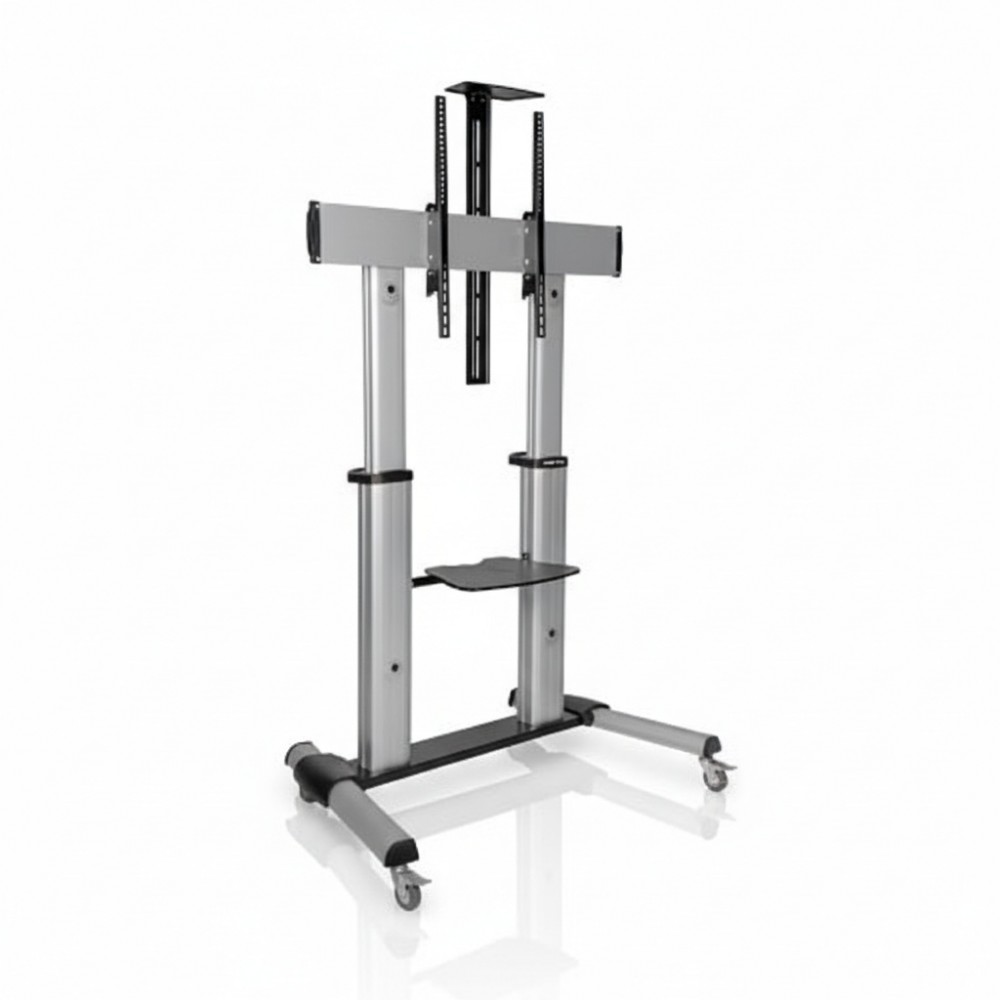

Eaton DMCS60100XX Heavy-Duty Rolling TV Stand 60-100″
Overview :
The Eaton DMCS60100XX is a heavy-duty rolling display stand designed to support, adjust, and mobilize large flat-panel TVs, interactive whiteboards, monitors, and AV displays. AV integrators, IT managers, and facilities engineers deploy it where flexible screen placement is needed × such as classrooms, conference rooms, auditoriums, and multipurpose spaces × without committing to a fixed wall mount or permanent install.
This cart accommodates most displays 60″ to 100″ (152-254 cm) with a maximum load capacity up to ~220 lb (99.8 kg) on a robust aluminum/steel frame. Height adjustment from approximately 47″ to 65″ above the floor enables ergonomic viewing for audiences of varying size and viewing distance.
Because it mounts directly to a standard VESA pattern range from 200×200 mm up to 1000×600 mm, it supports a broad range of modern large displays and interactive whiteboards. Four lockable swivel casters allow smooth relocation across rooms or over thresholds and secure positioning once deployed.
Integrated cable routing channels within the columns help organize power and signal cords to maintain a professional, clutter-free look. Optional placement of peripherals such as webcams, laptops, or media players on adjustable shelves expands utility for presentations and conferencing installations.
In a practical deployment, the DMCS60100XX is used to roll a large display into a meeting area for collaborative sessions, relocate signage between event spaces, or temporarily position an interactive board for instruction. It should not be specified where fixed wall mounting or permanent structural support is mandated by building or seismic regulations, or where screens exceed its size/weight range.
Key Features
Supports one flat/curved display 60″-100″ up to ~220 lb
Adjustable display height ~47″-65″ above floor
VESA 200×200 to 1000×600 mounting
Four lockable swivel casters for mobility and stability
Integrated cable management channels
Specifications
| Specification | Detail |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | DMCS60100XX |
| Product Type | Heavy-Duty Rolling TV/Display Cart |
| Supported Display Size | 60″ - 100″ diagonal |
| Maximum Load Capacity | ~220 lb (≈99.8 kg) |
| VESA Mount Compatibility | 200×200 to 1000×600 mm |
| Height Adjustment | ~47″ (1194 mm) to ~65″ (1651 mm) |
| Tilt Adjustment | +5° to −10° for optimal viewing |
| Mounting Type | Floor/rolling cart |
| Material | Aluminum and steel frame |
| Casters | 4 lockable swivel wheels |
| Cable Management | Integrated openings in columns |
| Shelves | Adjustable peripheral shelves (AV devices, webcams) |
| Color | Black/Silver |
| Dimensions (Approx) | ~46″ H × 44″ W × 27.6″ D |
| Weight | ~61 lb (~27.7 kg) |
| Compliance | RoHS |
| Warranty | 5-year limited |
| Country of Origin | China |
