Detailed Specifications

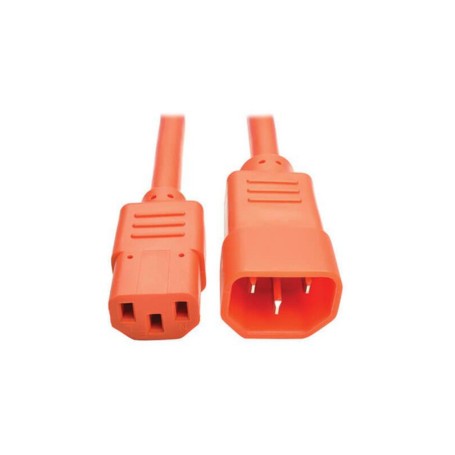

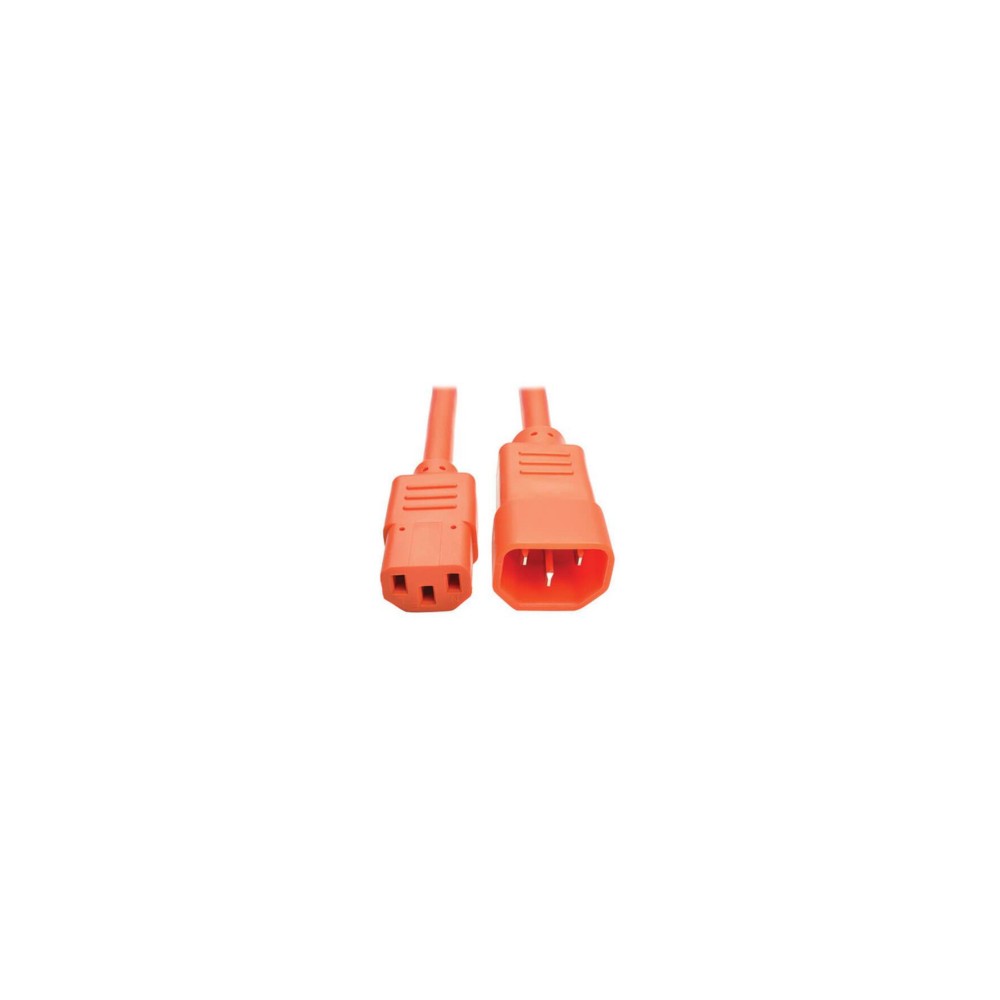

Eaton P004-003-AOR PDU Power Cord C13 to C14 Compatible Brand Tripp Lite
Overview :
The Eaton P004-003-AOR is a standard computer and PDU power extension cord with an IEC-320-C14 male connector and IEC-320-C13 female connector. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. The cable is designed to replace worn power cords or extend an existing power connection by 3 ft.
The cord measures 3 ft. (0.91 m) and uses 18 AWG, 3-conductor SJT cable. It is rated for 10A and up to 250V and is suitable for computers, servers, printers, scanners, monitors, UPS systems and PDUs.
The cable features an orange jacket and molded orange connectors, making it easier to identify in crowded racks and workstations. The flexible SJT construction supports easier routing in tight spaces.
Key Features :
- 3-ft. (0.91 m) PDU power extension cord
- C14 male to C13 female configuration
- 10A current rating
- Up to 250V voltage rating
- 18 AWG, 3-conductor SJT cable
- Orange cable jacket and molded connectors
- Designed for computers, servers, printers and monitors
- Suitable for UPS and PDU connections
- Flexible SJT construction
- UL Listed
- RoHS compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P004-003-AOR |
| Product Type | PDU Power Cord |
| Cable Length | 3 ft. (0.91 m) |
| Connector A | IEC-320-C14 Male |
| Connector B | IEC-320-C13 Female |
| Connector Configuration | Male-to-Female |
| Voltage Rating | 250V |
| Current Rating | 10A |
| Wire Gauge | 18 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Cable Jacket Color | Orange |
| Connector Color | Orange |
| Shielding | Unshielded |
| Compatible Equipment | Computer, Server, Printer, Scanner, Monitor, UPS, PDU |
| Operating Temperature | -20°C to 60°C |
| Certifications | UL Listed |
| Compliance | RoHS |
