Eaton SR48UBEXPNDNR3 48U Standard-Depth Open Frame Rack Compatible Tripp Lite

Overview :

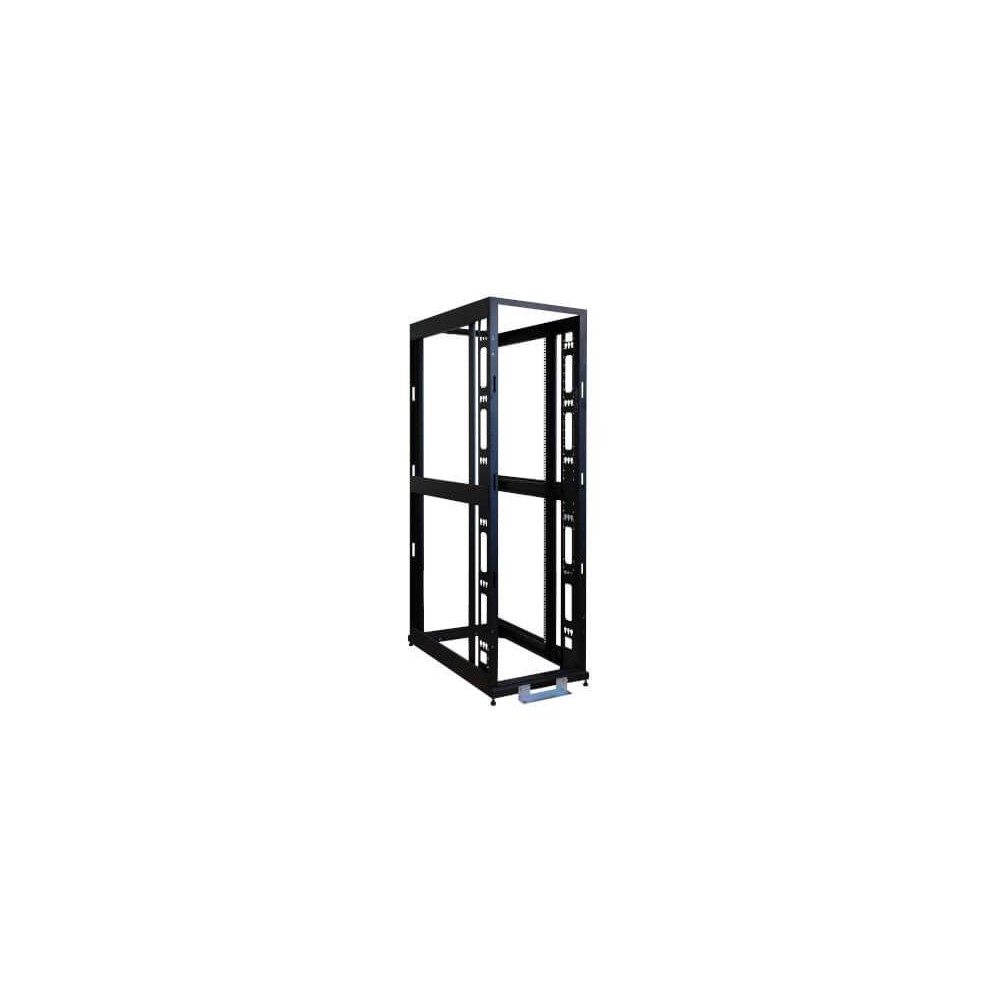

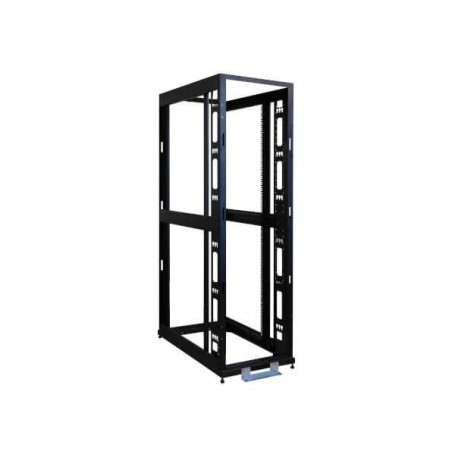

The Eaton SR48UBEXPNDNR3 is a SmartRack 48U standard-depth 4-post premium open-frame rack designed for data-center and network equipment deployments. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. The rack is an expansion model with no sides, doors or roof, allowing multiple racks to be bayed together in rows.

The rack provides 48U of standard 19-inch equipment mounting space using four interior vertical posts with unthreaded square mounting holes. The front and rear rail pairs are adjustable in 0.25-inch increments from 4 to 37 inches, allowing the mounting depth to be configured for different equipment requirements.

The SR48UBEXPNDNR3 is supplied fully assembled with heavy-duty 3-inch casters and leveling feet. Eaton specifies a 3,500-lb stationary and 3,500-lb rolling load capacity, making it suitable for high-density server, networking, storage, UPS and other rack-mounted infrastructure deployments.

Key Features :

• 48U standard-depth open-frame rack
• 4-post rack construction
• Standard 19-inch equipment mounting
• No sides, doors or roof
• Expansion model for baying multiple racks
• Integrated baying tabs
• Four vertical mounting posts
• Square mounting holes
• Rail adjustment in 0.25-inch increments
• Adjustable mounting depth from 4 to 37 inches
• 24-inch (600 mm) overall width
• 42-inch (1050 mm) standard depth
• 3,500 lb stationary load capacity
• 3,500 lb rolling load capacity
• Heavy-duty 3-inch casters
• Leveling feet
• Ships fully assembled
• Includes 50 M6 cage nuts
• Includes 50 M6 mounting screws
• Black finish
• UL 60950-1 certified
• RoHS compliant
• CE marked
• 5-year limited worldwide warranty

Specifications :
