Fortinet FN-TRAN-SFP+BD27 10GbE High-Speed SFP Transceiver Module View larger
Previous Next

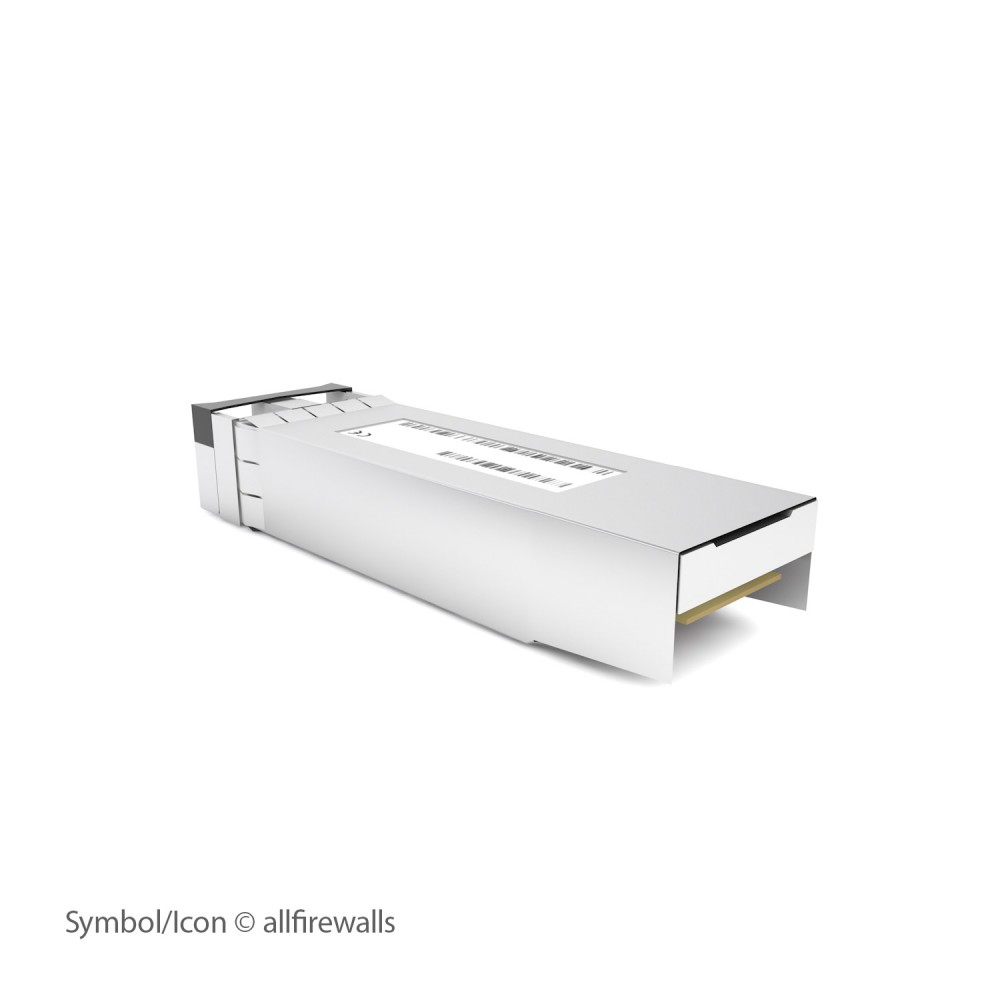

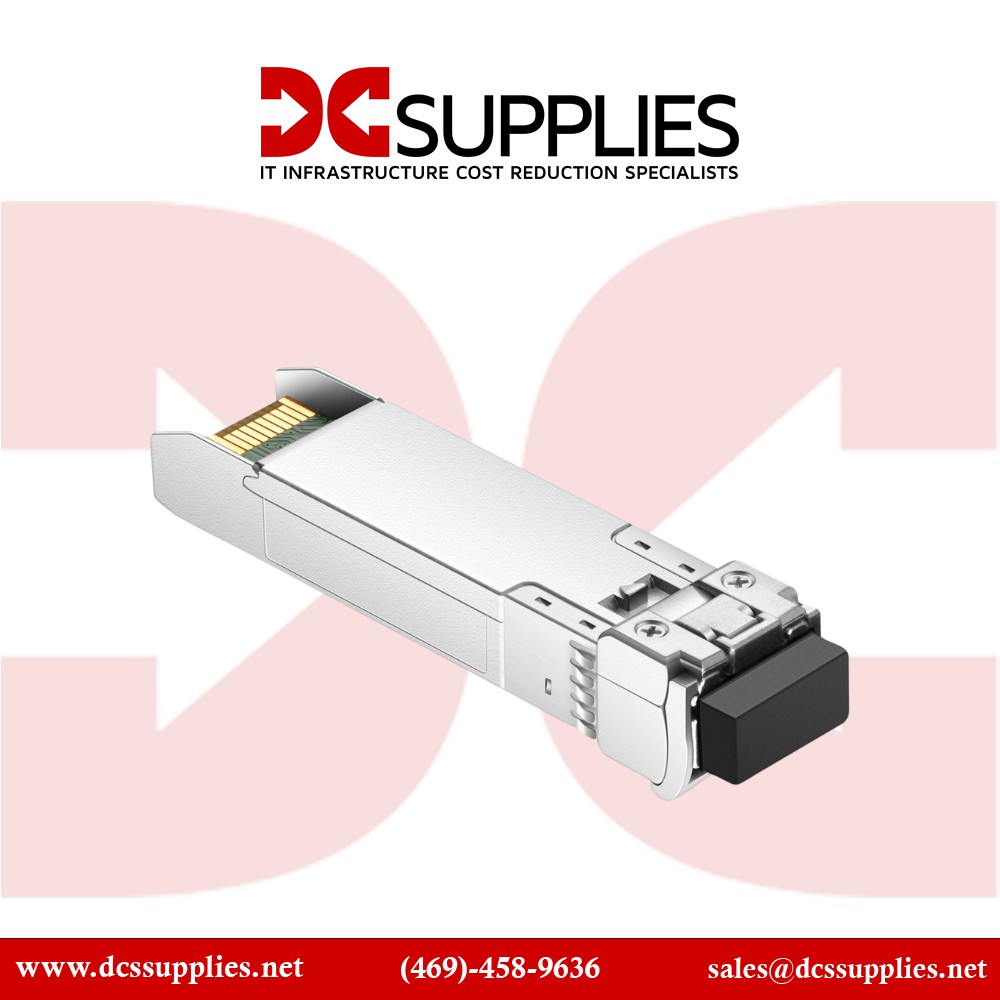

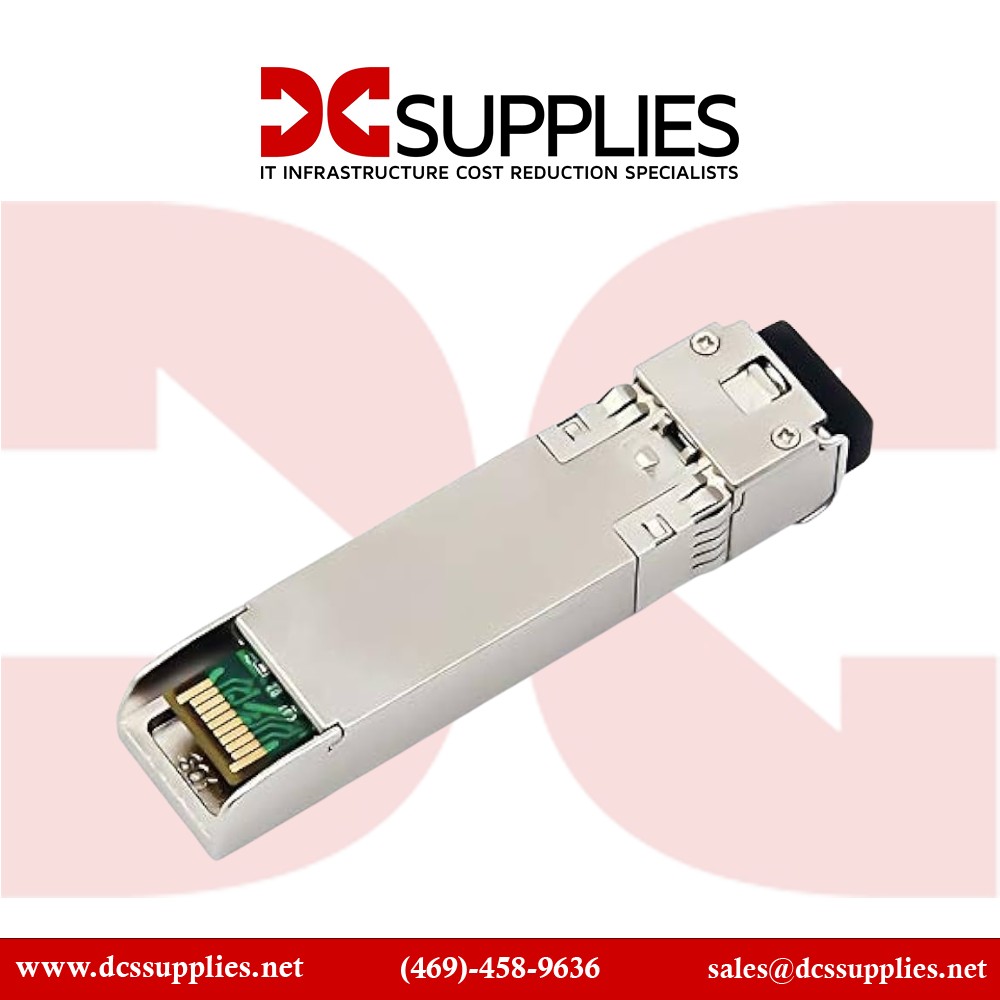

Fortinet FN-TRAN-SFP+BD27 10GbE High-Speed SFP Transceiver Module

New

Reliable 10 Gigabit SFP+ transceiver for fiber networks.
×




  • New

Detailed Specifications

Fortinet FN-TRAN-SFP+BD27

10GbE High-Speed SFP+ Transceiver Module

The Fortinet FN-TRAN-SFP+BD27 is a high-speed SFP+ transceiver module designed to provide 10 Gigabit Ethernet connectivity over single-mode fiber. Ideal for enterprise and data center fiber optic links, it ensures fast and reliable network performance.

Features :

Supporting the 10GBASE-LR standard, this transceiver operates at a wavelength of 1310 nm, delivering transmission distances up to 10 km on single-mode fiber cables. Its compact SFP+ form factor allows easy hot-swappable installation and replacement, minimizing network downtime.

Advanced Options :

Designed for compatibility with Fortinet switches, firewalls, and other networking equipment supporting standard SFP+ modules, the FN-TRAN-SFP+BD27 is suitable for high-speed backbone links, server uplinks, and long-distance fiber connections. Engineered for efficient power consumption and robust signal integrity, it delivers consistent low-latency performance in demanding networking environments.

Product Key Features

  • Supports 10 Gbps data rate for high-speed connectivity
  • Compatible with single-mode fiber (SMF)
  • Hot-swappable SFP+ form factor for easy installation
  • Transmission distance up to 10 kilometers
  • Compliant with IEEE 802.3ae 10GBASE-LR standard

Reliability & Performance :

Built with industrial-grade components, the FN-TRAN-SFP+BD27 offers reliable operation under various environmental conditions. The hot-swappable design supports maintenance without disrupting network traffic, while adherence to IEEE standards ensures broad compatibility and ease of integration.

Key Features :

  • 10 Gbps data rate support
  • Single-mode fiber compatible
  • Hot-swappable SFP+ form factor
  • Up to 10 km transmission distance
  • IEEE 802.3ae 10GBASE-LR compliant

Specifications :

SpecificationDetails
Model Number FN-TRAN-SFP+BD27
Product Type SFP+ 10 Giabit Ethegrnet Transceiver Module
Data Rate 10 Gbps
Fiber Type Single-mode fiber (SMF)
Maximum Transmission Distance Up to 10 kilometers
Wavelength 1310 nm
Connector Type LC Duplex
Form Factor SFP+ (Small Form-factor Pluggable Plus)
Hot-swappable Yes
Standard Compliance IEEE 802.3ae 10GBASE-LR
Operating Temperature 0°C to 70°C
Power Consumption Typical ≤ 1 W
