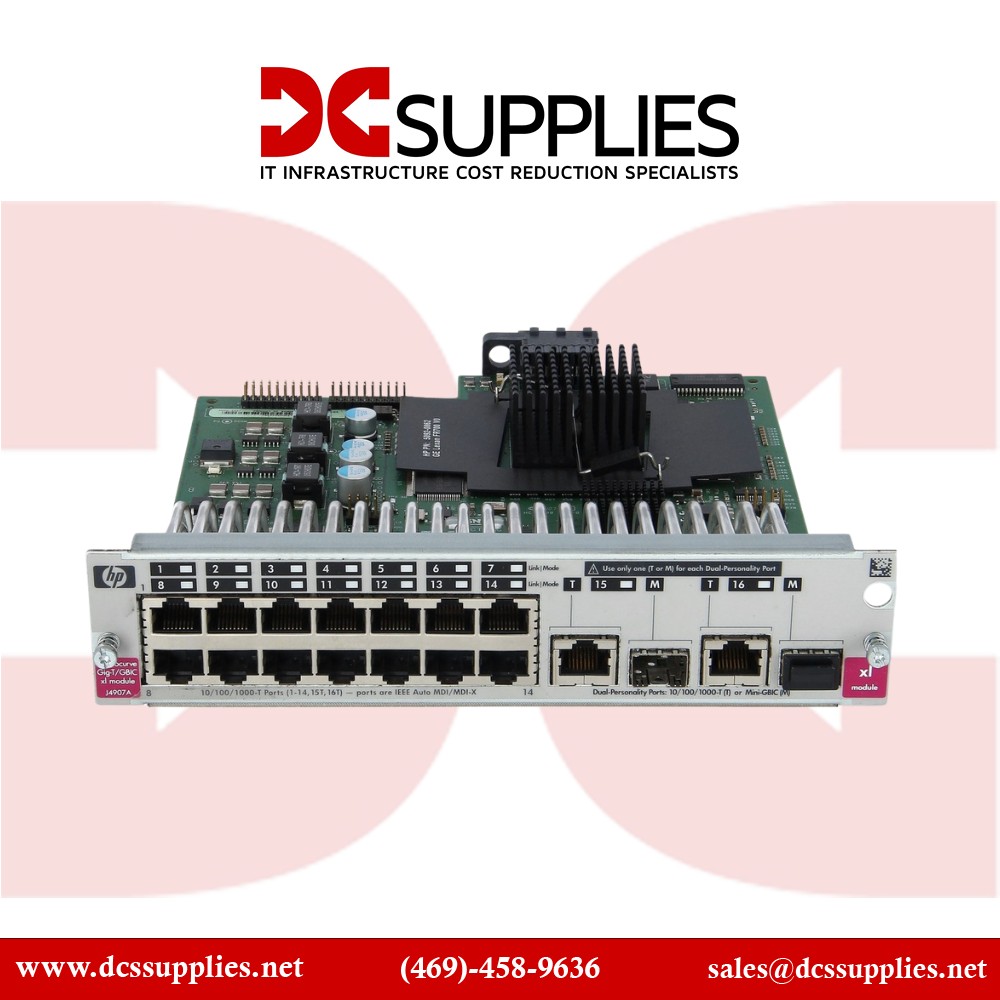

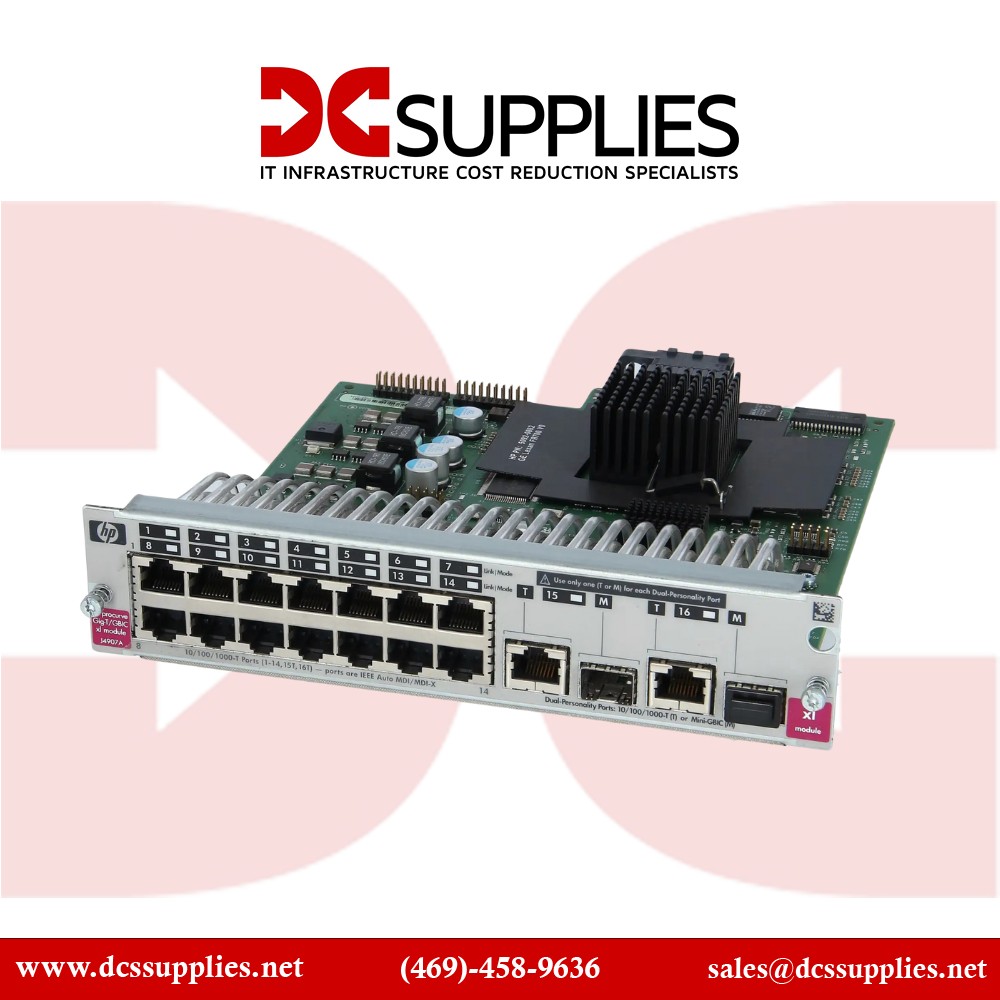

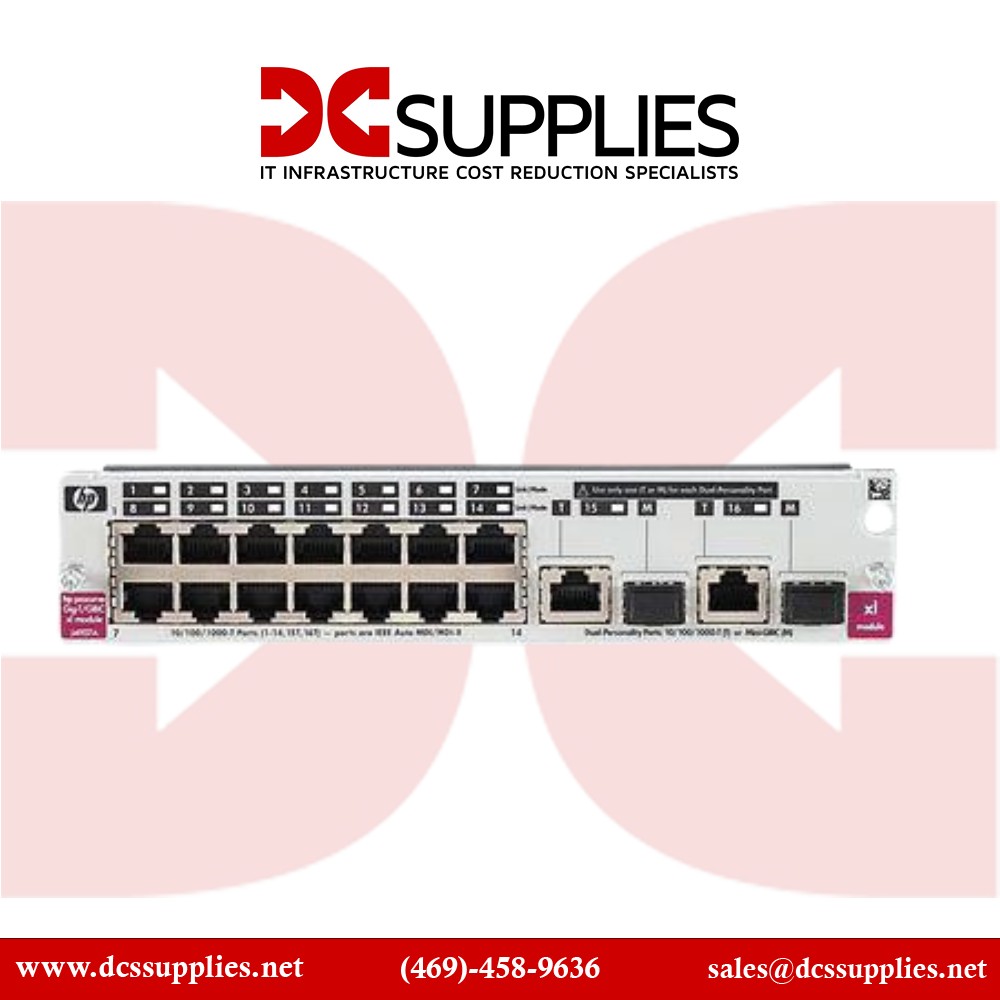

HPE J4907A ProCurve Switch XL 16p 10/100/1000 Module switch component View larger
Previous Next

HP J4907A ProCurve 16-Port Gigabit Module

New

In Stock

HP J4907A: ProCurve 16-Port Gigabit module, 10 100 1000 Mbps
×




$35.60

  • Refurbished

Detailed Specifications

HPE J4907A

Pro Curve Switch XL 16‑Port 10/100/1000 Module

The HPE J4907A is a plug-and-play expansion module that adds 16 Gigabit Ethernet ports to your HP ProCurve XL series switch, allowing seamless network growth.

Features

Ideal for environments needing additional port capacity without investing in a full switch replacement. Featuring dual-personality uplink ports, this module adapts to both fiber and copper infrastructures. Auto-configuration

Advanced Options

capabilities and LED port indicators simplify deployment and troubleshooting. The hot-swapable design ensures network uptime while upgrading.Built to HP’s strict reliability standards,

Product Key Features

    •  16 × Gigabit RJ‑45 ports (10/100/1000 Mbps), Auto‑MDI/MDI‑X

    •  2 × dual‑personality RJ‑45/SFP uplinks for fiber or copper flexibility

    •  Hot‑swappable module — install or replace without powering down

    •  Auto‑configuration & status LEDs for instant deployment and monitoring

    •  Standards compliant – IEEE 802.3, 802.3u, 802.3ab

    •  Fits HP ProCurve 5300xl series (5304xl, 5308xl, 5348xl, 5372xl)

Reliability & Performance

the J4907A supports Gigabit speeds with full-duplex operation, auto-negotiation, and Auto‑MDI/MDI‑X. Compliant with IEEE networking standards, it ensures reliable performance across diverse environments.

Key Features (Bullet List)

  • 16 × 10/100/1000 Mbps RJ‑45 Auto‑MDI/MDI‑X ports

  • 2 × dual-personality RJ‑45/SFP uplink ports

  • Hot-swappable design

  • Auto-configuration with link/activity LEDs

  • IEEE 802.3/802.3u/802.3ab compliance

  • Compatible with HP ProCurve 5300xl switch series

SpecificationDetails
Model Number J4907A
Product Type 16‑Port Gigabit Expansion Module
Port Count 16 × 10/100/1000 RJ‑45 ports
Uplink Ports 2 × dual‑personality RJ‑45/SFP (1 Gbps)
Speed 10/100/1000 Mbps, full-duplex for Gigabit
Auto Features Auto‑MDI/MDI‑X, auto-negotiation
Hot‑Swap Support Yes
LED Indicators Link/activity per port
IEEE Standards 802.3, 802.3u, 802.3ab
Compatible Switches HP ProCurve 5304xl, 5304xl‑32G, 5308xl‑48G, 5348xl, 5372xl
Form Factor Internal modular xl slot
Mounting Installed inside ProCurve xl switch chassis
Dimensions (module) Approx. 1U‑slot width (matches chassis)
Weight ~1.24 lb (0.56 kg)
Warranty Limited Lifetime Warranty
