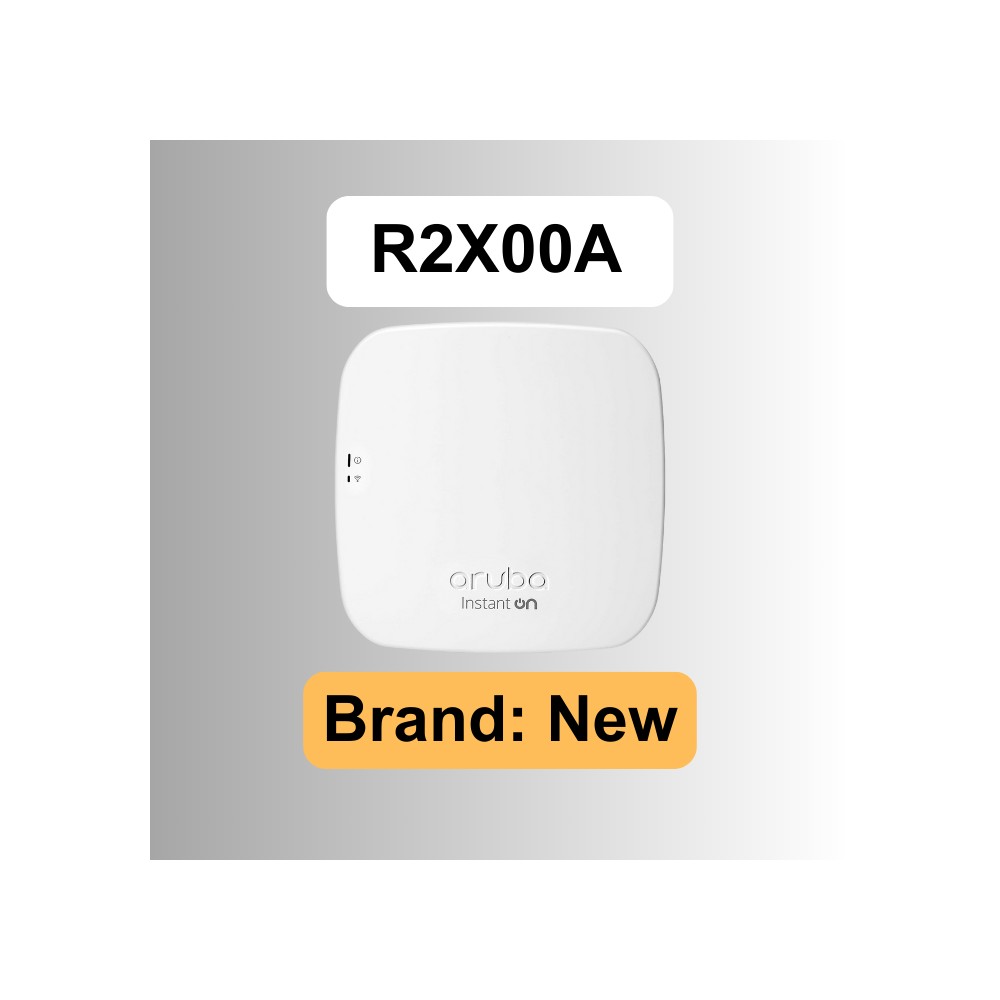

HPE Aruba R2X00A Instant On AP12 (US) wireless access point Bluetooth, Wi-Fi 5 View larger

HPE Aruba R2X00A Instant On AP12 (US) wireless access point Bluetooth, Wi-Fi 5

New

1600 Mbps Wi-Fi 5 Access Point with Power over Ethernet (PoE) support
×




  • New

Detailed Specifications

HPE Aruba

R2X00A

Instant On AP12 (US) Indoor Wireless Access Point with Bluetooth, Wi-Fi 5

The HPE Aruba Instant On AP12 (US) is a high-performance, business-grade indoor wireless access point designed to provide reliable and secure Wi-Fi connectivity for small to medium-density environments. Leveraging Wi-Fi 5 (802.11ac Wave 2) technology with 3x3 Multi-User MIMO (MU-MIMO), this access point delivers impressive speeds and efficient handling of multiple devices simultaneously, making it ideal for busy retail stores, medical offices, cafes, restaurants, or professional offices. The AP12 ensures your employees and customers stay connected for high-bandwidth activities like video streaming, voice calls, and cloud-based applications. Beyond its robust Wi-Fi capabilities, it features an integrated Bluetooth Low Energy (BLE) radio for location-based services and simplified device onboarding. With its intuitive cloud-based management via a mobile app or web portal, the AP12 simplifies deployment and ongoing network administration, making enterprise-grade Wi-Fi accessible without the need for extensive IT expertise or dedicated hardware controllers.

Features

The HPE Aruba Instant On AP12 operates on dual radio bands, 2.4 GHz (802.11n 2x2 MIMO) and 5 GHz (802.11ac 3x3 MIMO), allowing for a combined maximum aggregate peak data rate of 1.6 Gbps (1300 Mbps on 5 GHz and 300 Mbps on 2.4 GHz). This simultaneous dual-band operation ensures optimal performance for various devices and applications, intelligently directing traffic for the best user experience. The integrated virtual controller simplifies the setup and management of multiple AP12 units, as well as other Instant On access points, without requiring additional hardware or software licenses.

Advanced Options

Powering the AP12 is flexible, supporting Power over Ethernet (PoE) via an 802.3af Class 3 connection, or an optional 12V DC power adapter (sold separately), which reduces cabling complexity and offers versatile installation options. Its compact and aesthetic design allows for discreet mounting on ceilings or walls, blending seamlessly into any indoor environment. Furthermore, the AP12 supports Smart Mesh Wi-Fi, allowing you to extend network coverage wirelessly to hard-to-wire areas, eliminating dead zones and providing a consistent signal throughout your business premises

Product Key Features

  • Indoor Wi-Fi 5 (802.11ac Wave 2) with 3x3 MU-MIMO
  • Dual-band 2.4 GHz and 5 GHz radios
  • Integrated Bluetooth Low Energy (BLE) for IoT and location services
  • Power over Ethernet (PoE) 802.3af support
  • Cloud-managed with easy-to-use mobile app and web portal
  • Smart Mesh Wi-Fi for extended coverage without cabling

Reliability & Performance

The HPE Aruba Instant On AP12 is engineered for exceptional reliability and consistent high performance, crucial for the demands of a modern small business. Its 3x3 MU-MIMO technology allows the access point to simultaneously communicate with multiple client devices, significantly improving network efficiency and performance, especially in environments with numerous connected users. The integrated down-tilt omni-directional antennas ensure wide and uniform Wi-Fi coverage across your indoor spaces. With support for WPA2/WPA3 security and Enhanced Open (OWE), the AP12 provides robust data protection for both employee and guest networks, ensuring secure and private connections. The self-healing capabilities of the Instant On network, combined with the ability to automatically push configuration changes across the cluster, contribute to an always-on Wi-Fi experience. Its solid-state design with no moving parts further enhances reliability, and the power flexibility via PoE simplifies deployment while ensuring a stable power source for continuous operation, minimizing potential points of failure and maximizing uptime.

Key Features (Bullet List)

  • Supports IEEE 802.11ac Wave 2 (Wi-Fi 5) wireless standard.
  • Dual-band operation: 2.4 GHz (802.11n 2x2 MIMO, up to 300 Mbps) and 5 GHz (802.11ac 3x3 MIMO, up to 1300 Mbps).
  • Total aggregate peak data rate of up to 1.6 Gbps.
  • Multi-User MIMO (MU-MIMO) support for efficient multi-device handling.
  • Integrated Bluetooth Low Energy (BLE) radio for proximity-aware applications and simple setup.
  • One Gigabit Ethernet uplink port with PoE-in support (802.3af Class 3).
  • Cloud-based management via Aruba Instant On mobile app or web portal.
  • Smart Mesh Wi-Fi technology for extending network coverage wirelessly.
  • Enterprise-grade security with WPA2/WPA3 and Enhanced Open (OWE).
  • Ideal for low to medium-density indoor environments.
  • UL 2043 plenum rating for safe deployment in air-handling spaces.
  • Includes mounting clips for ceiling rail and solid surface installation.

Specifications :

Wireless Access Point Specifications
FeatureSpecification
Model Number R2X00A
Product Type Wireless Access Point
Series Aruba Instant On AP12 (US)
Wireless Standard IEEE 802.11ac Wave 2 (Wi-Fi 5)
Frequency Band Dual-band (2.4 GHz, 5 GHz)
Max Data Rate (5 GHz) 1300 Mbps
Max Data Rate (2.4 GHz) 300 Mbps
Combined Data Rate Up to 1.6 Gbps (Wireless Aggregate)
MIMO Technology 3x3:3 MU-MIMO (5 GHz), 2x2:2 MIMO (2.4 GHz)
Antennas Integrated down-tilt omni-directional
Antenna Gain 3.9 dBi (2.4 GHz), 5.4 dBi (5 GHz)
Ports 1x Gigabit Ethernet (RJ-45) with PoE-in (802.3af)
Bluetooth Bluetooth Low Energy (BLE) Radio
Power Supply Power over Ethernet (PoE) 802.3af Class 3 or 12V DC (adapter sold separately)
Max Power Consumption 13.0 W (PoE), 12.0 W (DC)
Security WPA2, WPA3, Enhanced Open (OWE)
Management Cloud-based (Instant On Mobile App/Web Portal)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Dimensions (H x W x D) 34 x 157 x 157 mm (1.3 x 6.2 x 6.2 in)
Net Weight 0.483 kg (1.1 lbs)
Mounting Ceiling or Wall Mount (clips included)
Certifications UL 2043 plenum rating, EN 60601-1-1, EN 60601-1-2, Wi-Fi Alliance certified
