NETGEAR WAX620-100NAS Insight 3.6Gbps Wireless Access Point View larger
Previous Next

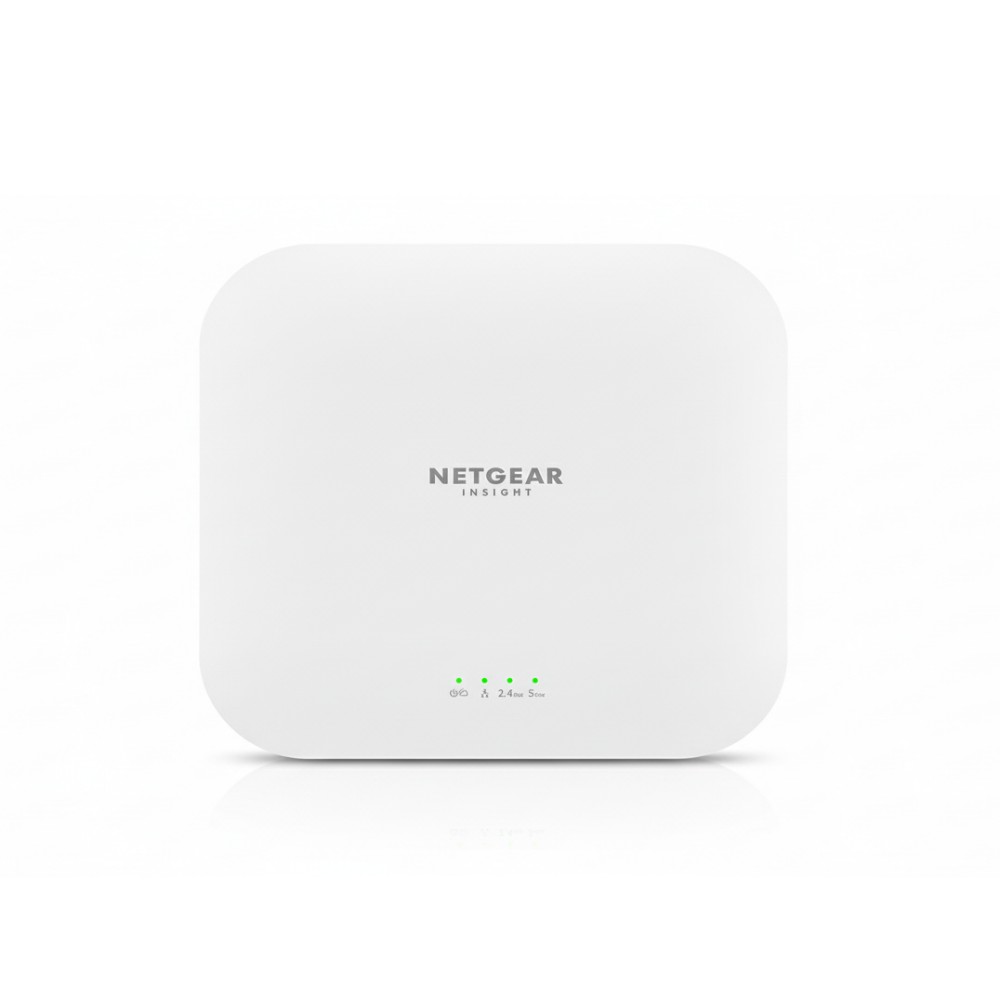

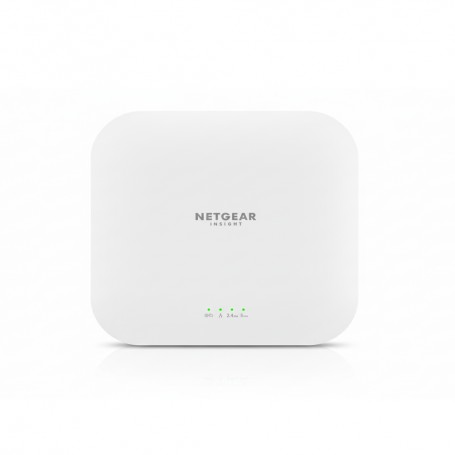

NETGEAR WAX620-100NAS Insight 3.6Gbps Wireless Access Point

New

In Stock

NETGEAR WAX620-100NAS Insight Wireless Access Point...

×




$229.99

  • New

Detailed Specifications

NETGEAR WAX620-100N

Insight AX3600 Dual-Band WiFi 6 PoE Wireless Access Point

The NETGEAR WAX620-100NAS is a high-performance WiFi 6 AX3600 dual-band access point designed for small to medium-sized businesses, schools, hotels, and conference venues. It delivers blazing-fast wireless speeds, enterprise-grade features, and easy deployment flexibility.

Features

Built on a 4×4 dual-band 802.11ax platform, this access point provides up to 3.6 Gbps total throughput—1.2 Gbps on 2.4 GHz and 2.4 Gbps on 5 GHz—ensuring high-speed connectivity even in device-dense environments

Advanced Options

. The integrated 2.5 GbE PoE+ uplink delivers both power and fast backhaul, ideal for modern network backbones. It can be managed locally via a web GUI or remotely through the Insight Cloud platform, offering admins remote configuration and monitoring ease.

Product Key Features

    •  WiFi 6 AX3600 Speeds: Up to 1.2 Gbps (2.4 GHz) + 2.4 Gbps (5 GHz), totaling 3.6 Gbps


    •  4×4 Dual‑Band: 4-stream performance on each band (8 streams total)


    •  2.5 GbE PoE+ Port: Single 2.5 GbE port for high-bandwidth uplink with IEEE 802.3at/af support


    •  Cloud or Local Management: Manage via NETGEAR Insight Cloud or standalone web GUI


    •  High Device Capacity: Supports up to 256 users and 75 concurrent clients


    •  Mesh-Capable Design: Supports wireless mesh with WAX610, WAC540, WAC564 units


Reliability & Performance

Engineered for demanding environments, the WAX620 supports up to 256 total users, with 75 concurrent active clients, and operates fanlessly with a metal heatsink design for silent, reliable performance . It supports eight SSIDs with VLAN tagging, WPA3 security, rogue AP detection, and advanced wireless features like MU-MIMO, OFDMA, Beamforming, BSS Coloring, and Target Wake Time—for optimized capacity, latency, and roaming across your network

Key Features (Bullet List)

    • AX3600 dual-band WiFi 6

    • 4×4 streams per band (8‑stream total)

    • 2.5 GbE PoE+ uplink (802.3at/af)

    • Insight Cloud or standalone web management

    • Supports up to 256 users / 75 concurrent clients

    • Mesh-capable with other Insight APs

    • 8 SSIDs with VLAN support, WPA3 security

    • Advanced WiFi features: MU‑MIMO, OFDMA, Beamforming, BSS Coloring, TWT

SpecificationDetails
Model Number WAX620-100NAS
Product Type Dual-Band WiFi 6 (AX3600) Access Point
WiFi Standard IEEE 802.11ax (WiFi 6)
Max Speed 1.2 Gbps (2.4 GHz) + 2.4 Gbps (5 GHz); total 3.6 Gbps
Streams 4×4 per band (8 total)
Ethernet Port 1× 2.5 GbE PoE+ (also 802.3at/af compliant)
Power Method PoE+ (30 W) or optional 12 V DC adapter
Client Support Up to 256 users; 75 concurrent clients
SSIDs & VLANs 8 SSIDs with VLAN tagging
Security WPA3, WPA2, rogue AP detection
Mount Options Ceiling or wall mount (brackets included)
Dimensions 205.7 × 205.7 × 34.3 mm (8.09 × 8.09 × 1.35 in)
Weight 783 g (1.72 lb)
