HPE AP-270-MNT-V2 AP-270 Series Outdoor Pole Wall Short Mount Kit View larger

HPE AP-270-MNT-V2 Outdoor Pole Wall Mount Kit

New

Outdoor AP short‑mount kit, wall/pole
×




  • New

Detailed Specifications

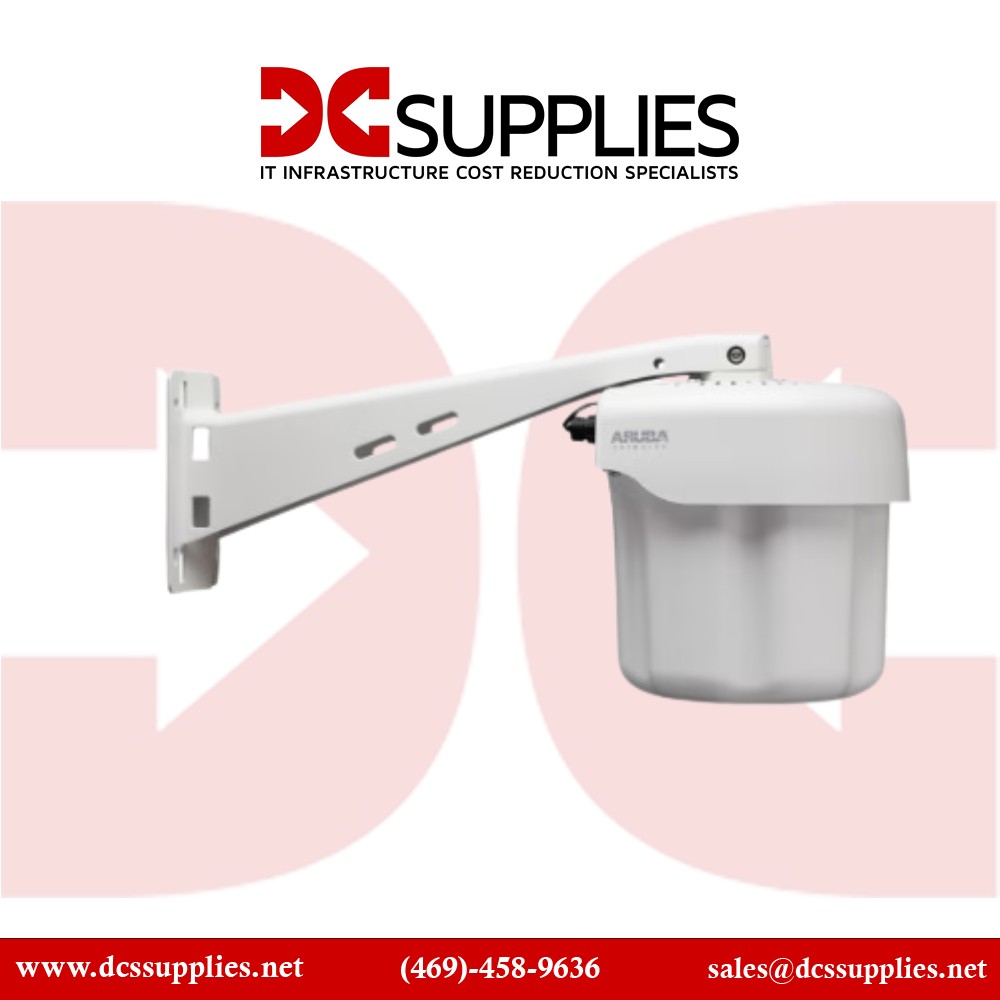

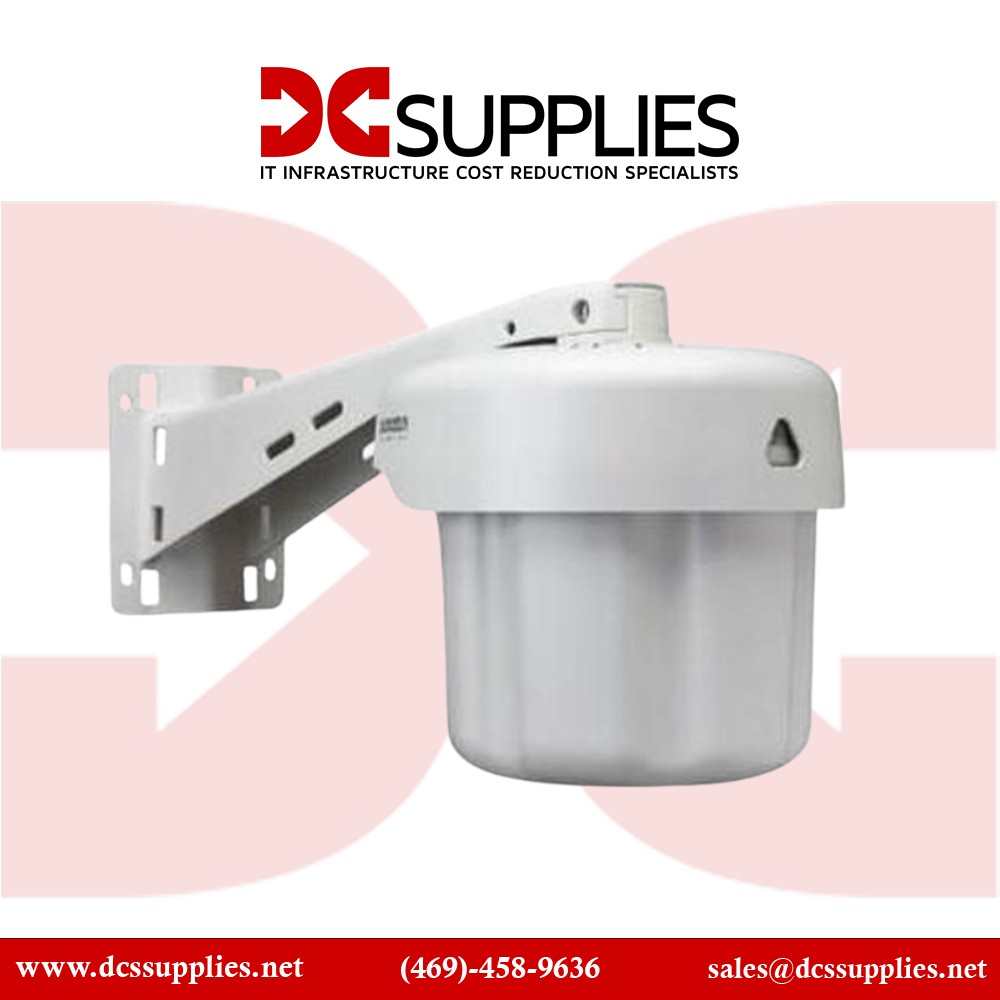

HPE Aruba AP-270-MNT-V2 – Mount Kit for AP‑270 Series (Pole/Wall)

Overview :

The HPE Aruba AP-270-MNT-V2 is a dedicated mounting kit designed for use with the Aruba 270 Series outdoor access points, enabling secure wall or pole installation for enterprise‑grade deployments. This kit includes a mounting bracket, two M6 × 20 screws, a 60 cm cable tie and two hose clamps, allowing attachment to a vertical pole (100–150 mm diameter) or surface mounting on a wall or corner with compatible adapter. The short‑arm design holds the AP approximately 75 mm from the mounting surface and is suited for outdoor coverage in campus, edge or building‑perimeter environments. It supports integration with the AP’s grounding, cabling and protection provisions, and is optimized for the rugged outdoor wireless gear such as the AP‑270 Series of access points.

Key Features :

  • Short arm mount positions AP ~75 mm from wall surface

  • Supports pole mounting with included dual hose‑clamps

  • Includes bracket, screws, cable tie and installation template

  • Compatible with Samsung corner‑mount adapter for corner installations

  • Supports AP‑270 Series outdoor access points on pole or wall

Specification :

SpecificationDetail
Brand HPE Aruba
Part Number AP-270-MNT-V2
Product Type Short Mount Kit for AP‑270 Series (Pole/Wall)
Compatibility Aruba 270 Series outdoor APs
Distance from mounting surface Approximately 75 mm (3.0 in)
Support Pole Diameter 100–150 mm (4.0–6.0 in)
Bracket Dimensions 140 mm × 170 mm (5.51 in × 6.69 in)
Additional Dimensions 114 mm (4.49 in) / 116 mm (4.57 in) / 5 mm (0.197 in) / 9.5 mm (0.374 in) slots
Weight 2 lbs shipping approx, 0.93 kg package
Colour White (off‑white finish)
Warranty 12‑month limited warranty (EU version)
Kit Contents Bracket, 2 M6×20 screws, 1 60 cm cable tie, 2 6‑inch hose clamps
Use Case Wall, pole or corner mounting of Aruba 270 Series outdoor access points
Mounting Surface Vertical pole or flat wall with anchor bolts (not included)
