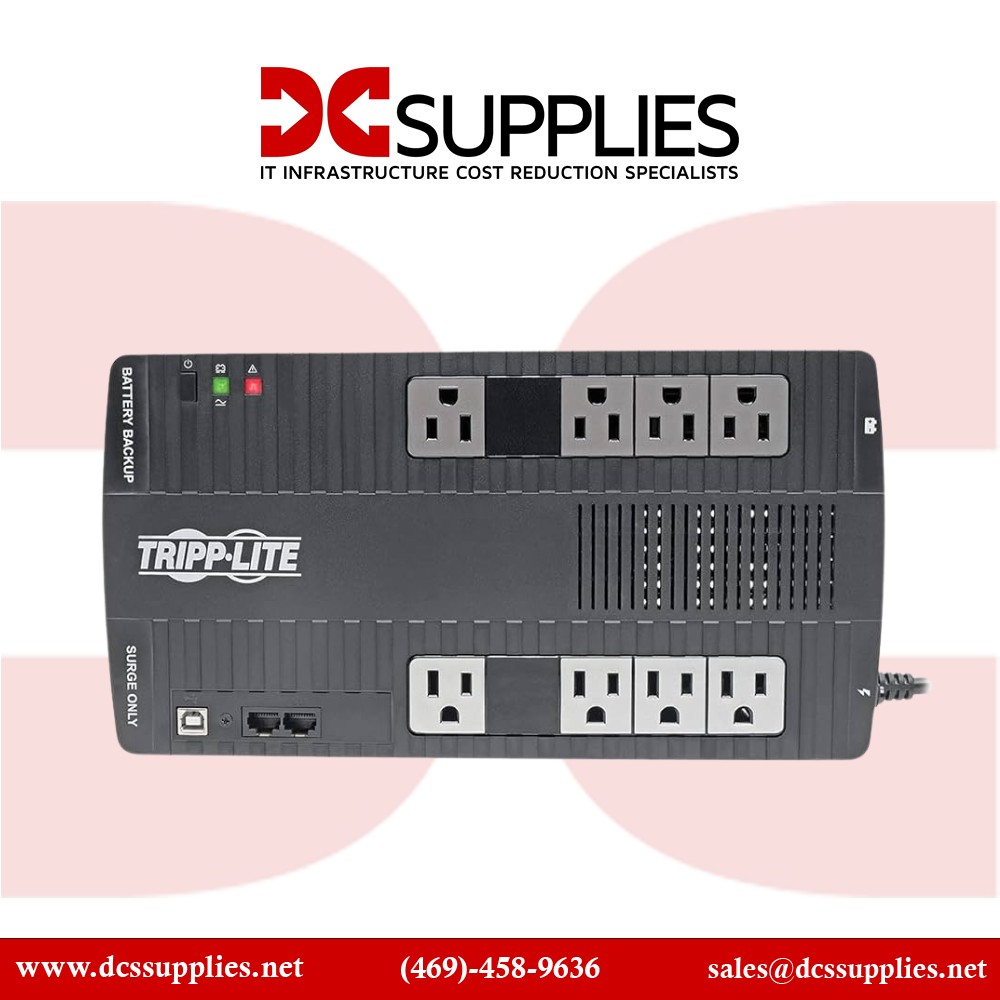

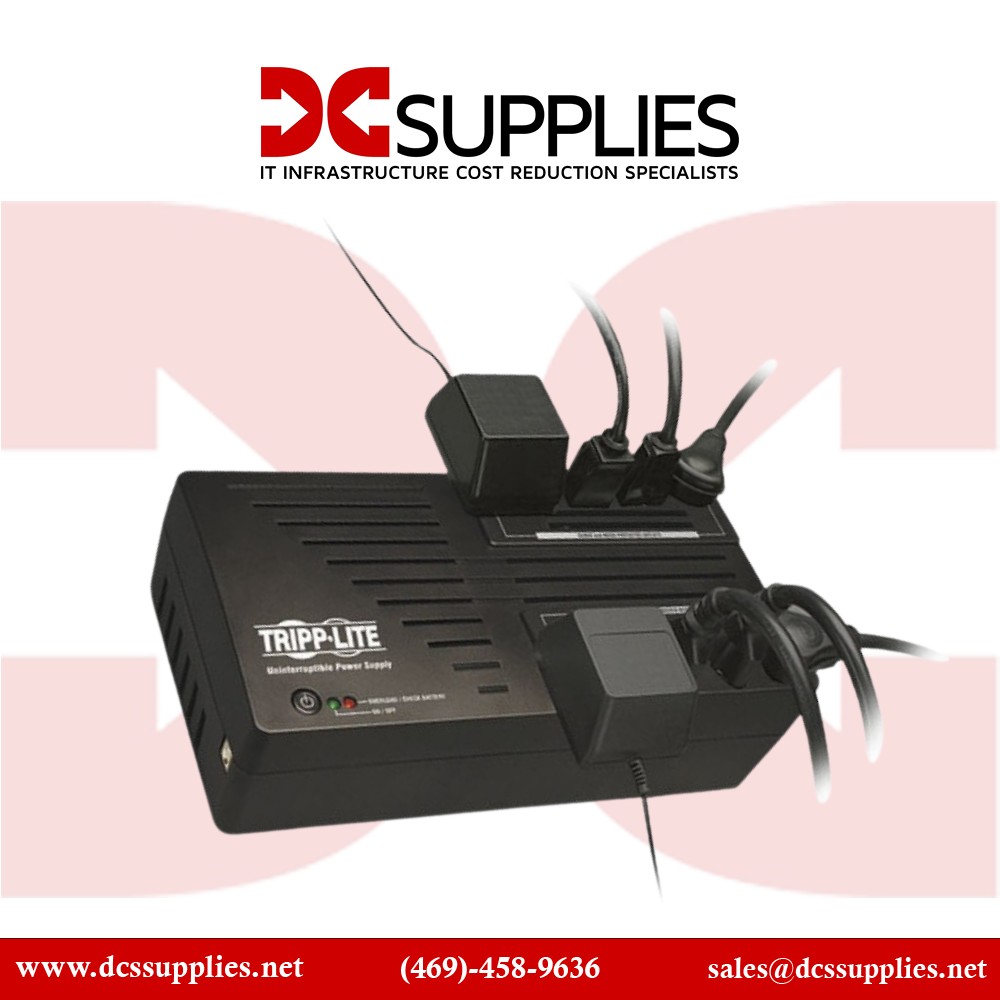

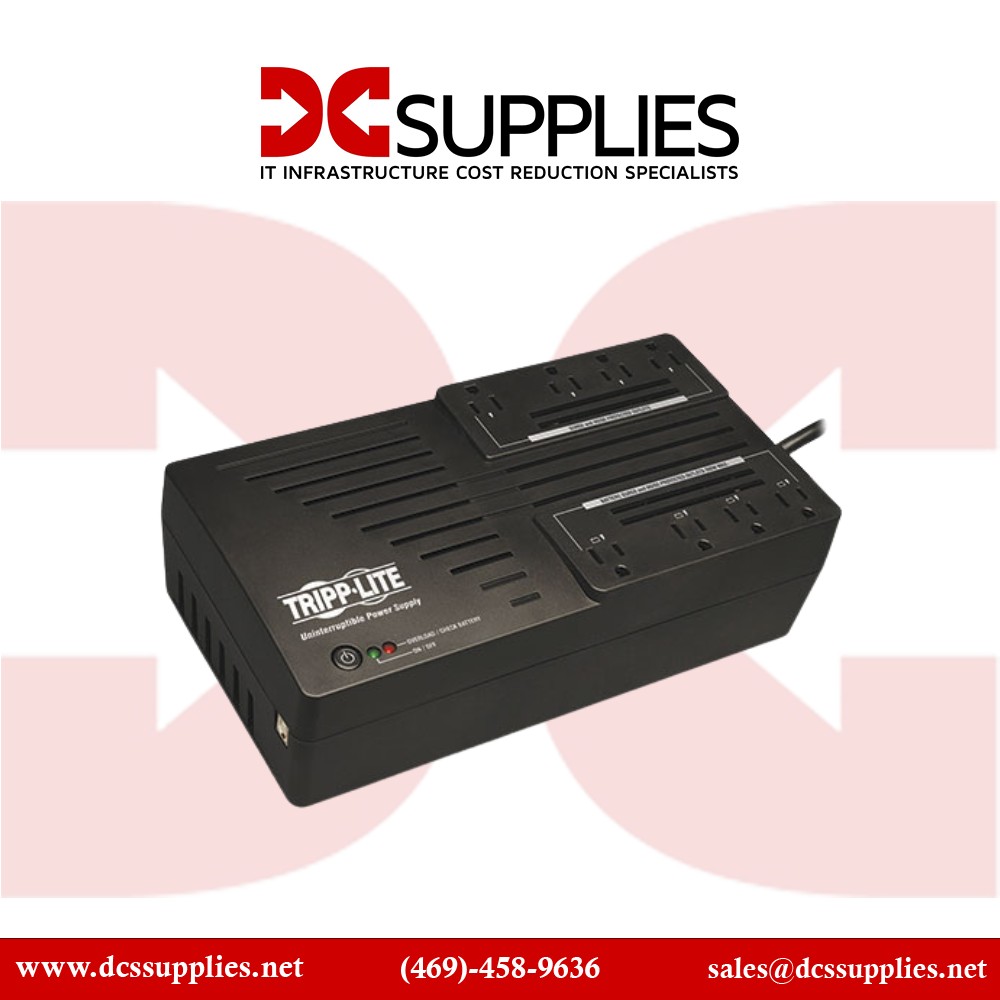

Tripp AVR650UM Lite 650VA 325W UPS Desktop Battery BackUp
Overview:
650VA/325W/120V Battery Backup for PCs, Home Theater or Digital Signage The line-interactive AVR650UM UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.
Allows Time to Back Up Critical Files During a Blackout Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 43 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.
8 NEMA 5-15R Outlets Protect Your Connected Components Four 5-15R outlets provide battery backup, surge protection and voltage regulation for your computer, monitor and other crucial components. The other four 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout. A high >95% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The AVR650UM can correct brownouts as low as 89V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Specifications:
| Product Name |
650VA 325W UPS Desktop Battery Back Up |
| Product Type |
Line-interactive UPS |
| Receptacle Type |
NEMA 5-15R |
| Product Family |
AVR |
| Backup / Run Time (Half Load) |
11 Minute |
| Backup / Run Time (Full Load) |
2.50 Minute |
| Load Capacity (VA) |
650 VA |
| Load Capacity (W) |
325 W |
| Plug / Connector Type |
NEMA 5-15P |
| Form Factor |
Wall/Desktop/Floor Mountable |
| Waveform Type |
Pulse-width Modulated Sine Wave |
| Hot Swappable |
Yes |
| Input Voltage |
115 V AC
120 V AC
|
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
| USB |
Yes |
| Maximum Operating Temperature |
104°F (40°C) |
| Typical Battery Recharge Time |
12 Hour |
| Receptacle Detail |
8 x NEMA 5-15R |
| Country of Origin |
China |
| Height |
3.5" |
| Width |
11.3" |
| Depth |
6" |
| Alarm |
Power Failure
Overload
|
| Product Series |
AVR |
| Dataline Protection |
RJ-11 |
| Status Indicators |
LED Indicators |
| Load Capacity |
650 VA/325 W |
| Product Model |
AVR650UM |
| Surge Energy Rating |
316 J |
| Limited Warranty |
1 Year |
| Output Voltage |
115 V AC |
| Modem (RJ-11) |
Yes |
| Cord Length |
6 ft |
| Input Current |
12 A |
| Protection Type |
Brownout
Over Voltage
Black Out
Surge
EMI / RFI
|
