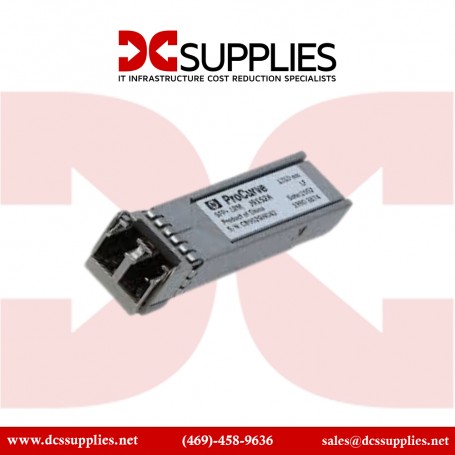

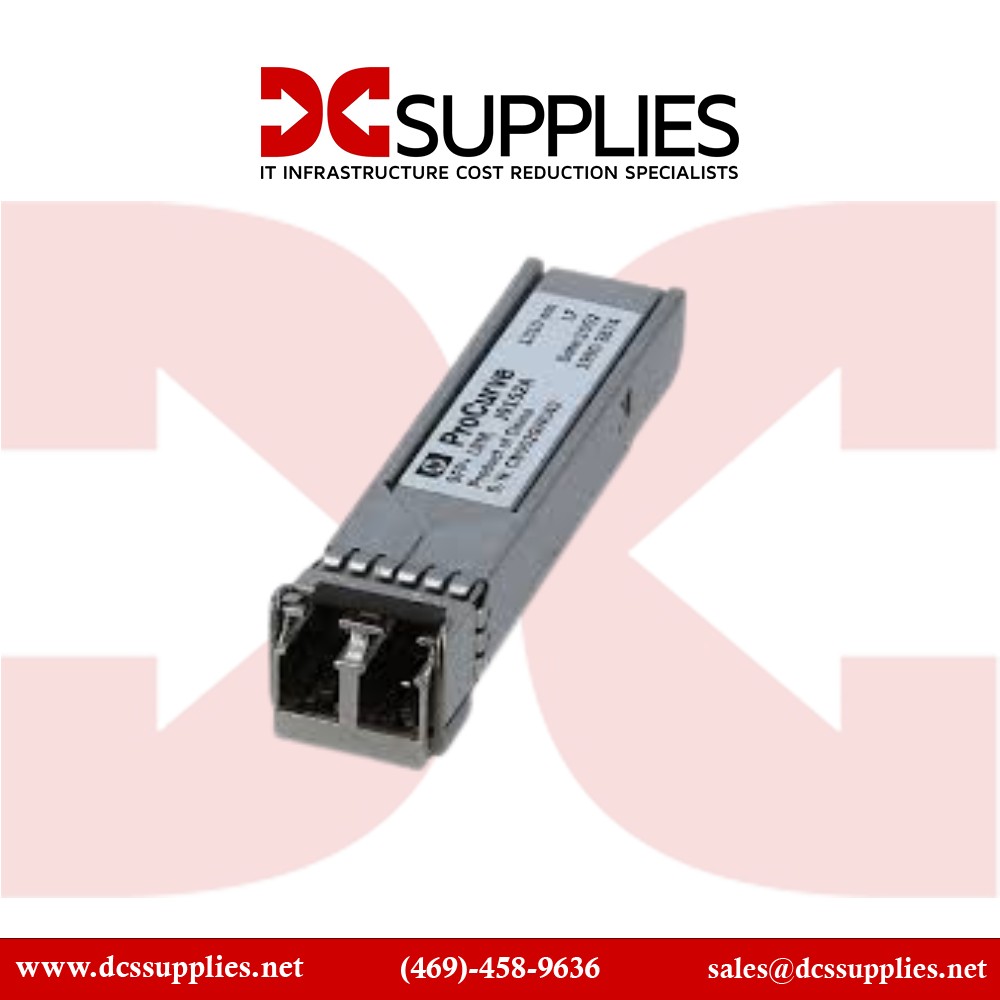

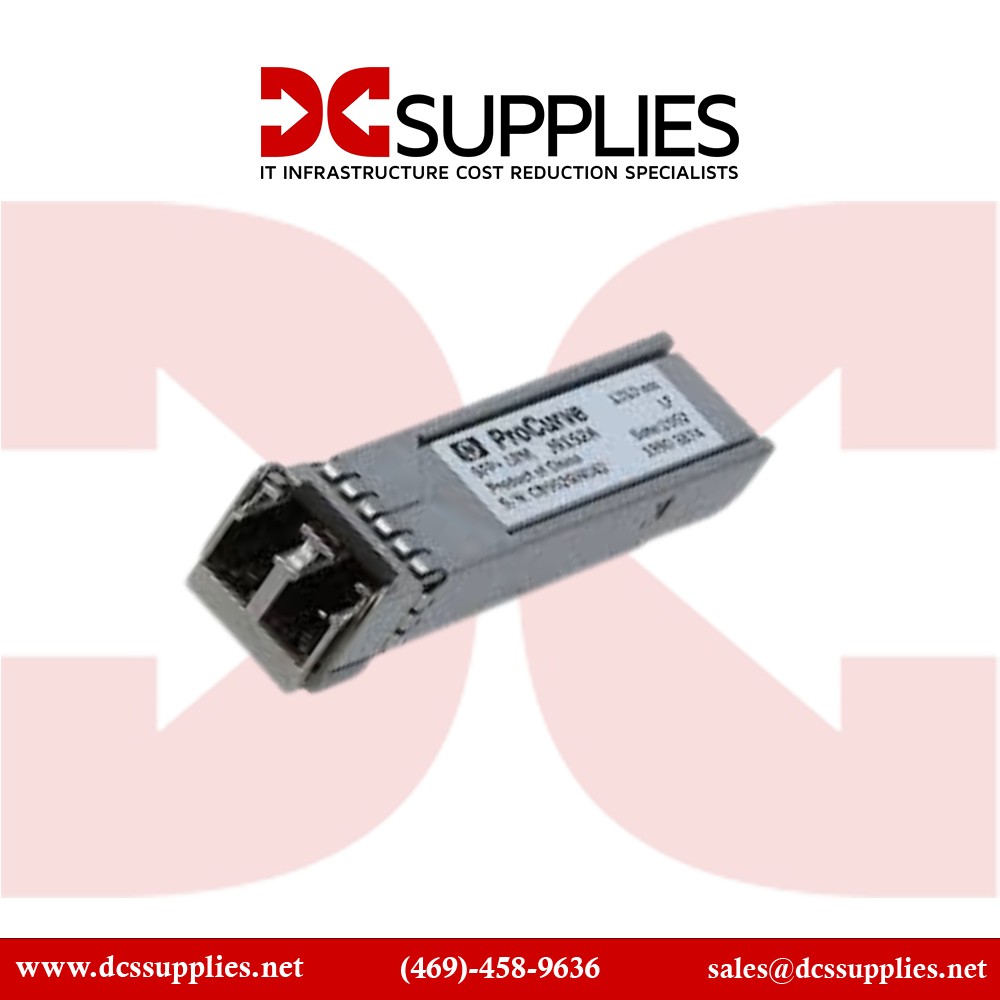

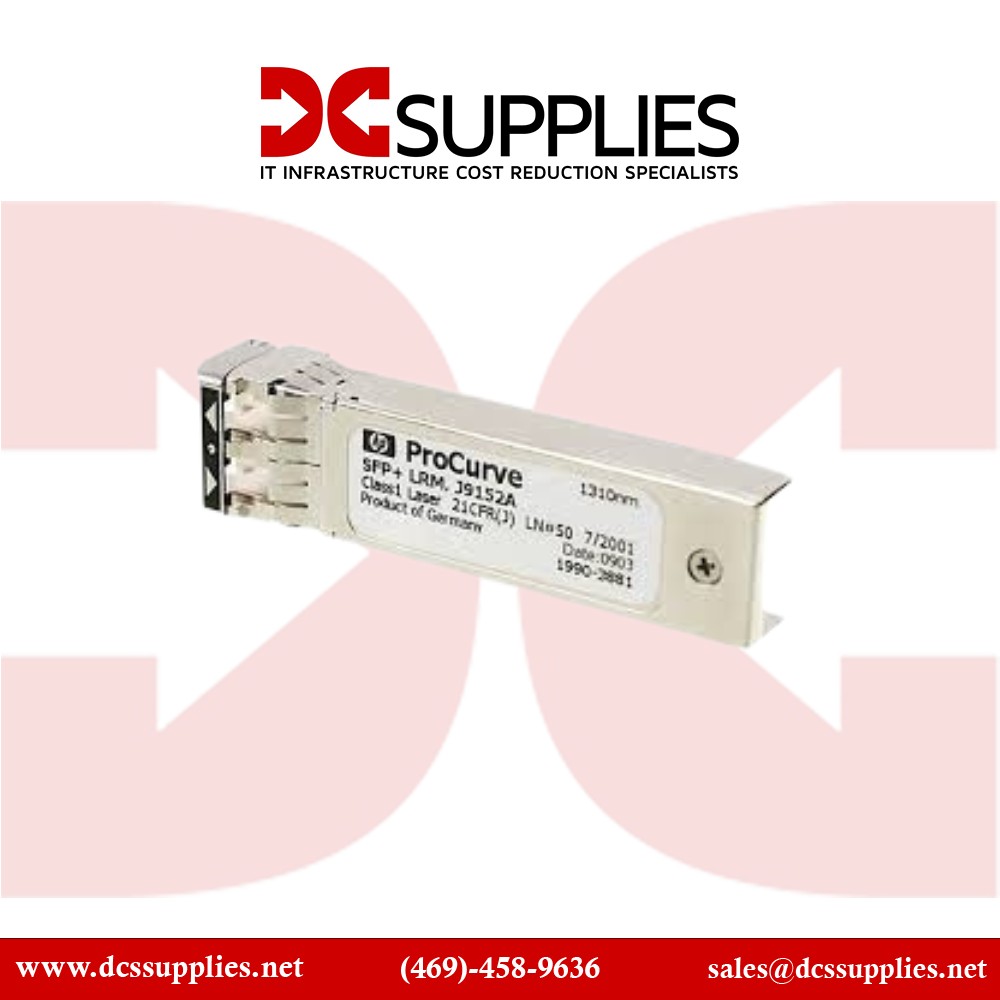

HP J9152A 10GBase-LRM SFP Transceiver View larger

HP J9152A 10GBase-LRM SFP Transceiver

New

10 GbE SFP+ LC LRM transceiver (220 m)
×




  • New

Detailed Specifications

HP J9152A – 10G SFP+ LC LRM Transceiver

Overview :

This module is a 10 Gigabit Ethernet SFP+ transceiver designed for use by network engineers who require short‑range multimode fibre connectivity over legacy installs. It supports the IEEE 802.3aq 10GBASE‑LRM specification and allows full‑duplex 10 Gb/s links up to approximately 220 m on 50/125 µm or 62.5/125 µm multimode fibre. It is suitable for data centre top‑of‑rack, wiring‑closet aggregation and campus backbone segments where existing multimode fibre is present rather than single‑mode. It plugs into standard SFP+ slots in switches, routers and transceivers that accept the form factor and enables reuse of multimode infrastructure rather than rewiring to single‑mode fibre. Trained engineers appreciate its compatibility with LC duplex connectors and low power consumption.

Key Features

  • Supports IEEE 802.3aq 10GBASE‑LRM up to ~220 m

  • Uses LC duplex connector for easy patch‑panel integration

  • Hot‑pluggable SFP+ form‑factor for flexible deployment

  • Operating power consumption typically ≤ 1 W

  • Wavelength is 1310 nm, enabling legacy multimode fibre use

Technical Specifications

SpecificationValue
Brand HP
Part Number J9152A
Product Type 10G SFP+ LC LRM Transceiver
Data rate 10 Gb/s (supports 10.31 Gbps maximum)
Fibre mode Multimode fibre (MMF) 50/125 µm or 62.5/125 µm
Maximum link length Up to 220 m on 50/125 µm or 62.5/125 µm multimode fibre
Wavelength 1310 nm
Connector type Duplex LC
Form‑factor SFP+ (small form‑factor pluggable, 10G)
Power consumption (typical) ~0.7 W
Power consumption (maximum) ~1.0 W
Operating temperature 0 °C to +70 °C
Storage/Non‑operating temperature ‑40 °C to +85 °C
Weight 0.04 lb (~0.02 kg)
Dimensions (D × W × H) 2.19 in × 0.54 in × 0.47 in (≈ 5.57 cm × 1.38 cm × 1.19 cm)
