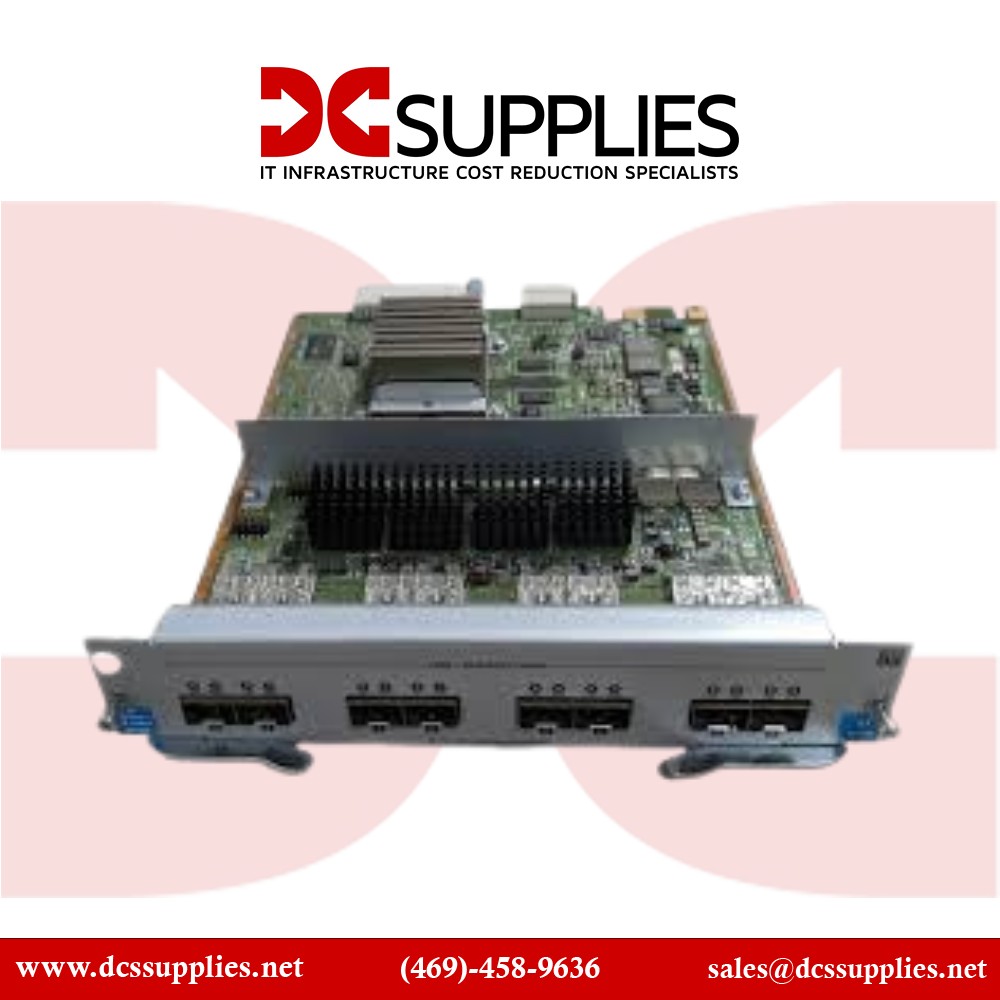

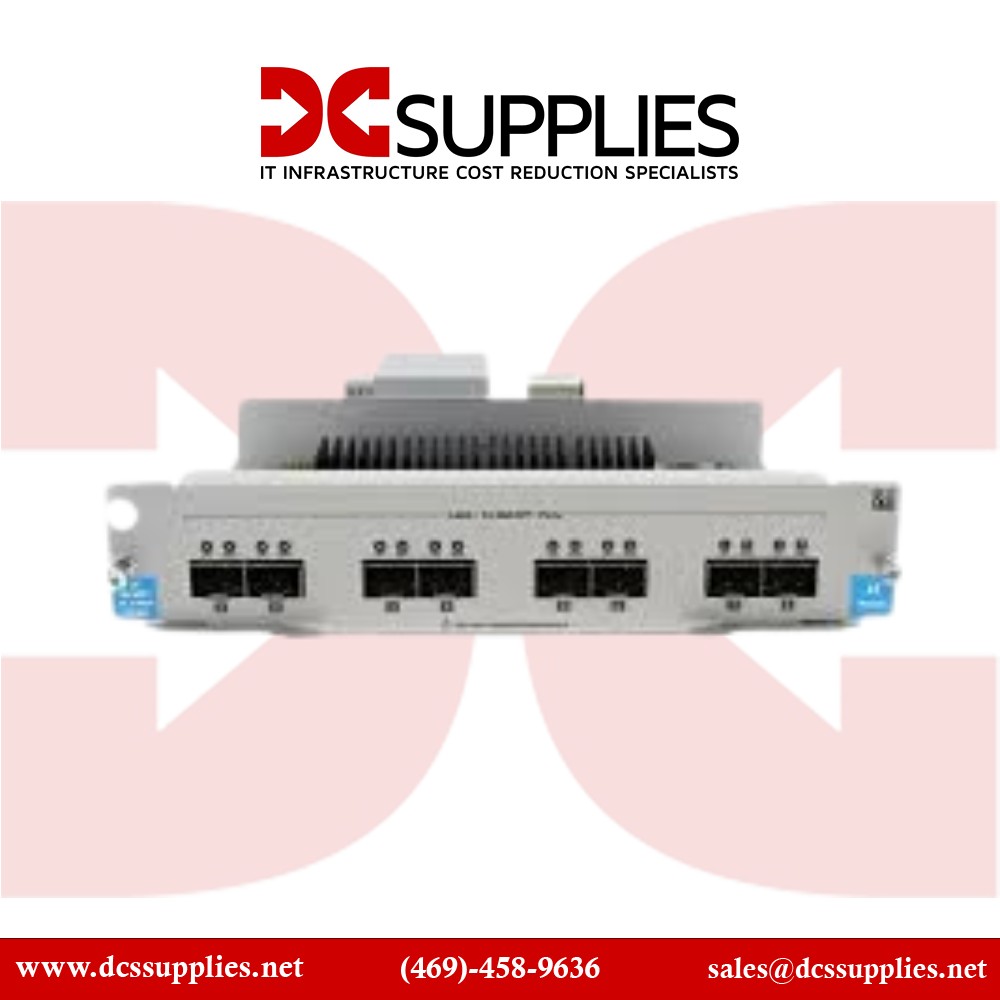

HP J9538A ProCurve 8-Port 10GbE SFP v2 Expansion Module View larger

HP J9538A ProCurve 8-Port 10GbE SFP v2 Expansion Module

New

HP 8‑port 10GbE SFP+ v2 zl Module
×




  • Refurbished

Detailed Specifications

HP J9538A – 8‑Port 10GbE SFP+ v2 zl Module

Overview :

The HP J9538A is a modular network switch line card designed for engineers who need to scale 10 Gigabit Ethernet connectivity in enterprise chassis systems. It delivers eight open SFP+ ports supporting 10 GbE links, enabling high‑bandwidth aggregation, uplink, or data‑centre fabric roles. This module is optimized for use in the HP/Aruba 5400 zl and 8200 zl series switches, fitting branch‑office, campus core, or data‑centre aggregation deployments. Because the module plugs into a chassis slot, it integrates with the existing management framework of the switch family and supports hot‑swap replacement without impacting other modules.

Key Features :

  • Eight open 10 GbE SFP+ ports in a single module slot

  • Compatible with HP 5400 zl / 8200 zl series chassis switches

  • Module dimensions 10.3 × 8.13 × 1.75 in (fits standard module bay)

  • Operating temperature 0 °C to 40 °C when certain mini‑GBICs installed

  • Weight approximately 2.1 lb (0.95 kg) for rack‑mount module

Specifications :

SpecificationValue
Brand HP
Part Number J9538A
Product Type 8‑Port 10GbE SFP+ v2 zl Module
Network Ports 8 × 10 GbE SFP+ ports
Compatible Platforms HP 5400 zl / 8200 zl series switches
Operational Temperature 0 °C to 40 °C when mini‑GBIC “B” or later used (32 °F to 104 °F)
Non‑operational Temperature –40 °C to 70 °C (–40 °F to 158 °F)
Relative Humidity 15% to 95% non‑condensing (storage)
Dimensions (H×W×D) 1.75 in × 8.13 in × 10.3 in
Weight 2.09–2.1 lb (0.95 kg)
Module Slot Type zl modular switch slot installation
Power/Heat Dissipation As per chassis specifications (module only)
Supported Transceivers 10 GbE SFP+ LR/SR (see HP transceiver list)
Chassis Ambient Impact When mini‑GBICs used, chassis ambient temp limit = 32 °F to 104 °F (0 °C to 40 °C)
Release Status Retired/End‑of‑Life from HP technical documentation
