HPE  J9775A Aruba 2530 48G non PoE Switch P/N View larger

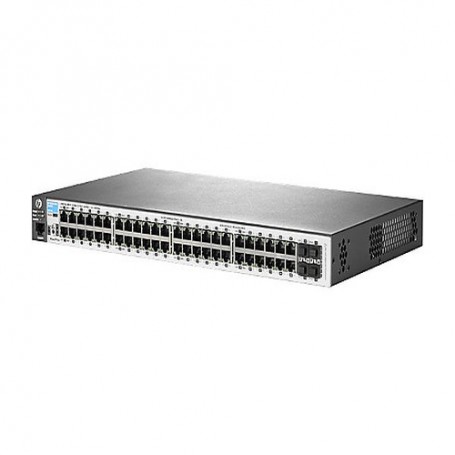

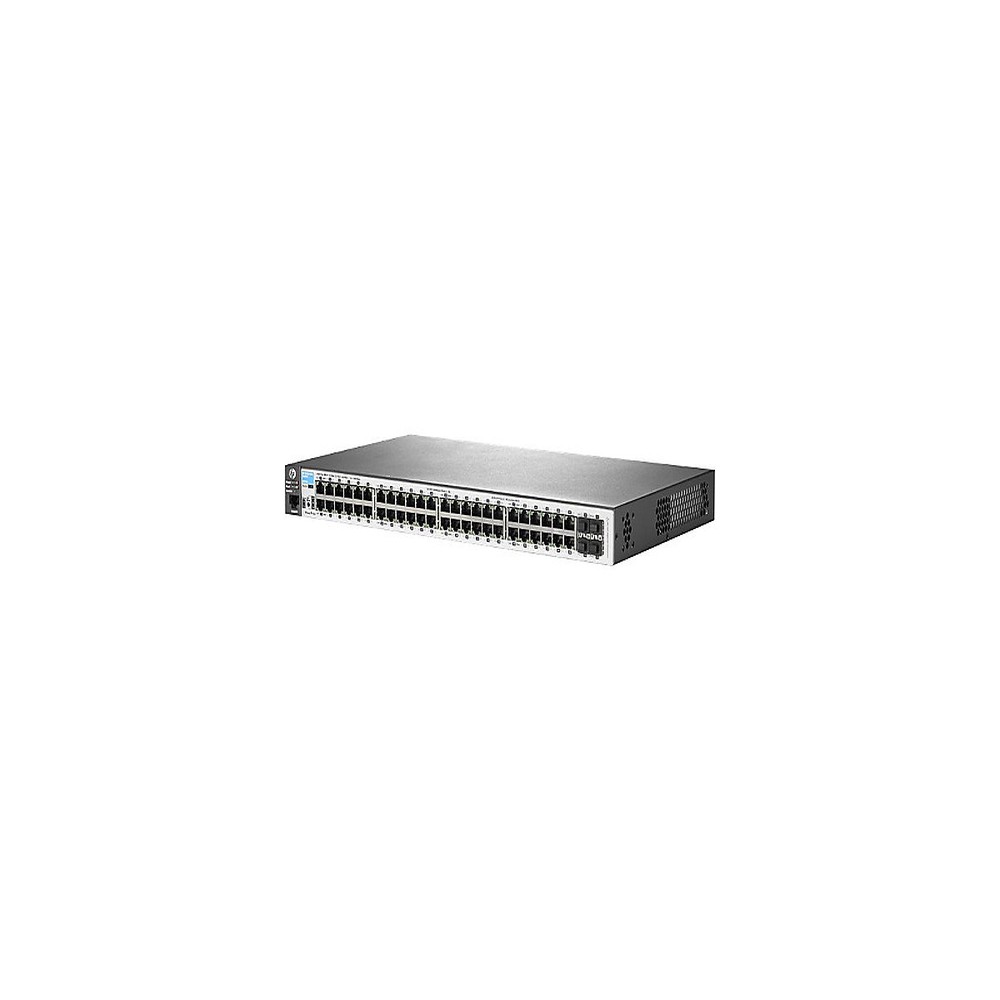

HPE J9775A Aruba 2530 48G non PoE Switch P/N

J9775A

Refurbished

In Stock

HPE  J9775A Aruba 2530-48G - switch - 48 ports - managed - rack-mountable

×




HP, HP Aruba, HPE Switch, HP Switching, HP networking swtich, Aruba, HPE Aruba 2530-48G, HPE Aruba 2530, J9775A, HP J9775A, HPE J9775A, Aruba J9775A, J9775A access, J9775A review, J9775A price, J9775A hpe, J9775A manual, J9775A datasheet, J9775A switch

$485.00

Detailed Specifications

HPE  J9775A Aruba 2530-48G - switch - 48 ports - managed - rack-mountable

Overview  J9775A:

The Aruba  J9775A 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba  J9775A 2530 Switch Series is easy to use and deploy and delivers a consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager, Airwave, and cloud-based Central.
Cost-effective, reliable, and secure Aruba  J9775A Layer 2 switch series for a better mobile-first experience.
ACLs, EEE, traffic prioritization.
8-, 24-, and 48-port Gigabit or Fast Ethernet models.
PoE+ models for voice, video, and wireless.
Supports Aruba  J9775A ClearPass Policy Manager, AirWave, and Central.
Simple deployment with zero-touch provisioning (ZTP).

Cost-Effective, Reliable, and Secure Access Layer Switches

  • The Aruba J9775A 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
  • Fully managed switches deliver full Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, and IPv6 host support.
  • Right size deployment with choice of 8-, 24-, and 48-port models are available with Gigabit or Fast Ethernet ports, and optional PoE+.
  • Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and the ability to disable LEDs and enable port low power mode.
  • Delivers consistent wired/wireless user experience with unified security and management tools such as ClearPass Policy Manager, AirWave, and cloud-based Central. Provides optimal configuration automatically when connected to Aruba  J9775A APs for PoE priority, VLAN configuration, and rogue AP containment.

Security and Quality of Service (QoS)

  • The Aruba  J9775A 2530 Switch Series supports flexible authentication methods including Local MAC, 802.1X, and MAC and Web for greater policy-driven application security.
  • Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, enhance security. Flexible traffic controls include ACLs and QoS.
  • Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues using weighted deficit round robin (WDRR) or strict priority (SP).
  • Defend your IPv6 network with DHCPv6 Protection.

Main Features

  • Switch
  • managed
  • 48 x 10/100/1000 + 4 x Gigabit SFP
  • desktop
  • rack-mountable
  • wall-mountable

Technical Specifications  J9775A

  • Environmental Parameters

  • 32 °F
  • 113 °F
  • 15 - 95% (non-condensing)
  • -40 °F
  • 158 °F
  • 15 - 90% (non-condensing)
  • Header

  • PC
  • English
  • United States
  • Aruba
  • 1
  • Aruba
  • 2530-48G
  • Aruba
  • Interface Provided

  • 1
  • Management
  • 4
  • SFP
  • 48
  • 1000Base-T
  • RJ-45
  • Miscellaneous

  • CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Class A certified, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950-1, VCCI Class A ITE
  • RADIUS, Secure Shell v.2 (SSH2), TACACS+
  • 1
  • SSL
  • Networking

  • Switch
  • Wired/Wireless
  • CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH-2, Telnet, TFTP
  • IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
  • 48
  • Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), BOOTP support, Class of Service (CoS), DHCP support, Dual firmware images, Flow control, Full duplex mode, Generic Attribute Registration Protocol (GARP), Half duplex mode, IPv6 support, LLDP support, Multicast Suppression, Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, sFlow, SNTP support, STP Root Guard, VLAN support
  • 16000 entries
  • Network hubs and switches
  • PoE+
  • Layer 3
  • Yes
  • Desktop, Rack-mountable, Wall-mountable
  • 9220 bytes
  • Gigabit Ethernet
  • Power Device

  • 50/60 Hz
  • AC 120/230 V
  • Internal power supply
  • Processor

  • 1
  • ARM
  • 800 MHz
  • Dimensions & Weight

  • 17.4 in
  • 10 in
  • 1.8 in
  • 6.79 lbs
  • Service & Support

  • Limited lifetime warranty
  • Flash Memory

  • 256 MB
  • Performance

  • Switching capacity
  • 104 Gbps
  • Throughput
  • 77.3 Mpps
  • Ports

  • 48
  • 10/100/1000
  • Ports (2nd)

  • 4
  • Gigabit SFP
  • RAM

  • 128 MB
  • DDR3 SDRAM
