APC SMT2200C Smart-UPS Line Interactive 2200VA Tower 120V View larger
Previous Next

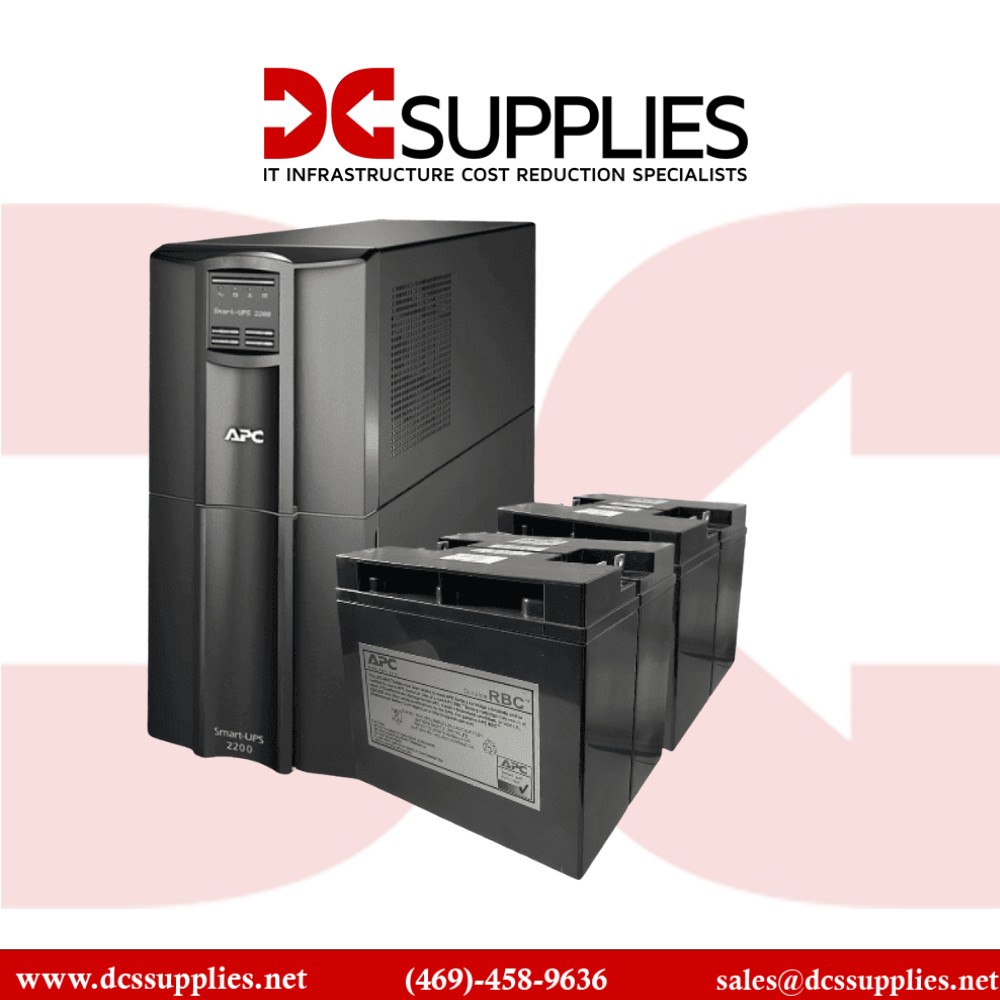

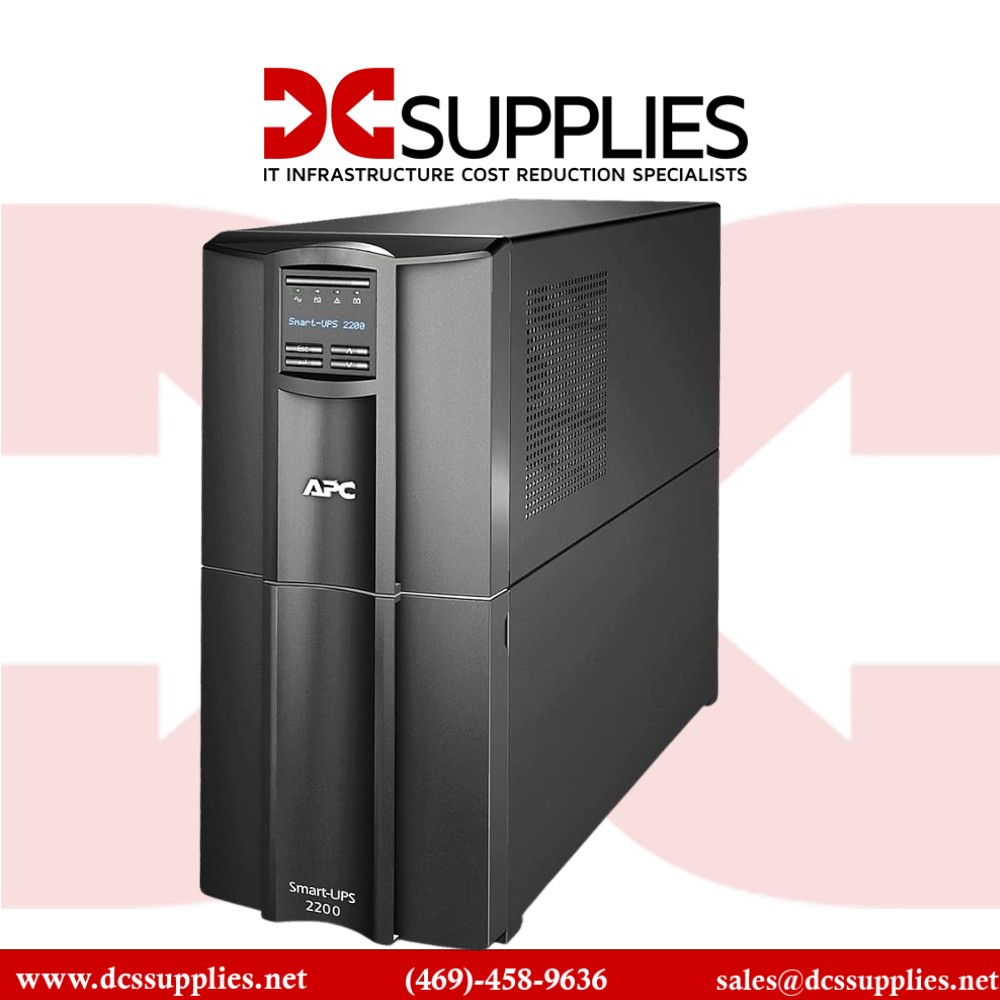

APC SMT2200C Smart-UPS Line Interactive 2200VA Tower 120V

New

In Stock

APC Smart-UPS 2200VA, 120V, with 8 NEMA outlets for reliable backup
×




$1,324.90

  • New

Detailed Specifications

APC

SMT2200C

Smart‑UPS – Line‑Interactive UPS, 2200 VA / 1980 W, 120 V Tower, 8× NEMA 5‑15R + 2× NEMA 5‑20R, SmartConnect, LCD Display, Pure Sine Wave

The APC SMT2200C Smart‑UPS is a high-capacity, line‑interactive tower UPS designed to deliver robust power protection for servers, networking gear, workstations, and critical electronics. Delivering 2200 VA (1980 W) of pure sine wave output, this UPS safeguards sensitive equipment from power disruptions like outages, surges, and voltage fluctuations. With 10 total outlets (8 battery-backup + surge and 2 surge-only), integrated AVR, SmartConnect cloud monitoring, and an intuitive LCD panel, it excels in delivering premium power resilience suitable for small-to-medium data closets, branch offices, retail, and point-of-sale applications.

Features

Built for demanding IT environments, the SMT2200C combines line-interactive topology with full sine wave output to support active–PFC servers and storage devices. Its AVR corrects voltage anomalies without using battery power, conserving runtime for true blackouts. Upon power failure, it switches to its inverter within approximately 6 ms, ensuring equipment continuity

Advanced Options

The built-in SmartConnect port enables plug‑and‑play, secure cloud-based remote monitoring, firmware updates, and performance insights through APC’s portal—no extra hardware or software needed. The front LCD provides real-time metrics for load, runtime, voltage, and battery status. Additionally, the SmartSlot interface supports optional network management cards for advanced remote control and SNMP integration. Designed with user-centric features like hot-swappable batteries, temperature-compensated charging, and ENERGY STAR® certification, the SMT2200C ensures dependable performance in critical environments.

Product Key Features

  • 2200 VA / 1980 W pure sine wave power

  • 8 battery-backup + 2 surge-only NEMA outlets

  • AVR for boost/trim voltage correction

  • SmartConnect cloud-enabled monitoring

  • SmartSlot expansion for network management

  • Multifunction LCD for diagnostics

  • Hot-swappable batteries with fast recharge (~3 h)

  • Tower form factor, ENERGY STAR® certified

Reliability & Performance

Engineered for resilience, the SMT2200C maintains reliable power during brownouts, surges, or outages. Its AVR stabilizes voltage to protect hardware and conserve battery life. With pure sine wave output, it supports complex power supplies like active‑PFC servers. On full load, it provides ~7–10 min of runtime and recharges fully within ~3 hours. The unit operates quietly (~45 dBA) and efficiently (98.5–98.9% across load levels) , making it suitable for office or retail spaces. APC’s $150 K connected equipment guarantee further enhances reliability, backed by a 3‑year UPS and 2‑year battery warranty

Key Features :

  • 2200 VA / 1980 W capacity

  • Pure sine wave output

  • 8 battery‑backup + 2 surge-only outlets

  • AVR voltage regulation

  • Cloud remote monitoring via SmartConnect

  • SmartSlot expansion

  • LCD diagnostics panel

  • Hot‑swappable batteries

  • ENERGY STAR® certified

Specifications :

SpecificationDetails
Model Number SMT2200C
Type Line‑Interactive Smart‑UPS
Capacity 2200 VA / 1980 W
Input Voltage 120 V (range 75–154 V)
Output Voltage 120 V ±5%, pure sine wave
Topology Line‑Interactive
Transfer Time 6 ms typical, 10 ms max

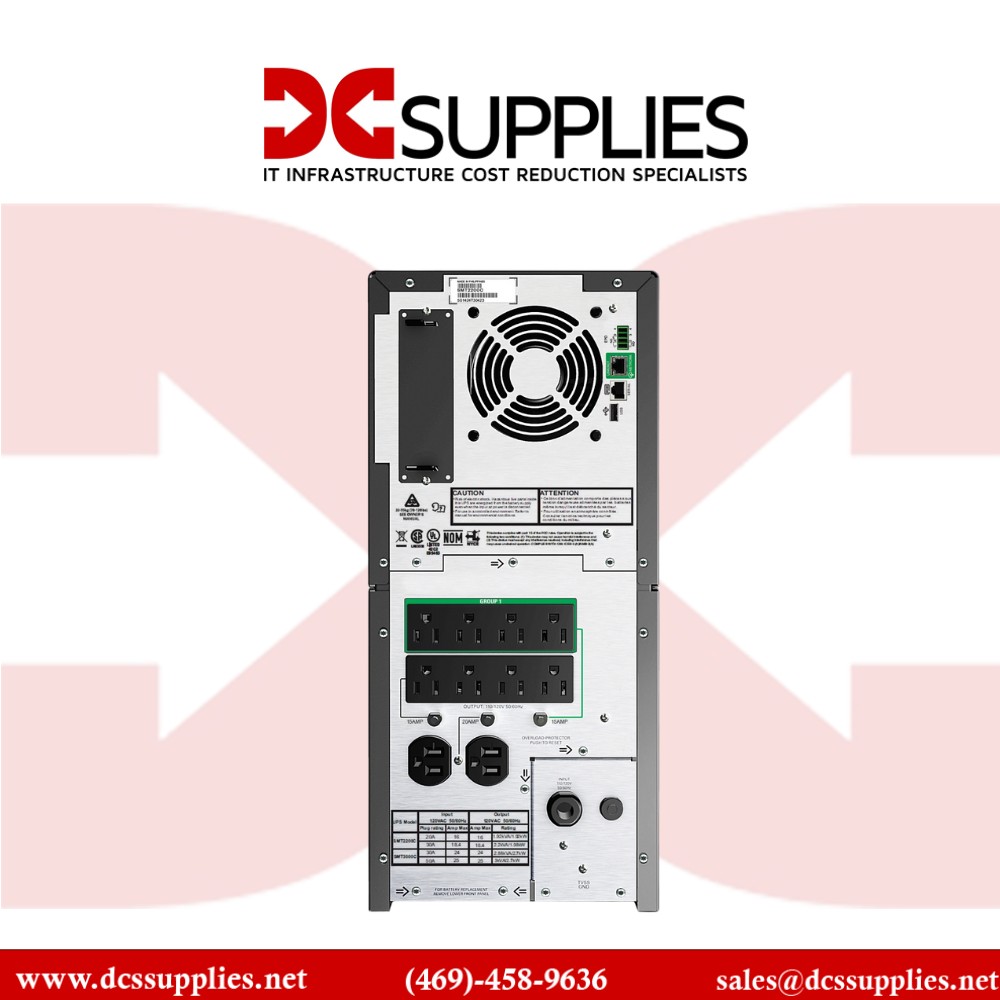

Outlets 8 × NEMA 5‑15R (battery + surge), 2 × NEMA 5‑20R (surge only)
Interface Ports SmartConnect (Ethernet), SmartSlot, USB, Serial
LCD Display Multifunction real-time metrics
Battery Type Sealed lead-acid, hot-swappable
Recharge Time ~3 hours
Runtime (50% Load) ~28 minutes
Runtime (100% Load) ~10 minutes
Efficiency 98.5–98.9% (@25–100% load)
Noise Level ~45 dBA
Dimensions (H×W×D) 17.1″ × 7.7″ × 21.4″ (435 × 196 × 544 mm)
Weight ~112 lb (50.9 kg)
Certifications ENERGY STAR V2.0, UL, RoHS
Warranty 3‑year UPS / 2‑year battery; $150 K equipment coverage
