Detailed Specifications

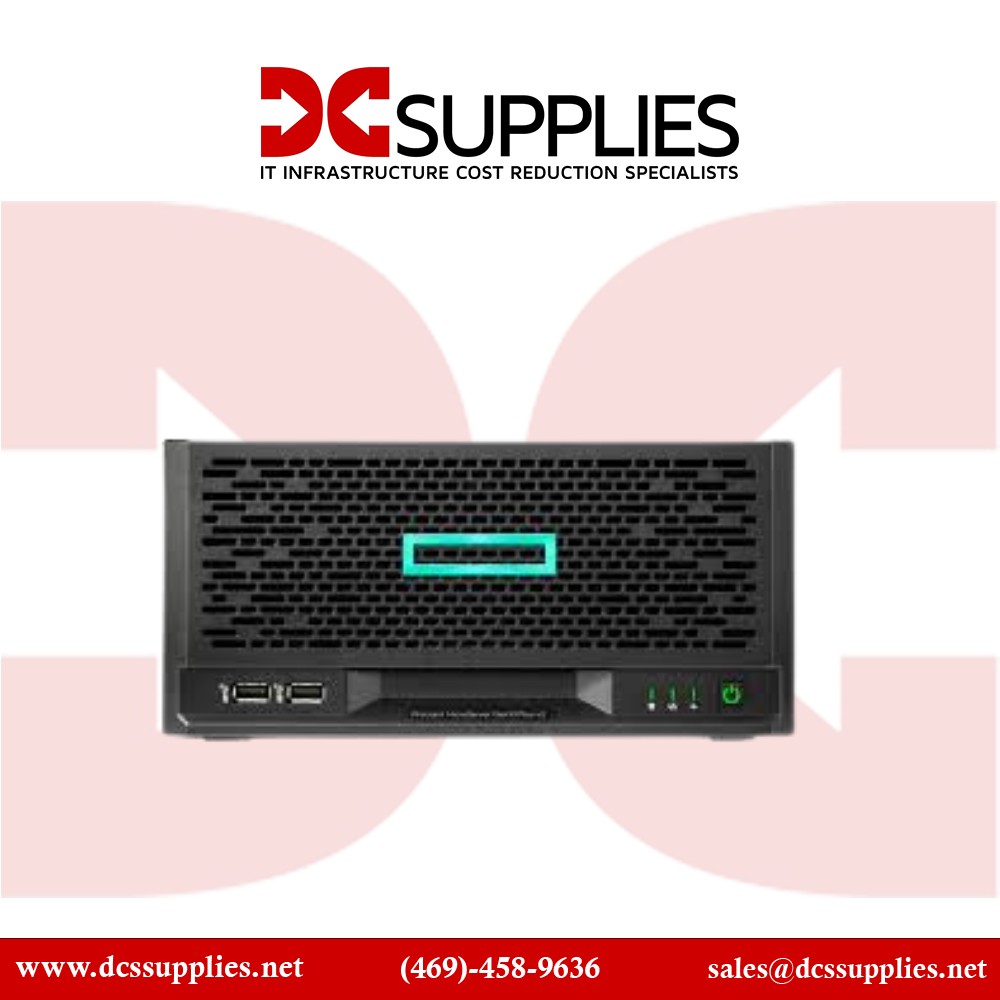

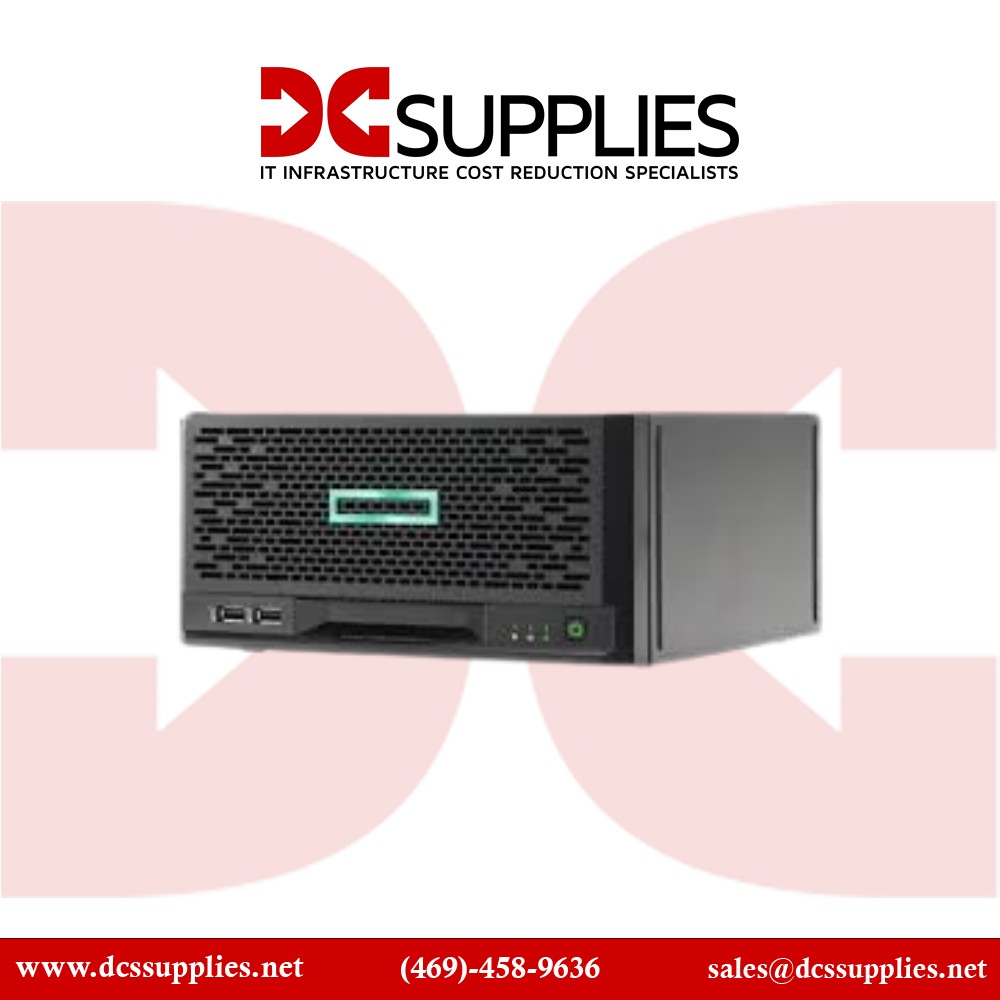

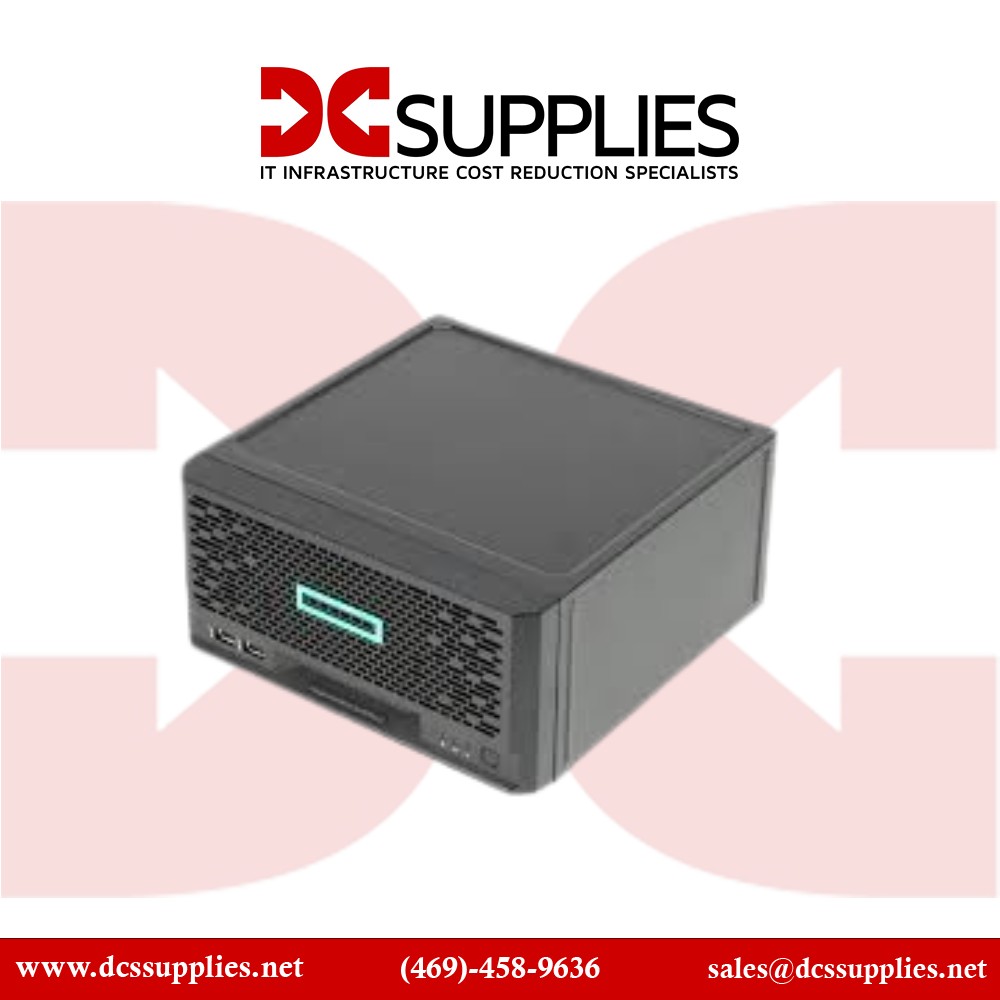

HPE P54644-001 Microsvr G10+ V2 G6405 16G NHP Server
Overview :
HPE P54644-001 ProLiant MicroServer Gen10 Plus v2 delivers an affordable compact yet powerful entry level server that you can customize for on-premises, hybrid cloud, or even workloads demanding datacenter performance. It has the same design as the hpe blade previous version and can be placed flat or vertically depending on customer environment. The latest Intel Xeon® E and Pentium® supported processors deliver compute performance as well as security and remote management into the hp micro server with HPE iLO silicon root of trust. Along with other enhancements such as 4x 1GbE onboard NICs and USB 3.2 Gen2 Type-A, hp Microsvr G10 proliant server whether you want a general- purpose server, NAS or even a virtualization server, you will be surprised at how much you can get out of this small and affordable server.
Specifications :
| Product Name |
HPE Microsvr G10+ V2 G6405 16G NHP Server |
| Manufacturer Part Number |
P54644-001 |
| Product Type |
Server |
| Processor Core |
Dual-core (2 Core) |
| Environmentally Friendly |
Yes |
| Processor Manufacturer |
Intel |
| Redundant Power Supply |
No |
| Number of Total Memory Slots |
2 |
| Optical Drive Type |
No |
| Number of Processors Supported |
1 |
| Number of Processors Installed |
1 |
| Total Hard Drive Capacity |
No |
| RAID Supported |
Yes |
| Ethernet Technology |
Gigabit Ethernet |
| Maximum Power Supply Wattage |
180 W |
| Product Family |
ProLiant MicroServer Gen10 Plus v2 |
| Limited Warranty Duration |
1 Year |
| Processor Model |
G6405 |
| Memory Technology |
DDR4 SDRAM |
| Operating System |
No |
| Chipset |
Intel C252 |
| Form Factor |
Ultra Micro Tower |
| Processor Speed |
4.10 GHz |
| Processor Type |
Pentium Gold |
| Controller Type |
Serial ATA/600 |
| Maximum Memory Supported |
64 GB |
| Standard Memory |
16 GB |
| Cache |
4 MB |
| Chipset Manufacturer |
Intel |
| Chipset Model |
C252 |
| Number of Power Supplies Supported |
1 |
| Number of Power Supplies Installed |
1 |
| Number of Total Expansion Bays |
4 |
| Number of 3.5" Bays |
4 |
| Number of Total Expansion Slots |
1 |
| VGA |
Yes |
| Number of Network (RJ-45) Ports |
4 |
| Network (RJ-45) |
Yes |
| DisplayPort |
Yes |
| Total Number of USB Ports |
7 |
| Number of USB 2.0 Ports |
1 |
| Number of Occupied Memory Slots |
1 |
| Hot Swappable Bays |
No |
| Memory Clock Speed |
3.20 GHz |
| Controller Model |
VROC |
| Number of LFF Bays |
4 |
| PCI Express Details |
1 standard (Low Profile) PCIe 4.0 |
| Height |
4.7" |
| Width |
9.7" |
| Depth |
9.7" |
| Product Series |
MicroServer Gen10 Plus v2 |
| Plug / Connector Type |
C5 |
| Operating System Supported |
Windows Server 2019 Essentials
Windows Server 2019 Standard
Windows Server 2019 Datacenter
Hyper-V
Windows Server 2022 Essentials
Windows Server 2022 Standard
Windows Server 2022 Datacenter
Red Hat Enterprise Linux 8.4
|
| Product Line |
ProLiant |
| Security Features |
- UEFI Secure Boot and Secure Start support
- Immutable Silicon Root of Trust
- FIPS 140-2 validation
- Common Criteria certification
- Configurable for PCI DSS compliance
- Ability to rollback firmware
- Secure erase of NAND/User data
- TPM (Trusted Platform Module) 2.0 option
- Front bezel lock feature, standard
- Padlock slot, standard
- Kensington Lock slot, standard
- Power cord clip, standard
|
| Error Checking |
ECC |
| Input Voltage |
120 V AC
230 V AC
|
| Signal Processing |
Unregistered (Unbuffered) |
| Limited Warranty |
1 Year |
| Number of VGA Ports |
1 |
| Number of DisplayPorts |
1 |
| Stock Details |
| Manufacturer |
HPE |
| Manuf Part# |
P54644-001 |
