HPE P20249-B21 Dl380 Gen10 5218 1P 32G Nc 8SFF Server View larger
Previous Next

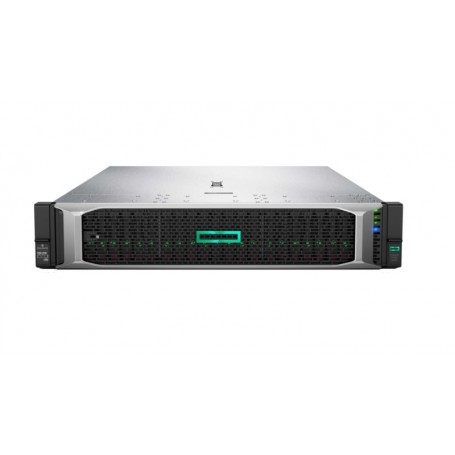

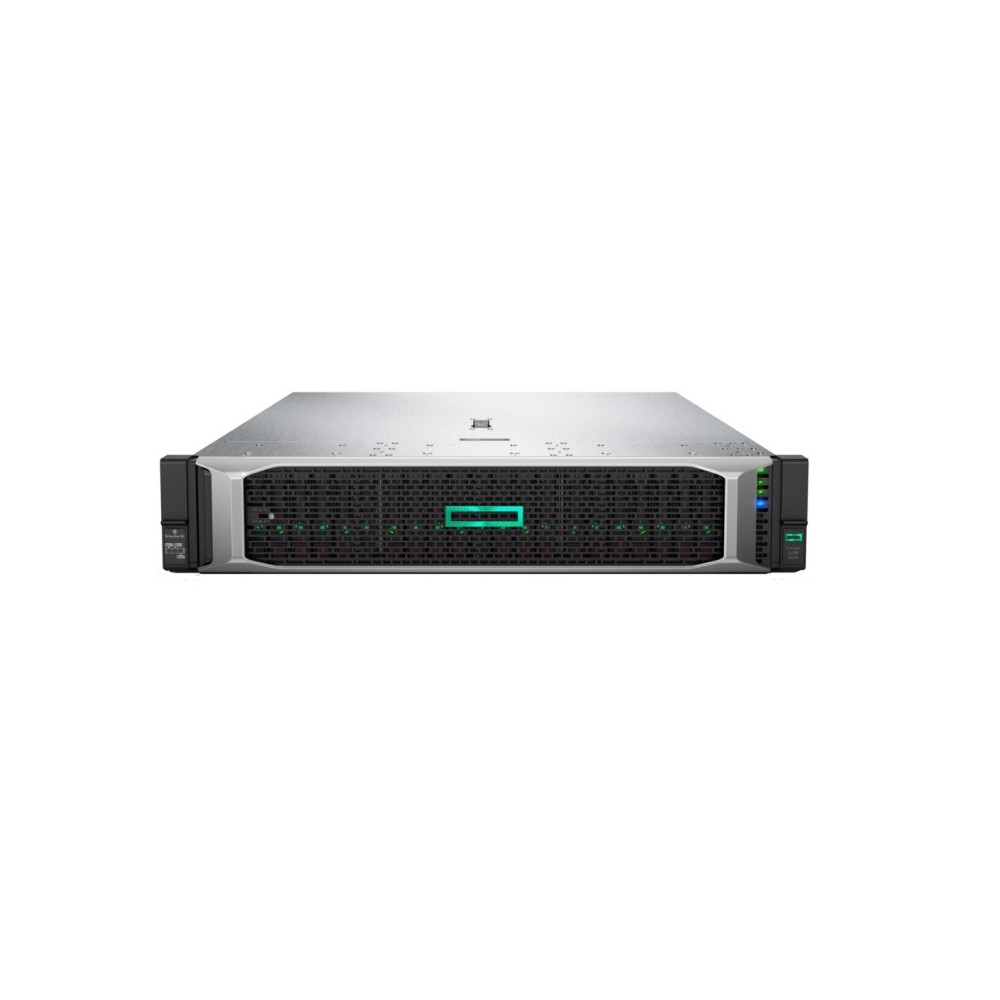

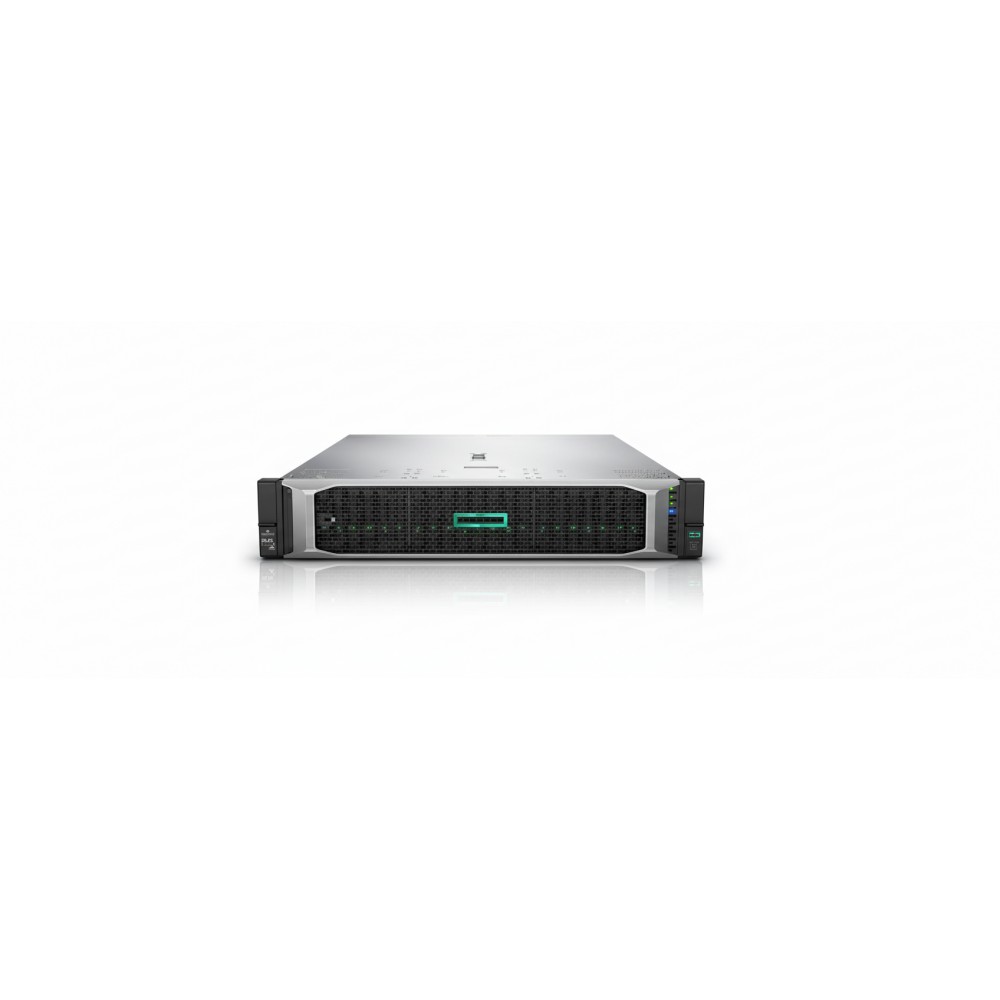

HPE P20249-B21 Dl380 Gen10 5218 1P 32G Nc 8SFF Server

New

In Stock

HPE Proliant DL380 Gen10 Xeon-G 5218 16-Core 32GB
×




$2,930.00

  • New

Detailed Specifications

HPE P20249-B21

ProLiant P20249‑B21 DL380 Gen10 Server – Intel Xeon Gold 5218, 32 GB, 8 SFF Bays, P408i‑a RAID

The HPE ProLiant P20249‑B21 DL380 Gen10 Server combines the power of a 16‑core Intel Xeon Gold 5218 CPU with 32 GB ECC memory and enterprise-grade storage in a versatile 2U rackmount platform. Featuring eight hot-swap SFF bays and the proven Smart Array P408i‑a controller,

Features

it's an excellent choice for virtualization, high-performance computing, and agile storage environments. Built on the trusted DL380 Gen10 architecture, this server supports modern workloads with modular expansion capabilities. Its chassis can accommodate up to 30 SFF or 20 NVMe drives—ideal for data-rich.

Advanced Options

applications. Equipped with either Gigabit or high-speed 10/25 GbE networking via Networking Choice, and remote infrastructure management through HPE iLO 5, the server is tailored for distributed IT environments.

Product Key Features

  •  Powered by Intel Xeon Gold 5218 16-core CPU (2.3 GHz base, 3.9 GHz Turbo, 22 MB L3 cache)

  •  32 GB DDR4 ECC Registered RDIMM (1 × 32 GB dual rank, expandable up to 3 TB)

  •  8 × 2.5″ SFF hot-swappable drive bays, expandable to 30 SFF or 20 NVMe

  •  HPE Smart Array P408i‑a RAID controller (12 Gb/s SAS, 2 GB cache)

  •  NC (Networking Choice): onboard Gigabit or optional 10/25 GbE via FlexibleLOM/PCIe

  •  800 W Platinum hot-plug PSU, chassis supports redundancy

  •  Modular 2U chassis with rail kit & cable management, includes 3 PCIe Gen3 slots (up to 8 in 2‑socket config)

Reliability & Performance

Engineered for resilient operations, this server integrates ECC memory, redundant power and cooling options, and a silicon root-of-trust security framework. The P408i‑a RAID controller ensures high-performance data management with a 2 GB cache. Its flexible chassis supports advanced features like persistent memory and GPU acceleration, making it ideal for use in virtualization, databases, and analytics workloads.

Key Features :

    • Intel Xeon Gold 5218, 16 cores, 2.3–3.9 GHz, 22 MB cache

    • 32 GB DDR4 ECC Registered RDIMM (1× dual-rank); expandable to 3 TB

    • 8 × 2.5″ SFF hot-plug bays; scalable to 30 SFF / 20 NVMe

    • HPE Smart Array P408i‑a RAID (12 Gb/s, 2 GB cache)

    • Networking Choice: onboard GbE or optional 10/25 GbE via FlexibleLOM/PCIe

    • 800 W Platinum hot-plug PSU; chassis redundancy ready

    • 3 × PCIe Gen3 slots (expandable in 2P); OOB microSD slot

    • HPE iLO 5 remote management with security features

    • 2U rackmount, easy-install rails, cable management arm

    • Security: silicon root-of-trust, TPM, Secure Boot support

SpecificationDetails
Model Number P20249‑B21
Form Factor 2U Rackmount
CPU Intel Xeon Gold 5218 – 16 cores / 32 threads, 2.3 GHz base / 3.9 GHz turbo, 22 MB L3, 125 W
Memory 32 GB DDR4 ECC RDIMM (1×32 GB dual-rank); up to 3 TB over 24 slots
Drive Bays 8 × 2.5″ SFF front (hot-plug), chassis expandable to 30 SFF / 20 NVMe
RAID Controller HPE Smart Array P408i‑a with 2 GB cache; supports RAID 0/1/5/6/10/50/60
Networking NC model: onboard Gigabit; optional 10/25 GbE via FlexibleLOM/PCIe
Expansion Slots 3 × PCIe Gen3; up to 8 in 2P configurations; microSD slot
Power Supply 800 W Platinum hot-plug (redundant capable)
Management HPE iLO 5 with Intelligent Provisioning; optional Advanced licenses
Security Silicon root-of-trust, TPM, Secure Boot supported
Dimensions (H×W×D) 3.4″ × 17.5″ × 26.7″ (87 × 445 × 678 mm)
Weight ~32.5 lb (14.8 kg)
Power Input 110–240 VAC, 50/60 Hz
Operating Temp 10–35 °C standard datacenter environ.
