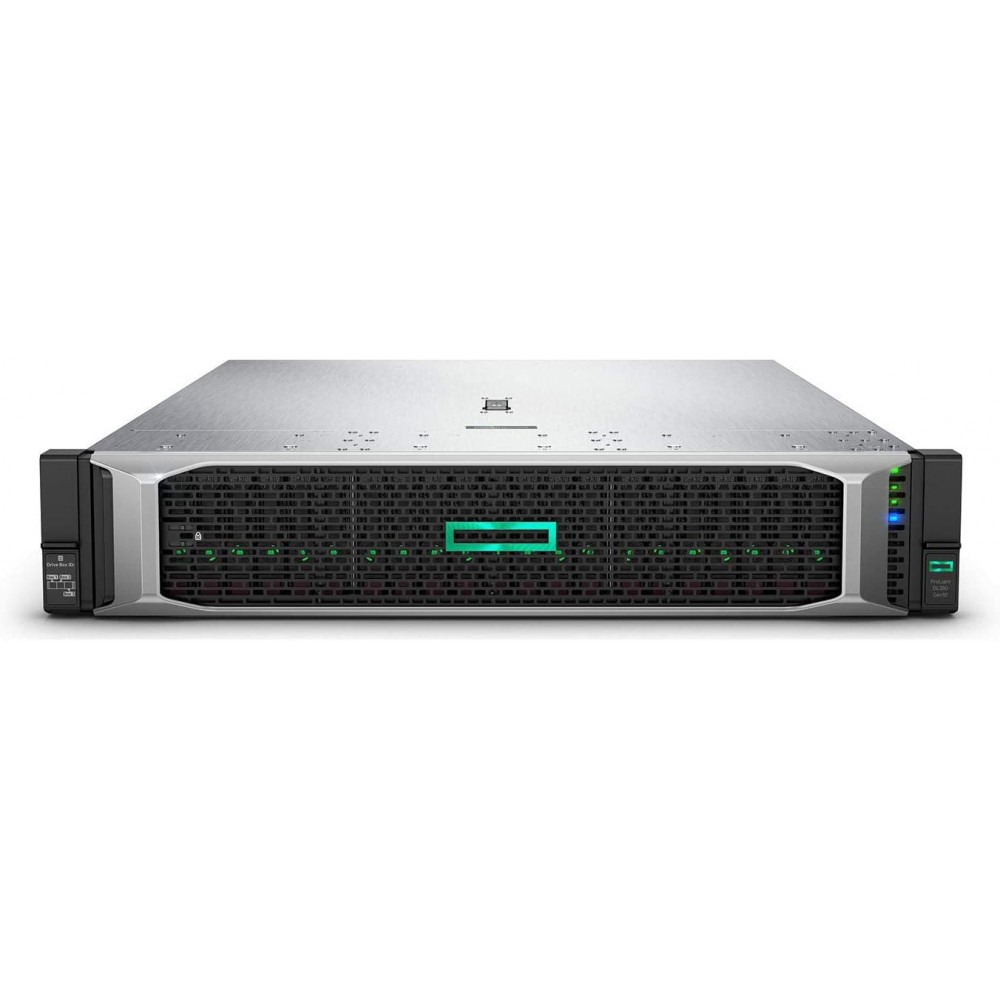

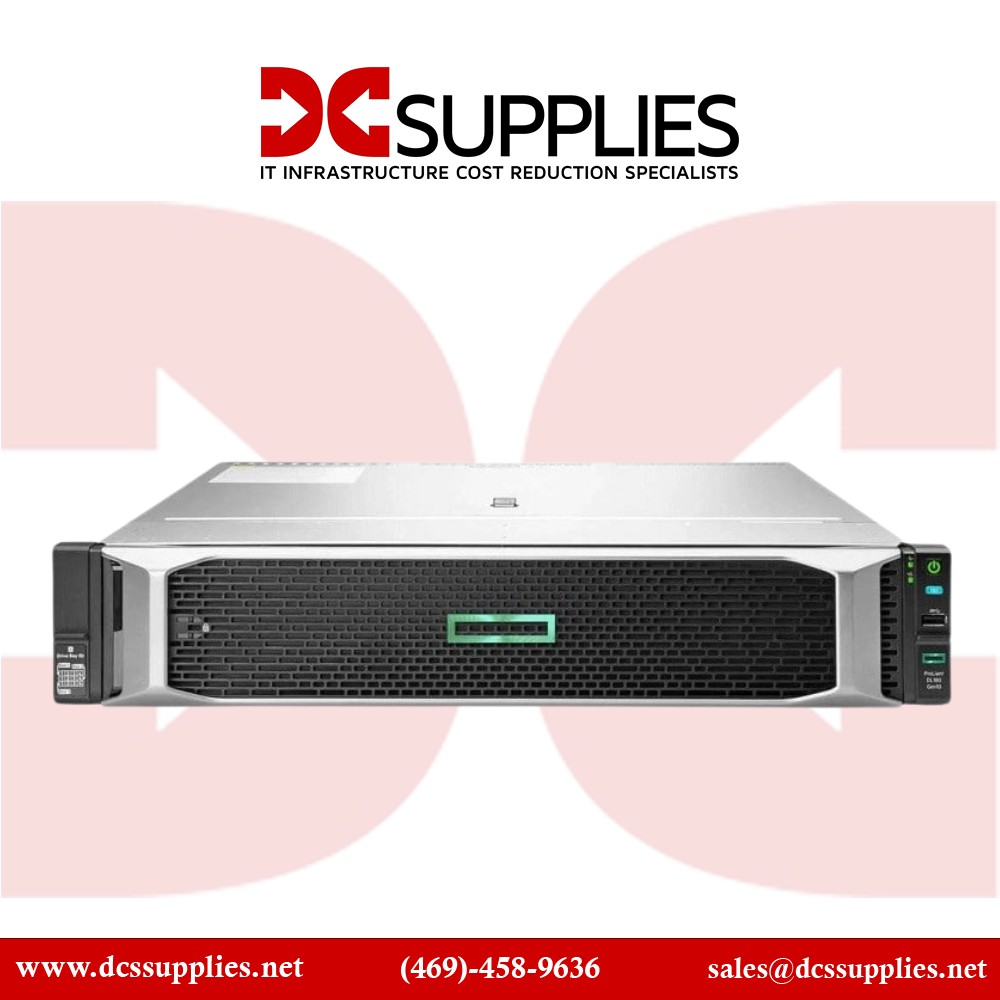

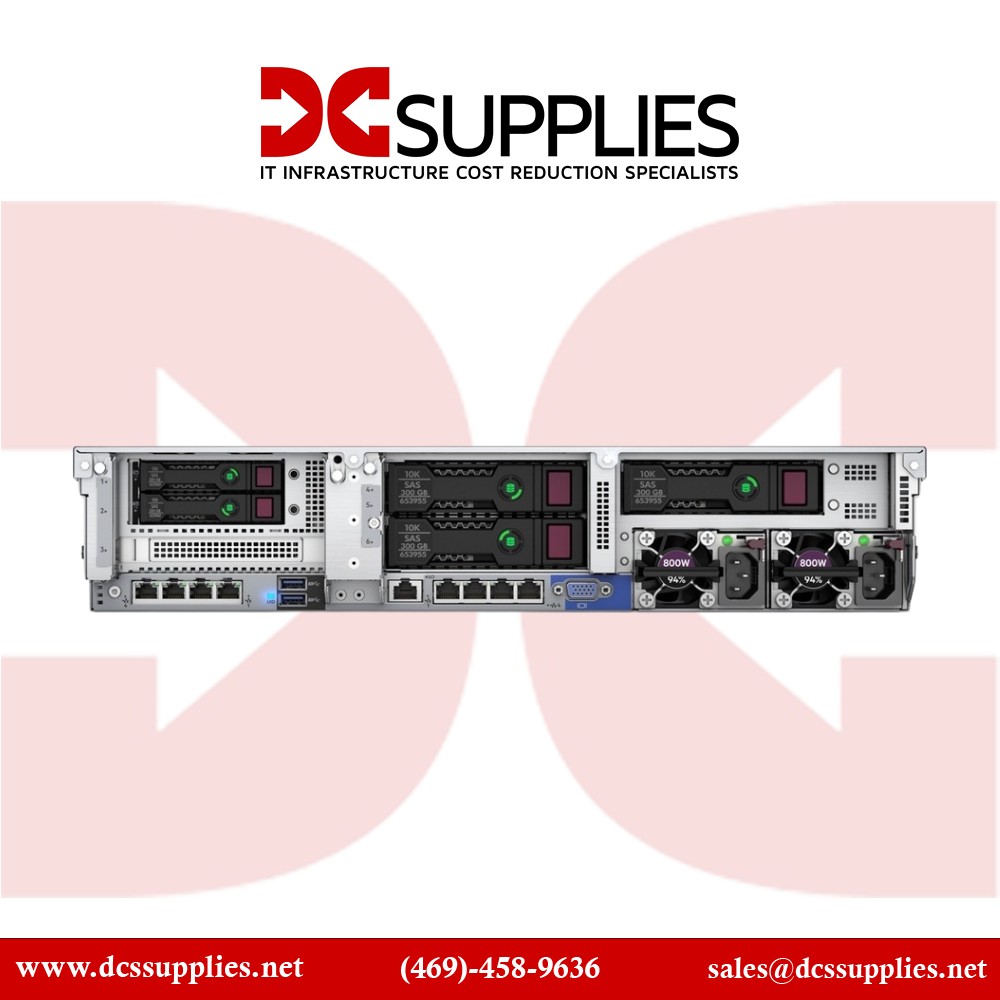

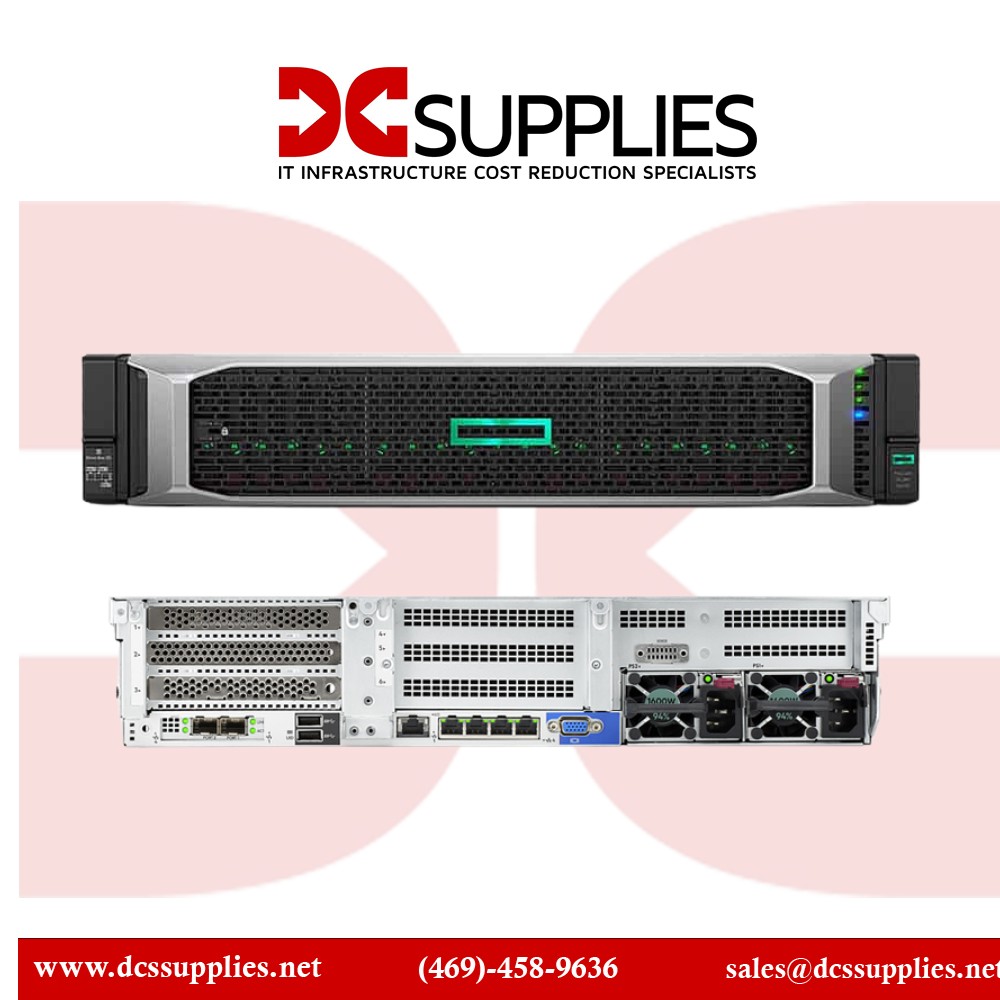

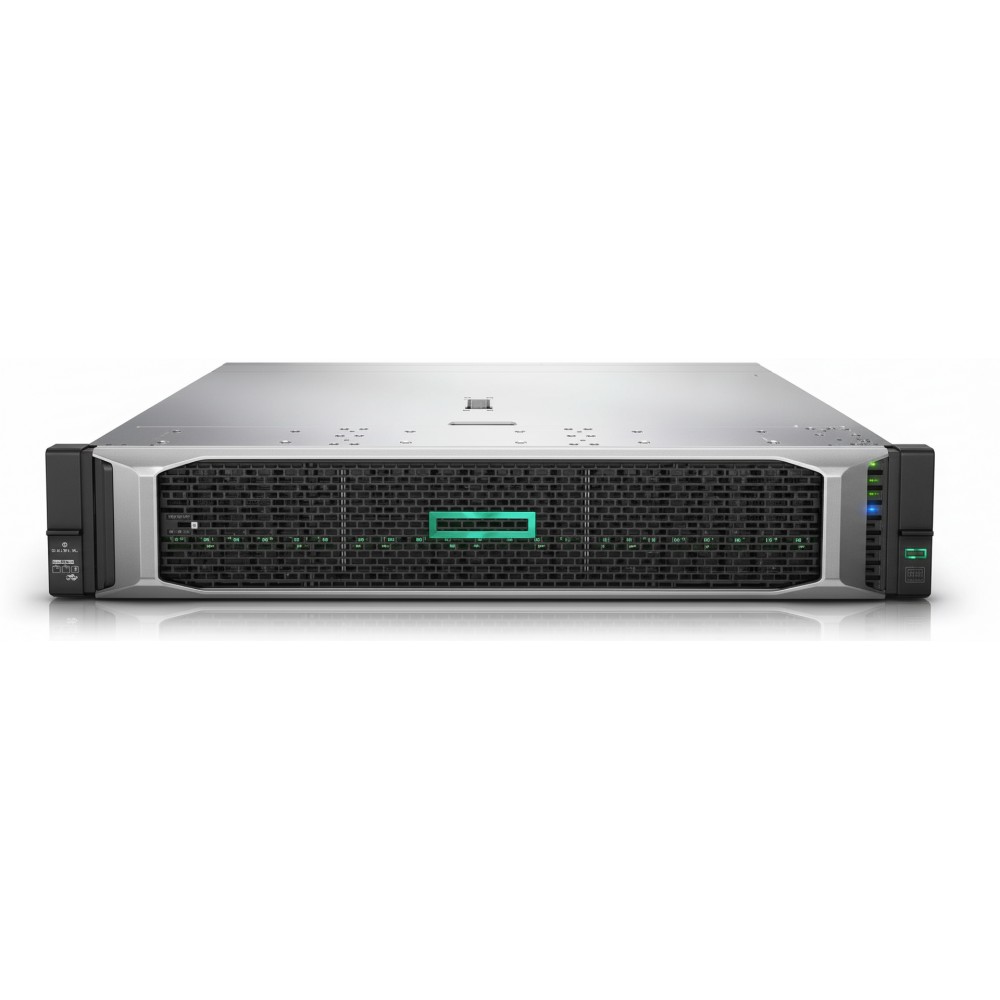

HPE Proliant P39380-B21 DL380 Gen10 Xeon Gold 5220 18-Core 32GB

New

HPE Proliant P39380-B21 DL380 Gen10 Xeon Gold 5220 18-Core...

×




  • New

Detailed Specifications

HPE P39380-B21

ProLiant P39380‑B21 DL380 Gen10 Server – Intel Xeon Gold 5220 (18‑Core), 32 GB DDR4, 8 SFF Bays, P408i‑a RAID

The HPE ProLiant P39380‑B21 is a high-performance, single‑socket 2U rackmount server based on Intel’s 2nd‑Gen Xeon Scalable architecture. With 18 physical cores, 32 GB ECC memory, enterprise-grade RAID,

Features

and flexible networking, it’s an ideal platform for virtualization, database operations, and analytics in both SMB and enterprise deployments. Powered by a powerful Intel Xeon Gold 5220 CPU and supporting up to 30 SFF drives or NVMe storage, this DL380 Gen10 server delivers balanced compute, storage, and I/O performance. The Networking Choice (NC) design includes high-speed .

Advanced Options

10/25 GbE connectivity with SFP28 for modern data center requirements. Integrated HPE iLO 5 enables out-of-band management for remote monitoring, firmware control, and provisioning—streamlining deployment across distributed environments.

Product Key Features

  •  Intel Xeon Gold 5220 18‑core (2.2 GHz base, up to 3.9 GHz Turbo)

  •  32 GB DDR4 ECC Registered RAM, expandable up to 1.5 TB (or 3 TB LRDIMM)

  •  8 × 2.5″ SFF hot-plug drive bays, chassis scalable to 30 SFF or 20 NVMe

  •  HPE Smart Array P408i‑a RAID with 2 GB cache supporting SAS/SATA RAID levels

  •  NC variant includes onboard 10/25 GbE SFP28 NIC (Broadcom BCM57414)

  • 800 W Platinum hot-plug power supply, redundant-capable chassis

  •  Modular expansion with 3× PCIe Gen3 slots (up to 8 in dual‑CPU), OOB microSD slot

Reliability & Performance

Engineered for reliability, the server includes ECC memory protection, hot-swappable fans and power supplies, and an internal chassis designed for optimized airflow. The P408i‑a RAID controller ensures fast, redundant storage via 12 Gb/s SAS and SATA, while chipset features like silicon root-of-trust and secure boot harden the system. Designed for growth, optional add-ons include persistent memory, NVIDIA GPUs, additional NICs, and expansion cards—supporting evolving workload demands.

Key Features :

  • Intel Xeon Gold 5220 (18C/36T, 2.2–3.9 GHz)

  • 32 GB DDR4 ECC Registered RAM (1 × 32 GB; supports up to 3 TB)

  • 8 × hot-plug 2.5″ SFF bays (chassis expandable to 30 SFF/NVMe)

  • HPE Smart Array P408i‑a, 2 GB cache, 12 Gb/s SAS

  • Onboard networking: 2 × 10/25 GbE SFP28 NIC

  • 800 W Platinum hot-swap PSU; supports redundancy

  • Expansion slots: PCIe Gen3 ×8, ×16, ×8; microSD slot

  • HPE iLO 5 remote management with security features

  • Silicon root-of-trust, secure boot, TPM, ECC protection

SpecificationDetails
Model Number P39380‑B21
Server Type 2U Rackmount; 1‑socket, supports 2 sockets
Processor Intel Xeon Gold 5220 – 18 cores / 36 threads, 2.2–3.9 GHz Turbo
CPU Socket FCLGA3647, chipset Intel C621
Memory 32 GB DDR4 ECC Registered (1×32 GB); max 1.5 TB RDIMM / 3 TB LRDIMM
DIMM Slots 24 total (23 free)
Storage Bays 8 × 2.5″ SFF hot-plug; expandable to 30 SFF or 20 NVMe bays
RAID Controller HPE Smart Array P408i‑a (2 GB cache, supports multiple RAID levels)
Network Interfaces 2 × 10/25 GbE SFP28 NIC (Broadcom BCM57414)
Expansion Slots PCIe Gen3: ×8 FL-FH, ×16 FL-FH, ×8 FH; microSD slot
Power Supply 800 W Platinum hot-plug; redundancy supported
Management HPE iLO 5, Intelligent Provisioning, security dashboard
Security Silicon root-of-trust, Secure Boot, TPM, ECC memory
Dimensions (H × W × D) 3.4″ × 17.5″ × 26.7″ (87 × 445 × 678 mm)
Weight ~32.5 lb (14.8 kg)
Operating Temperature 50–95 °F (10–35 °C)
Humidity 8–90 % non-condensing
Power Input 120/230 VAC, 50/60 Hz
Certifications ENERGY STAR 3.0, RoHS, WEEE, ASHRAE A3/A4
