Hpe P55247-B21 Dl380 G10+ 4314 Mr416i-P Nc 8sff Server

New

Hpe P55247-B21 Dl380 G10+ 4314 Mr416i-P Nc 8sff Server

×




  • New

Detailed Specifications

HPE P55247-B21

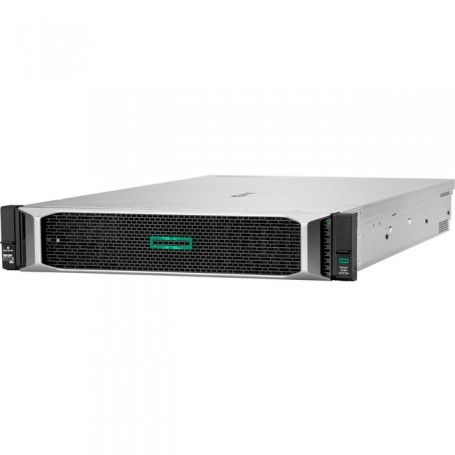

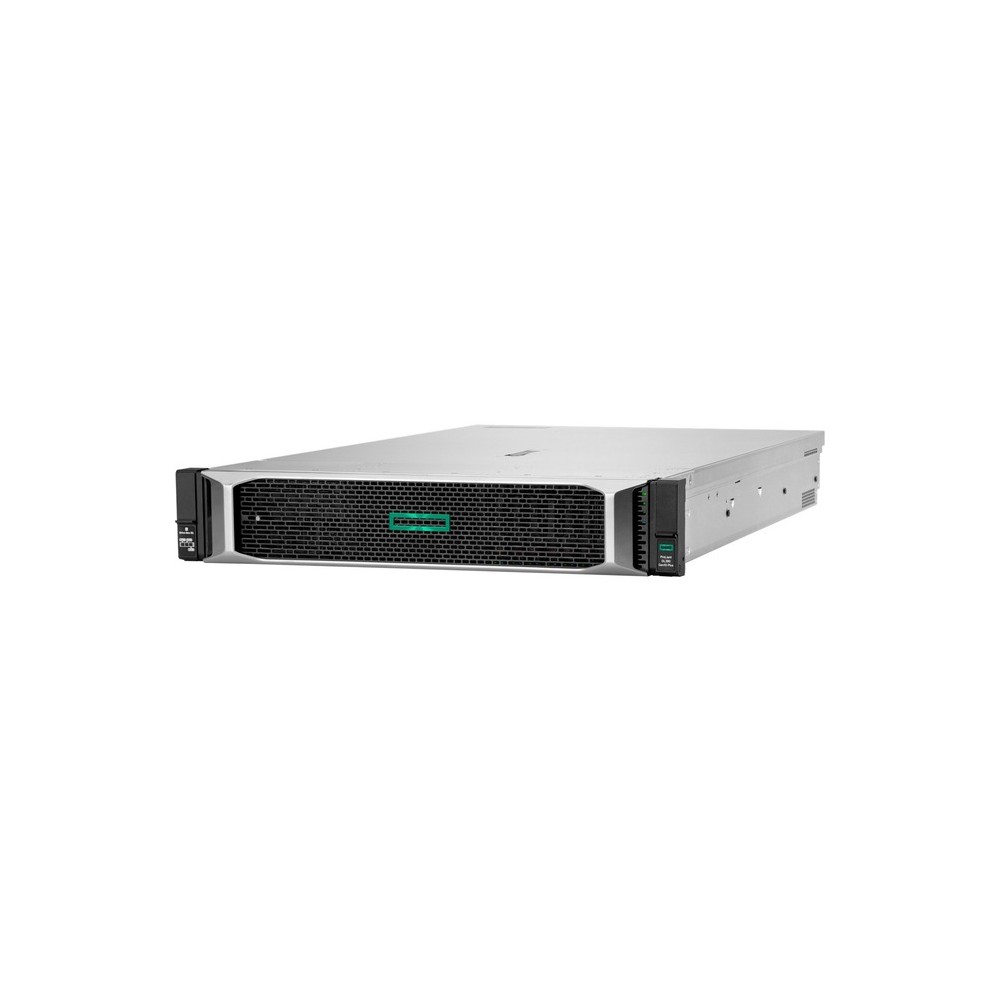

ProLiant P55247-B21 DL380 Gen10+ Server – Intel Xeon Silver 4314, MR416i-p RAID, 8SFF Hot-Plug Bays, 2U Rackmount

The HPE ProLiant DL380 Gen10+ P55247-B21 Server is a highly adaptable enterprise-grade 2U rackmount system powered by Intel Xeon Silver 4314 and equipped with an MR416i-p RAID controller. Tailored for virtualization, database hosting, and high-performance storage needs, it delivers a balance of performance, security, and scalability for data-driven businesses.

Features

Combining Intel’s scalable architecture with HPE’s trusted ProLiant platform, this server is designed to handle mission-critical tasks with flexibility and resilience. The 8 SFF hot-plug drive bays support a mix of SSDs and HDDs for tiered storage, while the MR416i-p RAID controller ensures robust performance with data protection.

Advanced Options

This DL380 Gen10+ model supports PCIe Gen4 expansion slots, enabling faster I/O throughput and future-ready upgrades. With HPE iLO 5 management, administrators get advanced remote access, security enforcement, and provisioning control—all in a rack-dense, data center–friendly design.

Product Key Features

    •  Intel Xeon Silver 4314 with 16 cores and efficient multithreading

    •  DDR4 ECC Registered memory support up to 2TB for scalable workloads

    •  8 × SFF front hot-plug bays for high-performance storage flexibility

    •  MR416i-p RAID controller with 16-port SAS and PCIe Gen4 interface

    •  Dual-port network options with 1/10/25GbE expandability

    •  2U rackmount form factor designed for enterprise-class reliability

Reliability & Performance

Built for continuous uptime, the DL380 Gen10+ includes ECC memory, redundant power support, and integrated TPM 2.0 security features. The 16-core Xeon Silver 4314 CPU balances multithreaded performance and energy efficiency, making it ideal for virtualization or file server roles. Paired with the high-performance MR416i-p RAID controller, it ensures enterprise-class data integrity and throughput, even under demanding workloads.

Key Features :

  • Intel Xeon Silver 4314 (16-core, 2.4GHz base, 3.4GHz turbo)

  • Supports up to 2TB DDR4 ECC Registered memory

  • 8 × SFF (2.5") hot-plug front drive bays

  • MR416i-p RAID Controller – 16-port SAS, PCIe Gen4

  • Dual-redundant hot-plug power supply support

  • 2U rackmount server chassis

  • Up to 8 × PCIe Gen4 expansion slots

  • HPE iLO 5 remote management

  • Integrated security: TPM 2.0, Silicon Root of Trust

  • Flexible networking – 1GbE/10GbE/25GbE options

SpecificationDetails
Model Number P55247-B21
Product Type 2U Rackmount Server
Processor Intel Xeon Silver 4314 – 16 cores / 32 threads
CPU Speed 2.4GHz base / 3.4GHz turbo
Memory Capacity Up to 2TB DDR4 ECC Registered
Memory Slots 16 DIMM slots (configurable)
Drive Bays 8 × 2.5″ SFF hot-plug bays
RAID Controller MR416i-p (16-port SAS, PCIe Gen4, 12Gbps)
Networking Optional 1GbE/10GbE/25GbE NIC modules
Expansion Slots Up to 8 × PCIe Gen4 slots
Management HPE iLO 5, Intelligent Provisioning
Power Supply Dual redundant hot-plug (model dependent)
Security TPM 2.0, Secure Boot, Silicon Root of Trust
Form Factor 2U Rackmount
Operating System OS not included (supports VMware, Windows, Linux)
