Detailed Specifications

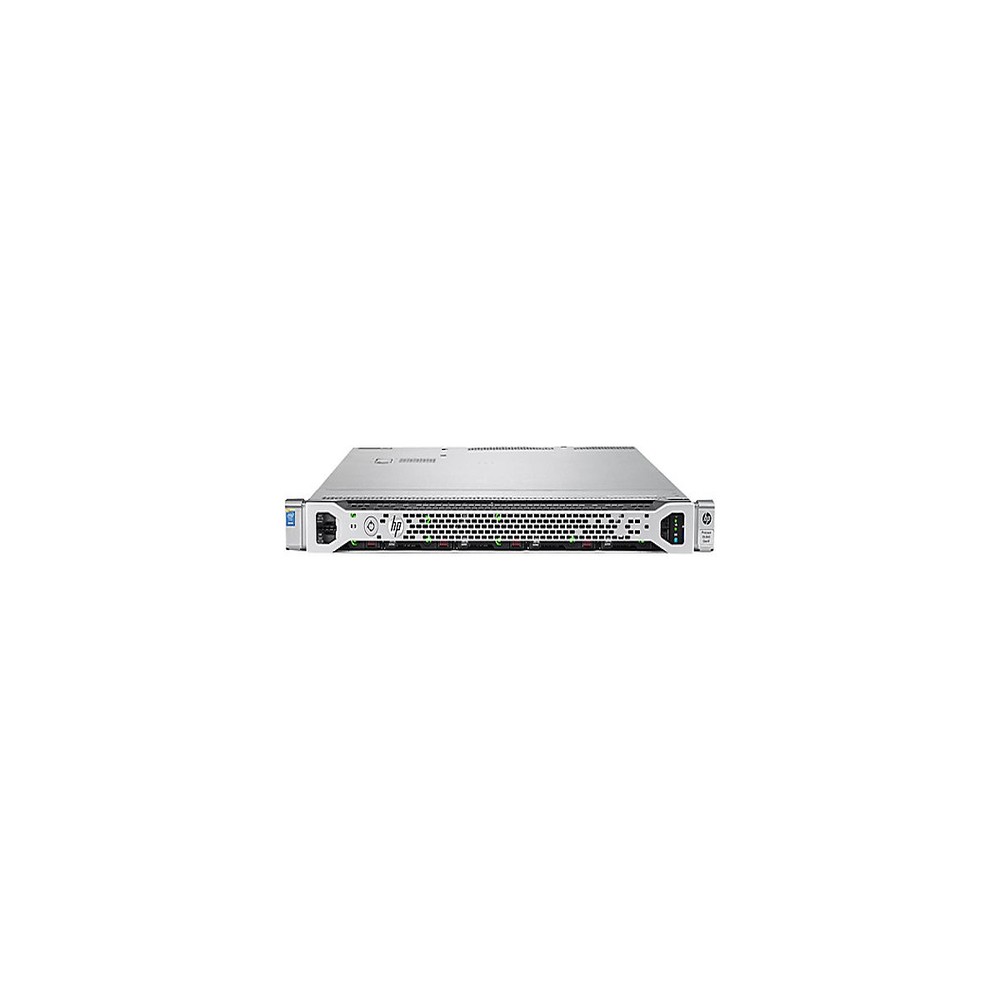

HP ProLian 849455-S01t DL360 Gen9 1U Rack Server 16GB DDR4 SDRAM
Overview :
Does your data center need a performance-driven dense 1U server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant 849455-S01 DL360 Gen9 Server delivers a 1U chassis with up to two processors, delivering an optimal unit that combines high performance, low energy consumption, improved uptime, and increased density. Leveraging Intel's latest 849455-S01 E5-2600 v4 processors with a 21% performance gain, plus the latest 2400 MHz HPE DDR4 SmartMemory supporting up to 3 TB and up to 23% performance increase. Manage your DL360 Gen9 Server in any IT environment by automating the most essential server lifecycle management tasks with HPE OneView and HPE Integrated Lights-Out: deploy, update, monitor, and maintain with ease.
| Processor |
Intel® Xeon® E5-2620 v4 (8 core, 2.1 GHz, 20 MB, 85W) |
| Number of processors |
1 or 2 |
| Processor number |
1 |
| Processor cache |
20 MB L3 849455-S01 |
| Processor core available |
8 |
| Processor speed |
2.1 GHz |
| Memory type |
HPE DDR4 SmartMemory |
| Memory, standard |
16 GB (2x 8 GB) RDIMM |
| Drive description |
(4) LFF SAS/SATA/SSD
(8) SFF SAS/SATA/SSD or
(10) SFF SAS/SATA/SSD
(6) SFF NVMe (optional)
NVMe support via Express Bay will limit max drive capacity |
| Optical drive type |
None included |
| Network controller |
1 embedded HPE 1 Gb Ethernet 331i adapter 4 ports |
| Storage controller |
HPE H240ar Smart Host Bus Adapter |
| Expansion slots |
2 PCIe 3.0, 1 full-height/three-quarter length and 1 low profile |
| System fan features |
5 standard hot plug fans, redundant |
| Power supply type |
1 HPE 500W Flex Slot Platinum power supply |
| Form factor chassis |
Rack 849455-S01 |
| Form factor (fully configured) |
1U |
| Form factor |
1U |
| Included hard drives |
None included, 8 SFF drives supported |
| Infrastructure management |
Standard: HPE iLO Management with Intelligent Provisioning Optional: HPE iLO Advanced, HPE Insight Control, and HPE OneView |
| Product dimensions (H x W x D) |
1.7 x 17.1 x 27.5 in |
| Weight |
27 lb |
| Memory slots |
24 DIMM slots |
| Maximum memory |
3.0TB |
