HPE 874461-S01 ProLiant DL360 Gen10 Rack Mountable Xeon Gold 5118 2.3 GHz - 32 GB View larger
Previous Next

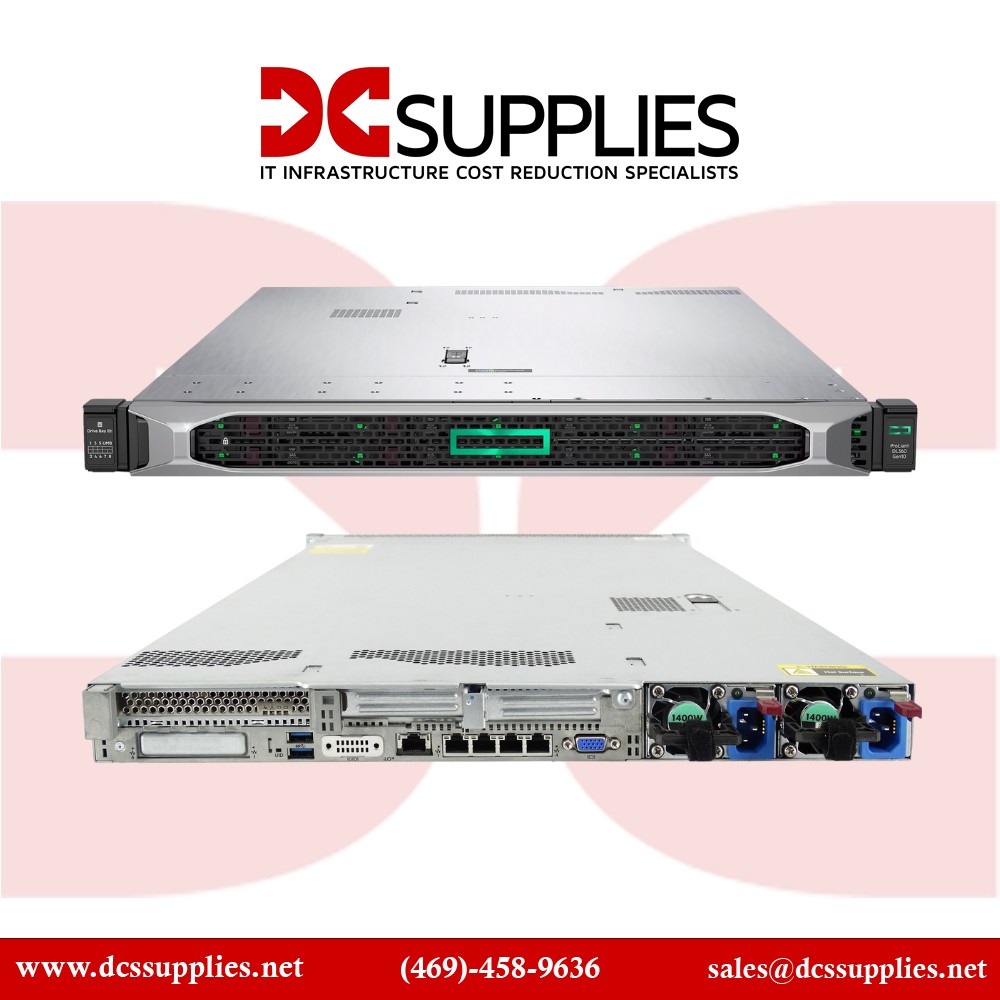

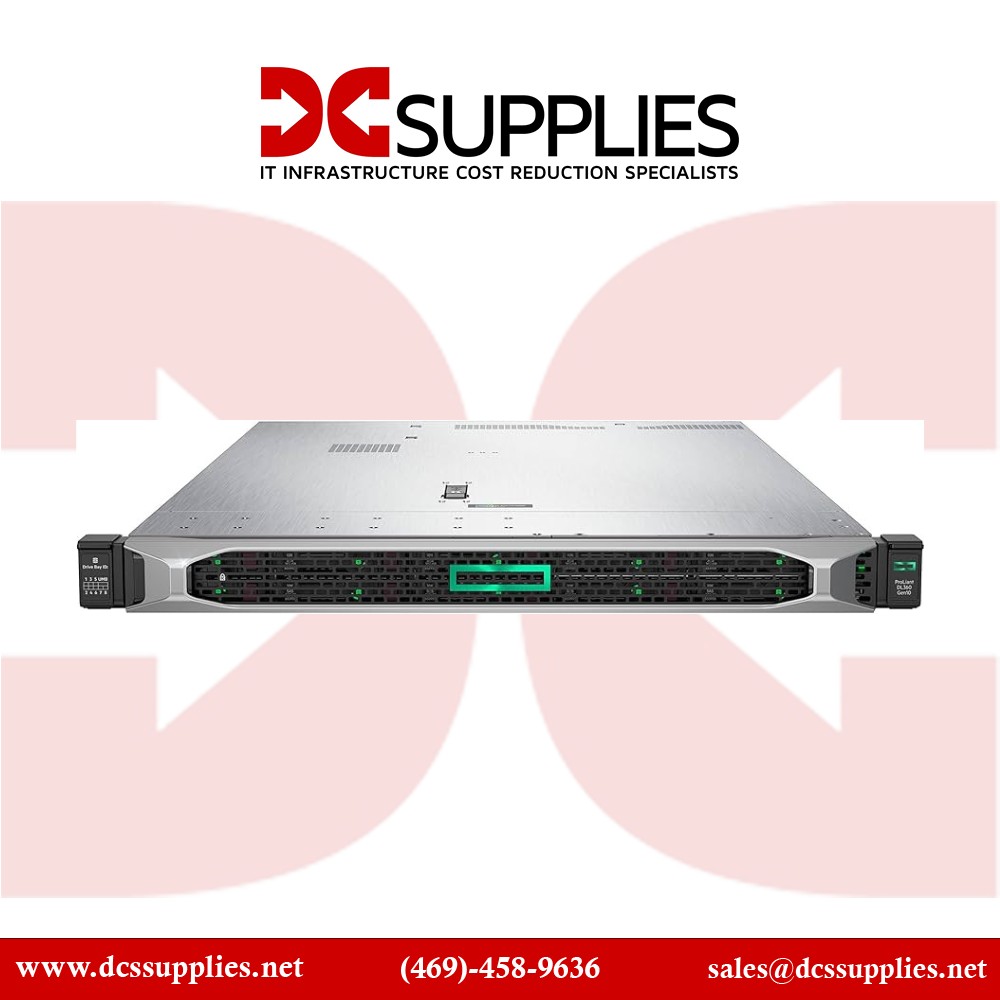

HPE 874461-S01 ProLiant DL360 Gen10 Rack Server

New

HPE 874461-S01 ProLiant DL360 Gen10 Rack...

×




  • New

Detailed Specifications

HPE 874461-S01

ProLiant DL360 Gen10 1U Rack Server (1× Xeon Gold 5118, 32 GB RAM)

The HPE 874461‑S01 DL360 Gen10 is a high-density, highly capable 1U rack server featuring a 12-core Xeon Gold 5118 CPU and 32 GB of DDR4 ECC memory Ideal for virtualization, business databases, and compute-heavy applications, this Smart Buy configuration delivers enterprise-class performance while maintaining a compact rack footprint.

Features

Equipped with Intel’s Xeon Gold 5118 (12C/24T, 2.3 GHz base clock, 3.2 GHz Turbo) on the reliable C621 chipset, this server tackles parallel compute workloads with ease The integrated Smart Array P408i‑a RAID controller manages up to eight hot-swappable SFF drives,

Advanced Options

allowing flexible storage setups from high-speed SSDs to larger-capacity HDDs . Networking is robust: quad gigabit LOM ports plus support for optional expansion cards meet diverse connectivity needs, while iLO 5 simplifies remote monitoring and management.

Product Key Features

  •  Intel Xeon Gold 5118 – 12 cores, 24 threads @ 2.3 GHz (up to 3.2 GHz Turbo)

  •  32 GB DDR4‑2666 MHz ECC RDIMM (2× 16 GB, expandable to 768 GB)

  •  HPE Smart Array P408i‑a RAID controller with 2 GB FBWC – supports RAID 0/1/5/6/10/50/60

  •  8× hot‑swap 2.5″ SFF bays (SAS/SATA/NVMe capable)

  •  4×1 GbE LOM + FlexibleLOM/PCIe expansion, integrated iLO 5 remote management

  •  Dual 800 W Platinum hot‑plug PSUs for redundant, efficient power delivery

Reliability & Performance

Designed for continuous operation, this DL360 Gen10 sports hot-plug redundant PSUs, drives, DIMMs, and fans. It supports up to two CPUs and 768 GB of HPE SmartMemory across 12 DIMM slots. Built to enterprise standards—including AES, FIPS, ENERGY STAR, and ASHRAE A3/A4 certification—it offers high efficiency and excellent thermal control in a compact chassis .

Key Features (Bullet List)

    • Intel Xeon Gold 5118 CPU (12C/24T; 2.3 GHz / 3.2 GHz Turbo)

    • 32 GB DDR4‑2666 ECC RDIMM (2× 16 GB, expandable to 768 GB)

    • HPE Smart Array P408i‑a RAID controller with 2 GB FBWC

    • Eight hot-swap 2.5″ SFF drive bays

    • Embedded 4×1 GbE LOM, PCIe / FlexibleLOM expansion, iLO 5

    • Dual 800 W Platinum hot-plug PSUs (redundancy)

SpecificationDetails
Model Number 874461‑S01
Chassis HPE ProLiant DL360 Gen10, 1U rack
Processor Installed Intel Xeon Gold 5118 (12 cores / 24 threads, 2.3 GHz base / 3.2 GHz Turbo)
Max CPUs Supported 2 sockets
L3 Cache 16.5 MB per CPU
Memory Installed 32 GB (2×16 GB DDR4‑2666 ECC RDIMM)
Max Memory Capacity 768 GB across 12 DIMM slots
Storage Controller HPE Smart Array P408i‑a with 2 GB FBWC
Drive Bays 8× hot-swappable 2.5″ SFF bays
Networking 4× 1 GbE LOM; FlexibleLOM / PCIe slots for NIC upgrades
Remote Management Embedded iLO 5
Power Supplies 2× 800 W Platinum hot-plug (redundant)
Expansion Slots 1× FlexibleLOM, 2× PCIe 3.0
Fans 5× hot-plug redundant fans
Dimensions (H×W×D) 1.7″ × 17.1″ × 27.8″ (4.3 × 43.5 × 70.7 cm)
Weight ~13.0 kg (28.7 lb)
Compliance AES, FIPS 140‑2, ENERGY STAR 2.1, ASHRAE A3/A4, RoHS, WEEE
