Detailed Specifications

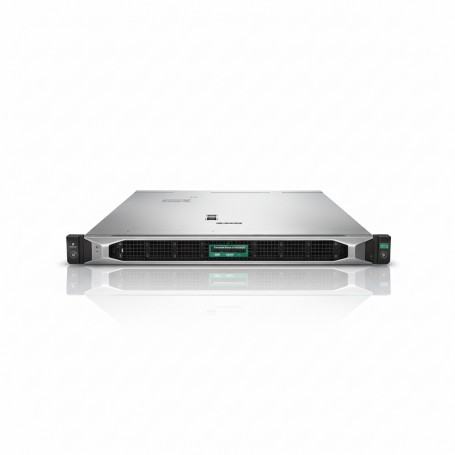

ProLiant DL360 Gen10 1U Rack Server (1× Xeon Gold 5118, 32 GB RAM)
The HPE 874461-S01 DL360 Gen10 is a high-density, highly capable 1U rack server featuring a 12-core Xeon Gold 5118 CPU and 32 GB of DDR4 ECC memory Ideal for virtualization, business databases, and compute-heavy applications, this Smart Buy configuration delivers enterprise-class performance while maintaining a compact rack footprint.
Features
Equipped with Intel's Xeon Gold 5118 (12C/24T, 2.3 GHz base clock, 3.2 GHz Turbo) on the reliable C621 chipset, this server tackles parallel compute workloads with ease The integrated Smart Array P408i-a RAID controller manages up to eight hot-swappable SFF drives,
Advanced Options
allowing flexible storage setups from high-speed SSDs to larger-capacity HDDs . Networking is robust: quad gigabit LOM ports plus support for optional expansion cards meet diverse connectivity needs, while iLO 5 simplifies remote monitoring and management.
Product Key Features
Intel Xeon Gold 5118 - 12 cores, 24 threads @ 2.3 GHz (up to 3.2 GHz Turbo)
32 GB DDR4-2666 MHz ECC RDIMM (2× 16 GB, expandable to 768 GB)
HPE Smart Array P408i-a RAID controller with 2 GB FBWC - supports RAID 0/1/5/6/10/50/60
8× hot-swap 2.5″ SFF bays (SAS/SATA/NVMe capable)
4×1 GbE LOM + FlexibleLOM/PCIe expansion, integrated iLO 5 remote management
Dual 800 W Platinum hot-plug PSUs for redundant, efficient power delivery
Reliability & Performance
Designed for continuous operation, this DL360 Gen10 sports hot-plug redundant PSUs, drives, DIMMs, and fans. It supports up to two CPUs and 768 GB of HPE SmartMemory across 12 DIMM slots. Built to enterprise standards×including AES, FIPS, ENERGY STAR, and ASHRAE A3/A4 certification×it offers high efficiency and excellent thermal control in a compact chassis .
Key Features (Bullet List)
Intel Xeon Gold 5118 CPU (12C/24T; 2.3 GHz / 3.2 GHz Turbo)
32 GB DDR4-2666 ECC RDIMM (2× 16 GB, expandable to 768 GB)
HPE Smart Array P408i-a RAID controller with 2 GB FBWC
Eight hot-swap 2.5″ SFF drive bays
Embedded 4×1 GbE LOM, PCIe / FlexibleLOM expansion, iLO 5
Dual 800 W Platinum hot-plug PSUs (redundancy)
| Specification | Details |
|---|
| Model Number | 874461-S01 |
| Chassis | HPE ProLiant DL360 Gen10, 1U rack |
| Processor Installed | Intel Xeon Gold 5118 (12 cores / 24 threads, 2.3 GHz base / 3.2 GHz Turbo) |
| Max CPUs Supported | 2 sockets |
| L3 Cache | 16.5 MB per CPU |
| Memory Installed | 32 GB (2×16 GB DDR4-2666 ECC RDIMM) |
| Max Memory Capacity | 768 GB across 12 DIMM slots |
| Storage Controller | HPE Smart Array P408i-a with 2 GB FBWC |
| Drive Bays | 8× hot-swappable 2.5″ SFF bays |
| Networking | 4× 1 GbE LOM; FlexibleLOM / PCIe slots for NIC upgrades |
| Remote Management | Embedded iLO 5 |
| Power Supplies | 2× 800 W Platinum hot-plug (redundant) |
| Expansion Slots | 1× FlexibleLOM, 2× PCIe 3.0 |
| Fans | 5× hot-plug redundant fans |
| Dimensions (H×W×D) | 1.7″ × 17.1″ × 27.8″ (4.3 × 43.5 × 70.7 cm) |
| Weight | ~13.0 kg (28.7 lb) |
| Compliance | AES, FIPS 140-2, ENERGY STAR 2.1, ASHRAE A3/A4, RoHS, WEEE |
